Certification Number | ZC12-22060340 |
|---|
Name | Yubii Home |
|---|

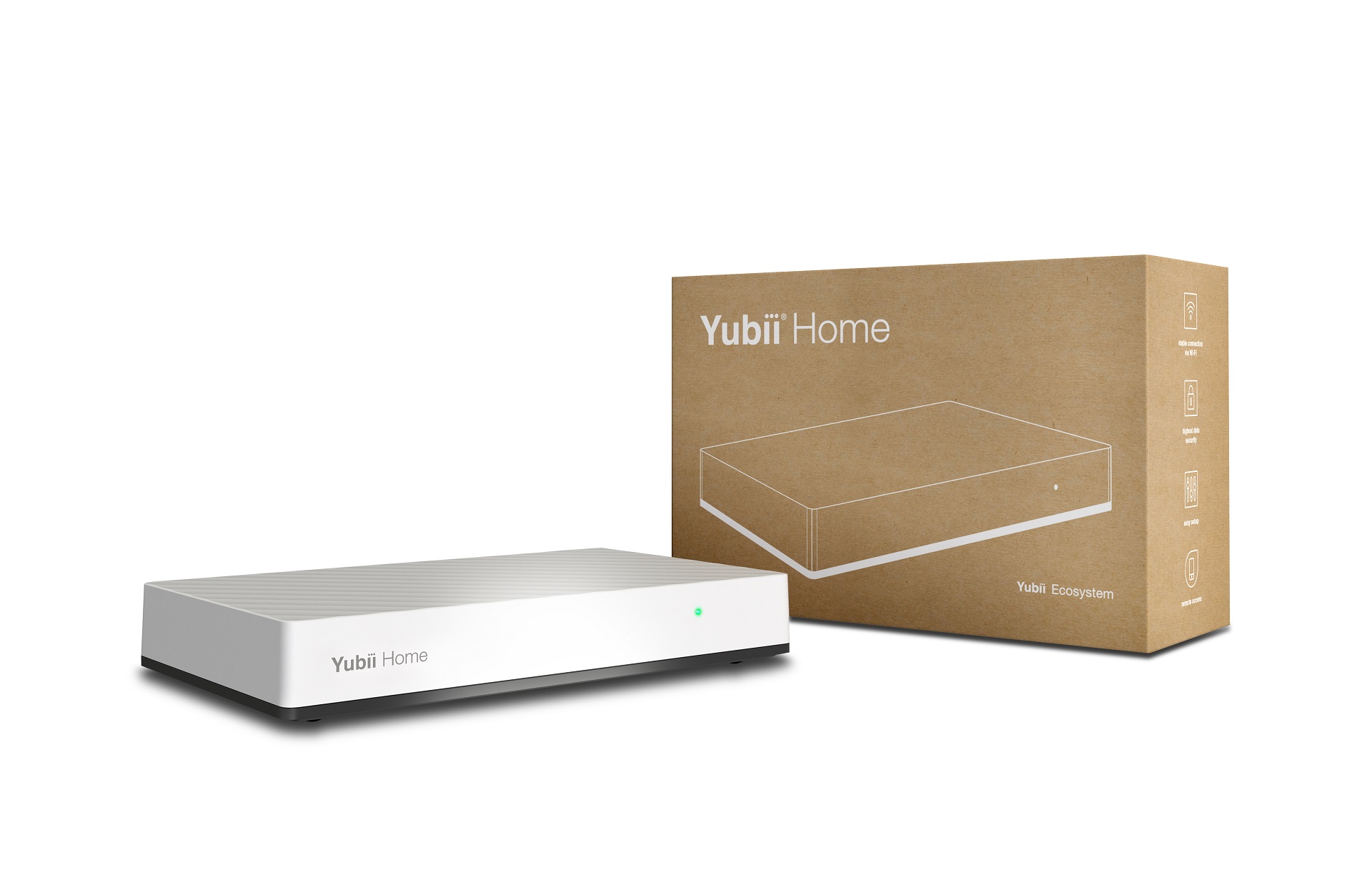

Short Description | Yubii Home is the core element of the Yubii smart mome system. It enables the integration of smart home devices into a single system to provide convenient control and a powerful automation platform. The gateway is now even more secure, reliable, and versatile. |
|---|
Long Description | Yubii Home is the core element of the Yubii smart mome system. It enables the integration of smart home devices into a single system to provide convenient control and a powerful automation platform. The gateway is now even more secure, reliable, and versatile.
- Provides a reliable foundation for Yubii smart home system,
- Capable of controlling compatible devices using the following radio standards:
- Nice FLOR, OPERA and PLN2+,
- Elero PLN2,
- Z-Wave (700 series),
- Wi-Fi – 2.4 GHz (802.11 b/g/n).
- Allows to add up to:
- 40 Nice devices (recommended),
- 40 Z-Wave devices (recommended),
- 1 IP camera,
- 20 scenes,
- 10 Quick Apps,
- 5 plugins.
- No Internet cable required, works on Wi-Fi,
- Modern interface designed for ease of use,
- Enhanced and convenient scene editor,
- Support for more advanced apps and drivers,
- May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers. |
|---|
Brand | FIBARO |
|---|
Product Identifier | YH-001 |
|---|
Product Line | Home Center |
|---|
OEM Version | HW: 1 FW: 7.14 |
|---|
Hardware Platform | EFR32Z |
|---|
Z-Wave Version | 7.14.2 |
|---|
Library Type | CONTROLLER_BRIDGE |
|---|
Device Type | Gateway |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x010F |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x1000 |
|---|
User Icon | 0x0500 |
|---|
Installer Icon | 0x0500 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | All Controllers, Computer Controller Interfaces |
|---|
Countries / Regions | Taiwan, Singapore, Republic of Korea, Thailand, Macao |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_NODE_PROVISIONING | Node Provisioning | 0x78 | 1 | COMMAND_CLASS_NETWORK_MANAGEMENT_INSTALLATION_MAINTENANCE_V2 | Network Management Installation and Maintenance V2 | 0x67 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_INCLUSION_CONTROLLER | Inclusion Controller | 0x74 | 1 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TIME | Time | 0x8A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC-16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_MULTI_CMD | Multi Command | 0x8F | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_NETWORK_MANAGEMENT_PROXY_V2 | Network Management Proxy V2 | 0x52 | 2 | COMMAND_CLASS_NETWORK_MANAGEMENT_INCLUSION_V3 | Network Management Inclusion V3 | 0x34 | 3 | COMMAND_CLASS_NETWORK_MANAGEMENT_BASIC_V2 | Network Management Basic Node V2 | 0x4D | 2 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SOUND_SWITCH | Sound Switch | 0x79 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_MANUFACTURER_PROPRIETARY | Manufacturer Proprietary | 0x91 | 1 | COMMAND_CLASS_SENSOR_ALARM | Sensor Alarm | 0x9C | 1 | COMMAND_CLASS_NO_OPERATION | No Operation | 0x00 | 1 | COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4 | Thermostat Fan Mode V4 | 0x44 | 4 | COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2 | Thermostat Operating State V2 | 0x42 | 2 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_INCLUSION_CONTROLLER | Inclusion Controller | 0x74 | 1 | COMMAND_CLASS_METER_V6 | COMMAND_CLASS_METER_V6 | | 0 | COMMAND_CLASS_THERMOSTAT_FAN_MODE_V5 | COMMAND_CLASS_THERMOSTAT_FAN_MODE_V5 | | 0 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_CLOCK | Clock | 0x81 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_BATTERY_V2 | COMMAND_CLASS_BATTERY_V2 | | 0 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC-16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi Channel V4 | 0x60 | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Multilevel Sensor V11 | 0x31 | 11 | COMMAND_CLASS_PROTECTION_V2 | Protection V2 | 0x75 | 2 | COMMAND_CLASS_SWITCH_BINARY_V2 | Binary Switch V2 | 0x25 | 2 | COMMAND_CLASS_SWITCH_COLOR_V3 | Color Switch V3 | 0x33 | 3 | COMMAND_CLASS_DOOR_LOCK_V4 | Door Lock V4 | 0x62 | 4 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Multilevel Switch V4 | 0x26 | 4 | COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2 | Thermostat Fan State V2 | 0x45 | 2 | COMMAND_CLASS_THERMOSTAT_MODE_V3 | Thermostat Mode V3 | 0x40 | 3 | COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 | Thermostat Setpoint V3 | 0x43 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_SENSOR_BINARY_V2 | Binary Sensor V2 | 0x30 | 2 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SCHEDULE_V2 | Schedule V2 | 0x53 | 2 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_SCENE_CONTROLLER_CONF | Scene Controller Conf | 0x2D | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | |
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 1 | Lifeline | 0x0001 | "Lifeline" reports the device status and allows for assigning single device only (main controller by default). |
|
|---|
Texts | ID | Description | Value |
|---|
3 | Controller Learn Mode | 9.1: ADDING/REMOVING TO/FROM EXISTING Z-WAVE
NETWORK
This gateway can be added to an existing Z-Wave network only if no
Z-Wave devices are added to it.
1. Start adding/removing procedure on the primary controller (according
to its manual).
2. Go to [gearwheel image] > Z-Wave.
3. Under Start Learn Mode click Start
4. If you are prompted for the PIN, you will find it on the bottom of the
gateway and on the box. | 10 | Controller Replication | Copying information from this controller to the secondary
controller
1. Start adding procedure according to chapter “Adding using Inclusion
Mode” on page 7.
2. Start Learn Mode on the secondary controller (according to its
manual).
3. After couple of minutes both controllers will have the same network
information. | 9 | Capability Rediscovery | 8: REDISCOVERING Z-WAVE DEVICES
Rediscovery – the process of reading the device’s capabilities after altering
them.
1. Open the Configuration Interface.
2. Go to [gearwheel image] > Devices.
3. Click the device to expand it.
4. Go to Device configuration tab.
5. Under Device reconfiguration click Reconfigure device.
6. If the device is battery powered, wake it up manually or wait for next
automatic wake up. | 23 | Controller Classic Inclusion | 3.1: ADDING USING INCLUSION MODE
To add the device to the Z-Wave network manually:
1. Open the Configuration Interface.
2. Go to [gearwheel image] > Devices.
3. Click ["+" image].
4. Select Z-Wave Device.
5. There are few available settings:
• NWI - Network-Wide Inclusion – enabling allows for adding devices
outside the direct range of the gateway,
• Add in S2 Security mode if device supports it,
• Allow inclusion only in near proximity (less than 2 meters).
6. Click Start adding.
7. Follow adding procedure for the device you want to add (according to
its manual).
8. If you are adding in Security S2 Authenticated and the device is not on
the Provisioning List (see chapter 5 on page 10):
Input the PIN code (the underlined part of the DSK) and click Send.
9. The device will be added within few minutes. | 8 | Where to find S2 DSK on product | In case you need full DSK code of the gateway you will find it on the label under the device. | 11 | Controller SmartStart Inclusion | 3.2: ADDING USING SMARTSTART
SmartStart enabled devices can be added into a Z-Wave network by
entering the Z-Wave DSK Code present on the product. The devices will
be automatically added to the Z-Wave network using secure connection
encrypted with Z-Wave S2 security framework.
To add the device to the Z-Wave network using SmartStart:
1. Open the Configuration Interface.
2. Go to [gearwheel image] > Z-Wave > SmartStart.
3. Click Add DSK.
4. Enter the full DSK string code you have received with your device.
5. For advanced users: In Choose Security levels select which Security
keys will be granted to the joining node (available: S2 Unauthenticated,
S2 Authenticated, S2 Access Control, S0).
6. Leave the Only S2 classic inclusion unchecked.
7. Power the device and it will be added automatically within 10 minutes. | 24 | Controller Classic Exclusion | 4.1: REMOVING DEVICES USING EXCLUSION MODE
To remove the device from the this or other Z-Wave network:
1. Open the Configuration Interface.
2. Go to [gearwheel image] > Devices.
3. Click ["-" image].
4. Select Z-Wave Device.
5. Follow removing procedure on the device (according to its manual). | 25 | Controller Provisioning List | 5: MANAGING PROVISIONING LIST
The Provision List is used to add Z-Wave devices using SmartStart or
bootstrap classic S2 inclusion.
5.1: ADDING DEVICES TO PROVISIONING LIST
1. Open the Configuration Interface.
2. Go to [gearwheel image] > Z-Wave > SmartStart.
3. Click Add DSK.
4. Enter the full DSK string code you have received with your device.
5. For advanced users: In Choose Security levels select which Security
keys will be granted to the joining node (available: S2 Unauthenticated,
S2 Authenticated, S2 Access Control, S0).
6. If the device should not be automatically included when powered, but
only after the classic inclusion, check the Only S2 classic inclusion
setting.
7. Click Add.
5.2: EDITING DEVICES IN PROVISIONING LIST
1. Open the Configuration Interface.
2. Go to [gearwheel image] > Z-Wave > SmartStart.
3. Click [pen image] next to the device you want to edit.
4. You can change the Security levels.
5. Save.
5.3: REMOVING DEVICES FROM PROVISIONING LIST
1. Open the Configuration Interface.
2. Go to [gearwheel image] > Z-Wave > SmartStart.
3. Click [trash can image] next to the device you want to remove.
4. Click Delete.
5. The device will be removed from the list, but if it was already added to
the Z-Wave network, you must perform standard removing procedure
or reset the device. | 5 | Factory Reset Procedure | 10: RESETTING TO FACTORY DEFAULTS
10.1: RESETTING SYSTEM TO FACTORY DEFAULTS
! Caution! The whole configuration will be removed and
lost if not backed up.
This feature allows you to restore the whole system to factory settings. It
means the factory software version will be restored and all data from the
system A and B will be deleted (users, devices, scenes etc.).
If the gateway is set as Z-Wave secondary controller use this procedure
only when the primary controller is missing or otherwise inoperable.
1. Open the Configuration Interface.
2. In the top right corner click user name
3. Choose Recovery Mode from the menu.
4. Confirm.
5. Wait for the system to reboot, the LED indicator will be pulsing red.
6. When the LED indicator turns solid red, refresh the browser tab.
7. Click Factory Reset under Network Status section.
8. Check “Yes, I’m sure and I know what I’m doing” checkbox.
9. Confirm.
10.2: RESETTING Z-WAVE TO FACTORY DEFAULTS
Resetting the Z-Wave network removes all the Z-Wave devices from the
gateway’s memory, but the other data remains unchanged. Scenes that
used Z-Wave devices will not work anymore.
1. Open the Configuration Interface.
2. Go to [gearwheel image] > Z-Wave.
3. Under Reset Z-Wave click Reset.
4. Confirm. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption | Electric meter | Export | Electric Meter Production | Gas meter | Import | Gas Meter Consumption | Gas meter | Export | Gas Meter Production | Water meter | Import | Water Meter Consumption | Water meter | Export | Water Meter Production | Heating meter | Import | Heating Meter Consumption | Heating meter | Export | Heating Meter Production | Cooling meter | Import | Cooling Meter Consumption | Cooling meter | Export | Cooling Meter Production |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
