Product Recognition

Certification Number

ZC12-22080348

Name

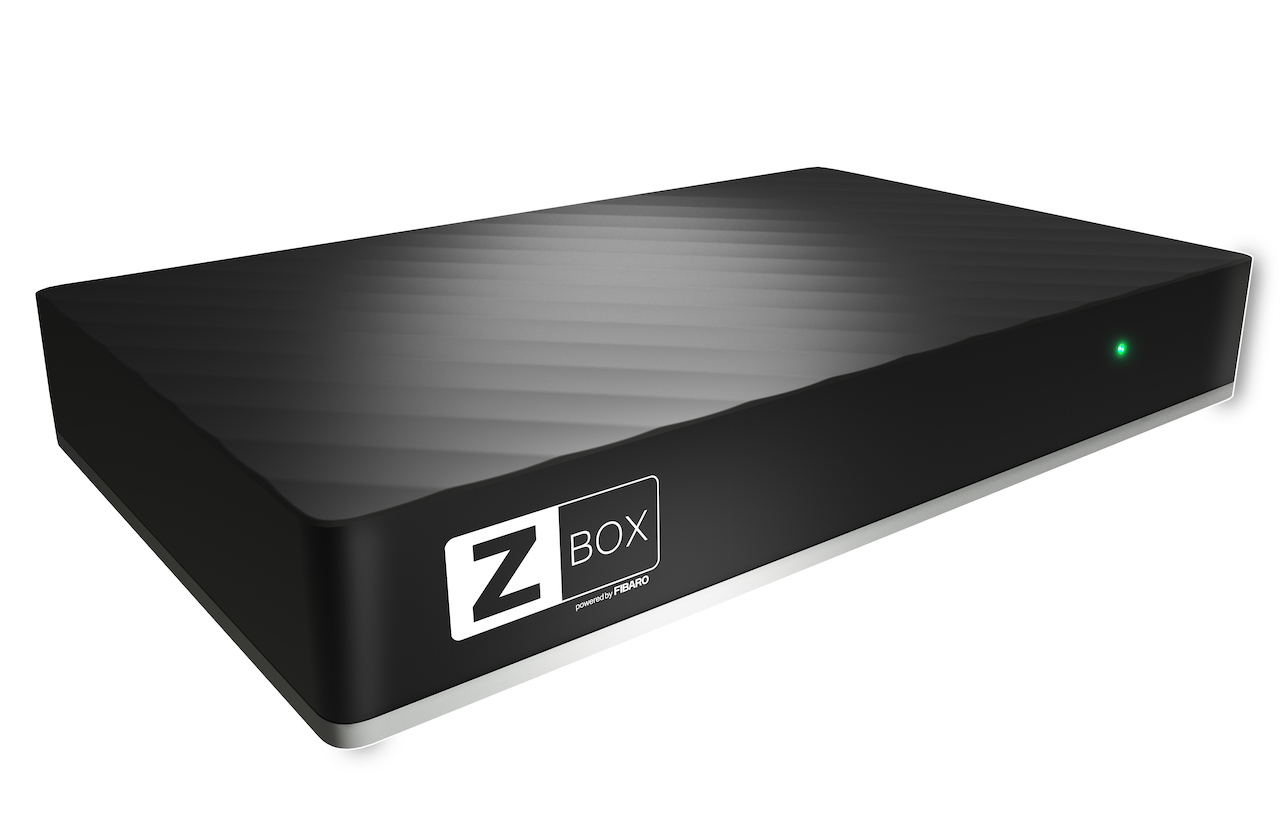

Z-Box Hub

Short Description

The Z-Box Hub is a mature Z-Wave™ ecosystem equipped with the latest tech to enhance your automation experience.

Long Description

- It’s all yours, forever. Keep your devices and scenes private with local access to your smart home. No contracts, no fees. - Z-Wave™ centric. Choose from thousands of innovative Z-Wave™ devices that just work. - Security first. Implement the latest S2 Authenticated protocol and SmartStart for a safe and reliable mesh network. Live progress window to track Z-Wave™ activity. - Real automation. Use the intuitive scene creator to make simple rules or execute complex multi-conditional scripts with a visual block-building tool. - Advanced access. Change settings for any Z-Wave™ device straight from the interface. Perform OTA firmware updates on your Z-Wave™ products and create associations easily. SPECS: - Z-WAVE™ CHIP: 700 Series - Z-WAVE™ FREQUENCY: 908.42 MHZ - Wi-Fi: 802.11 b/g/n - POWER SUPPLY: 5 V DC, 1 A (included) - POWER CONNECTION: USB Micro B - OPERATING TEMPERATURE: 32⁰ - 104⁰ F - OPERATING HUMIDITY: up to 75% - DIMENSIONS: 7” x 4.3” x 1.2” - INSTALLATION AND USE: indoor only

Brand

Zooz

Product Identifier

ZZB97

Product Line

Z-Box

OEM Version

HW: 1 FW: 7.14

Hardware Platform

EFR32Z

Z-Wave Version

7.14.2

Library Type

CONTROLLER_BRIDGE

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x010F

Product Type ID

0x0005

Product ID

0x1000

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

United States of America, Colombia, Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Mexico, Cayman Islands, Ecuador, Guatemala, Haiti, Honduras, Jamaica, Nicaragua, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands

Supported Command Classes

Controlled Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_SOUND_SWITCH	Sound Switch	0x79	1
COMMAND_CLASS_CONFIGURATION_V4	Configuration V4	0x70	4
COMMAND_CLASS_MANUFACTURER_PROPRIETARY	Manufacturer Proprietary	0x91	1
COMMAND_CLASS_SENSOR_ALARM	Sensor Alarm	0x9C	1
COMMAND_CLASS_NO_OPERATION	No Operation	0x00	1
COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4	Thermostat Fan Mode V4	0x44	4
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2	Thermostat Operating State V2	0x42	2
COMMAND_CLASS_USER_CODE	User Code	0x63	1
COMMAND_CLASS_INCLUSION_CONTROLLER	Inclusion Controller	0x74	1
COMMAND_CLASS_METER_V6	COMMAND_CLASS_METER_V6		0
COMMAND_CLASS_THERMOSTAT_FAN_MODE_V5	COMMAND_CLASS_THERMOSTAT_FAN_MODE_V5		0
COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3	Association Group Information (AGI) V3	0x59	3
COMMAND_CLASS_INDICATOR_V3	Indicator V3	0x87	3
COMMAND_CLASS_CLOCK	Clock	0x81	1
COMMAND_CLASS_APPLICATION_STATUS	Application Status	0x22	1
COMMAND_CLASS_BATTERY_V2	COMMAND_CLASS_BATTERY_V2		0
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5	Firmware Update Meta Data V5	0x7A	5
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3	Multi Channel Association V3	0x8E	3
COMMAND_CLASS_SECURITY_2	Security 2	0x9F	1
COMMAND_CLASS_CRC_16_ENCAP	CRC-16 Encapsulation	0x56	1
COMMAND_CLASS_SECURITY	Security 0	0x98	1
COMMAND_CLASS_MULTI_CHANNEL_V4	Multi Channel V4	0x60	4
COMMAND_CLASS_SENSOR_MULTILEVEL_V11	Multilevel Sensor V11	0x31	11
COMMAND_CLASS_PROTECTION_V2	Protection V2	0x75	2
COMMAND_CLASS_SWITCH_BINARY_V2	Binary Switch V2	0x25	2
COMMAND_CLASS_SWITCH_COLOR_V3	Color Switch V3	0x33	3
COMMAND_CLASS_DOOR_LOCK_V4	Door Lock V4	0x62	4
COMMAND_CLASS_SWITCH_MULTILEVEL_V4	Multilevel Switch V4	0x26	4
COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2	Thermostat Fan State V2	0x45	2
COMMAND_CLASS_THERMOSTAT_MODE_V3	Thermostat Mode V3	0x40	3
COMMAND_CLASS_THERMOSTAT_SETPOINT_V3	Thermostat Setpoint V3	0x43	3
COMMAND_CLASS_TRANSPORT_SERVICE_V2	Transport Service V2	0x55	2
COMMAND_CLASS_WAKE_UP_V2	Wake Up V2	0x84	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_ASSOCIATION_V2	Association V2	0x85	2
COMMAND_CLASS_SENSOR_BINARY_V2	Binary Sensor V2	0x30	2
COMMAND_CLASS_NOTIFICATION_V8	Notification V8	0x71	8
COMMAND_CLASS_BASIC_V2	Basic V2	0x20	2
COMMAND_CLASS_VERSION_V3	Version V3	0x86	3
COMMAND_CLASS_SCHEDULE_V2	Schedule V2	0x53	2
COMMAND_CLASS_CENTRAL_SCENE_V3	Central Scene V3	0x5B	3
COMMAND_CLASS_SCENE_ACTIVATION	Scene Activation	0x2B	1
COMMAND_CLASS_SCENE_CONTROLLER_CONF	Scene Controller Conf	0x2D	1
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2	Manufacturer Specific V2	0x72	2

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Features

Association Groups

Texts

ID	Description	Value
8	Where to find S2 DSK on product	The full DSK code for your Z-Box Hub can be found on the label on the back of the device.
25	Controller Provisioning List	Edit a device in the Provisioning List 1. In your Z-Box online interface, click the gear icon and go to Z-Wave > SmartStart. 2. Locate the device you’d like to edit and click the pencil icon next to it. 3. Change the Security level preferences as needed. 4. Click Save.
5	Factory Reset Procedure	Here’s how to reset your Z-Box Hub: 1. In your Z-Box online interface and click your username in the top right corner. 2. Select Recovery Mode from the menu and click Confirm. 3. The system will start rebooting, observe the hub’s LED indicator which should be pulsing red. 4. Once the LED indicator turns solid red, please refresh the online interface site in your browser. 5. Go to the Network Status section and click Factory Reset. 6. Check the checkbox next to the “Yes, I’m sure and I know what I’m doing” disclaimer. 7. Click Confirm.
9	Capability Rediscovery	1. In your Z-Box online interface, click the gear icon and go to Devices. 2. A list with all of your devices will display, click on the selected device you want to remove the association from and enter the detailed view. 3. Go to the Device configuration tab. 4. Go to Device reconfiguration and click Reconfigure device. 5. If your device is battery powered, wake it up manually for the association to finalize or wait for next automatic wake-up. You can find the manual wake-up procedure in the user manual for your product.
23	Controller Classic Inclusion	1. In your Z-Box online interface, click the gear icon and go to Devices. 2. Click the + icon and select Z-Wave Device. 3. Select the option that best fits your preference: • NWI (Network Wide Inclusion) to add a device using network repeaters if it’s outside of the hub’s direct range (recommended) • S2 security (select only if your device supports S2 unauthenticated or S2 authenticated SmartStart security) • Near proximity inclusion (select only if the device is located in the same room as the hub) 4. Click Start adding. 5. Follow the manufacturer’s instructions to activate the device for inclusion. This information can be found in the product’s user manual. 6. If you’re adding a device that supports SmartStart, enter the 5-digit PIN code and click Send. 7. The device will enroll in the network and will appear on the device list shortly after.
24	Controller Classic Exclusion	Use this method to remove a device from your Z-Box hub if it’s still connected and responsive in the network. Use these instructions to reset your Z-Wave™ device if you’re having problems adding it to the hub. Follow these steps to remove the device: 1. In your Z-Box online interface, click the gear icon and go to Devices. 2. Click the – [minus] icon and select Z-Wave Device. 3. Follow the manufacturer’s instructions to activate the device for exclusion (removing the device from the network). This information can be found in the product’s user manual.
3	Controller Learn Mode	1. Once your host network is inclusion mode, open your Z-Box online interface, click the gear icon and go to Z-Wave. 2. Go to Start Learn Mode and click Start. 3. You may need to enter a secure PIN code during inclusion – find it printed on the label on the bottom part of your Z-Box Hub.
10	Controller Replication	1. In your Z-Box online interface, click the gear icon and go to Devices. 2. Click the + icon and select Z-Wave Device. 3. Select the option that best fits your preference: • NWI (Network Wide Inclusion) to add a device using network repeaters if it’s outside of the hub’s direct range (recommended) • S2 security (select only if your device supports S2 unauthenticated or S2 authenticated SmartStart security) • Near proximity inclusion (select only if the device is located in the same room as the hub) 4. Click Start adding. 5. Follow the manufacturer’s instructions to activate the hub for inclusion by starting the Learn Mode. This information can be found in the product’s user manual. 6. Wait a few minutes for the network information to sync between both controllers.
11	Controller SmartStart Inclusion	1. In your Z-Box online interface, click the gear icon and go to Z-Wave™ > SmartStart. 2. Click Add DSK. 3. Enter the full DSK string code located on your device or in the packaging. If you can’t find it, double check if your device supports SmartStart and refer to the manual to locate the full DSK code (not just the 5-digit PIN). 4. Under Choose Security levels select the level of security you’d like the device to be assigned by the hub (S2 Unauthenticated, S2 Authenticated, S2 Access Control, or S0). S2 Authenticated is recommended for any device that supports SmartStart. 5. Leave the Only S2 classic inclusion option unchecked. 6. Power your Z-Wave™ device and it will be added automatically within 10 minutes.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
