Product Recognition
Certification Number	ZC10-15060008

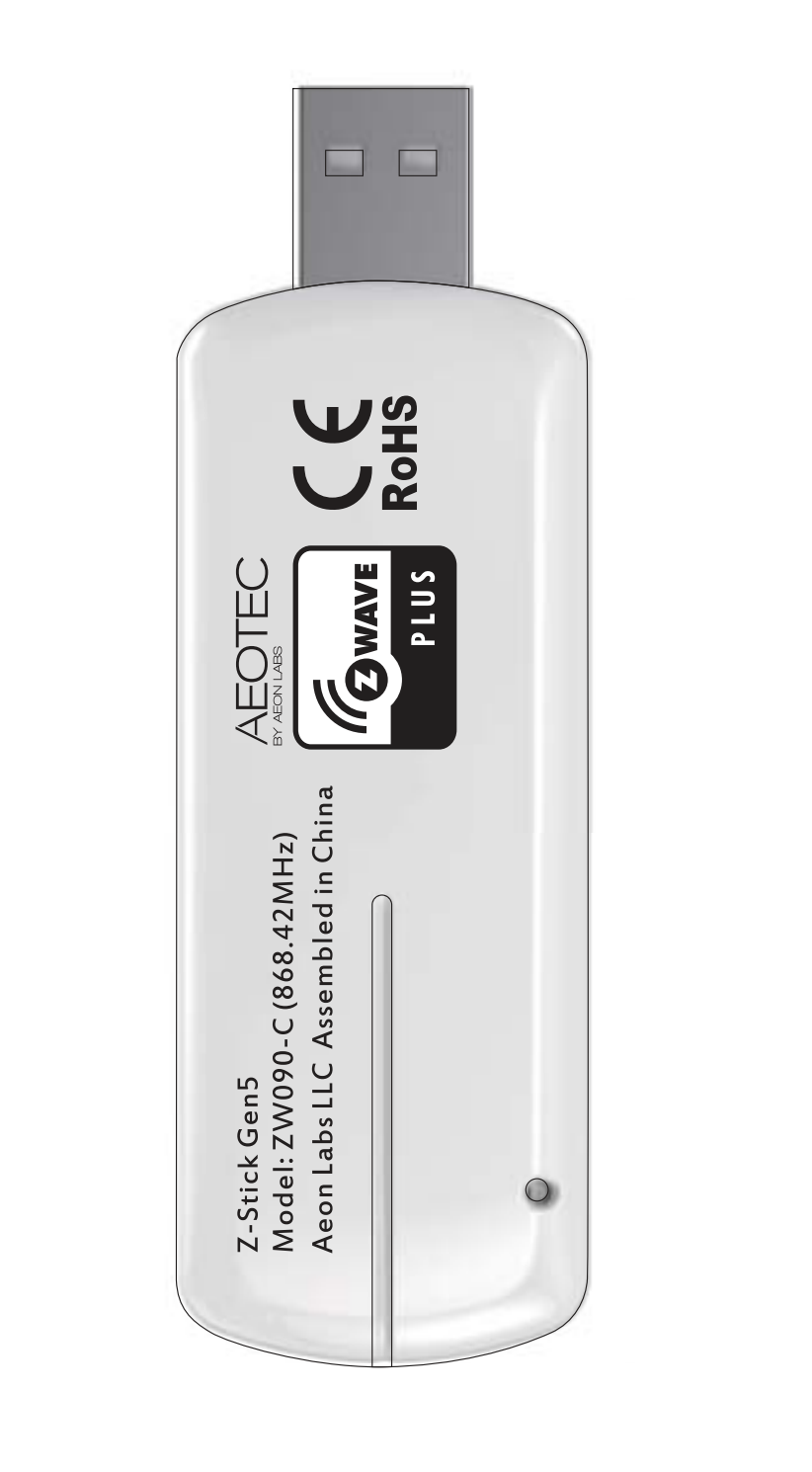

Name	Z-Stick Gen5
Short Description	Aeotec Z-Stick Gen5 is a USB controller.
Long Description	Aeotec Z-Stick Gen5 is a USB controller. When connected to a host controller via USB, it enables the host controller to take part in the Z-Wave network. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices.
Brand	Aeotec
Product Identifier	ZW090-C
OEM Version	HW: 90
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC_NOREP
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x086
Product Type ID	0x0001
Product ID	0x005A
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Computer Controller Interfaces
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Z Stick Gen5 manual 1.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 242 Enable/disable Security network This parameter is used to enable/disable security network. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable. 81 Enable/disable the LED indicator This parameter is used to enable/disable the LED indicator. 0 1 0 0 1 From To Description 1 1 Enable. 0 0 Disable. 220 Configure the RF power level This parameter is used to configure the RF power level. Note: There are 10 levels can be configured for the RF power level. Value=1, which is the minimum level. value =10, which is the maximum level. 0 1 0 0 10 From To Description 1 10 There are 10 levels can be configured for the RF power level 252 Enable/disable the configuration parameters to be locked. This parameter is used to Enable/disable the configuration parameters to be locked. (0== disable, 1== enable). 0 1 0 0 0 From To Description 0 0 Disable. 1 1 Enable. 255 Reset the configuration parameter to default factory setting This parameter is used to reset all configuration parameter to default factory setting. 0 1 0 0 0 From To Description 1 1 Resets all configuration parameters to default setting.
Texts	ID Description Value 23 Controller Inclusion Plug the Z-Stick into USB port of your host Controller and then click the “Inclusion” button on your PC/host Controller application. 3 Learn Mode (adding another controller) Plug the Z-Stick into USB port of your host Controller and then click the “Learn” button on your PC/host Controller application. 5 Factory Reset Use this procedure only in the event that the primary controller is missing or otherwise inoperable. Press and hold the Action Button on Z-Stick for 20 seconds and then release. 4 Device Wake-Up N/A 24 Controller Exclusion Plug the Z-Stick into USB port of your host Controller and then click the “Exclusion” button on your PC/host Controller application. 6 Additional Special Features Support Over The Air for firmware Upgrade.
Supports NWI	Yes
Supports Explorer Frames	Yes
