Product Recognition | |
|---|
Certification Number | ZC10-19116788 |
|---|

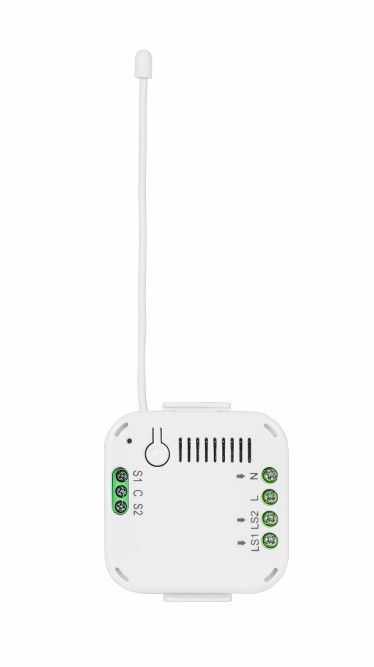

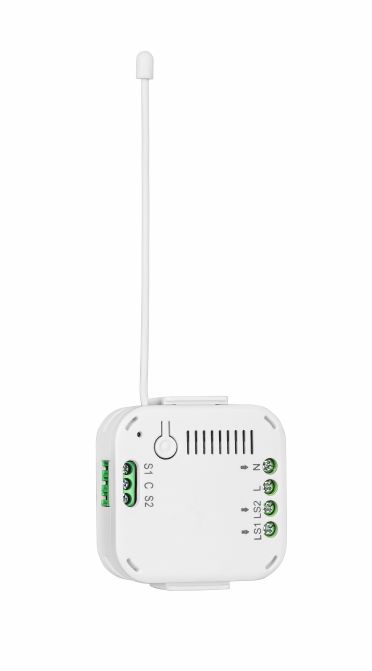

Name | Z-Wave 230V relay module |
|---|
Short Description | The module is a Z-Wave enabled device which is fully compatible with any Z-Wave enabled network.
It supports two Inputs, to be wired to existing switches, and two outputs, to be wired to any 230V actuator, such as lighting. |
|---|
Long Description | The dual relay in-wall module contains two sets of relays and switches, with each set dedicated for controlling lighting or an appliance in your home.
Each relay can be turned on/off individually using Z-wave commands or using the switches connected to the module. At 230V voltage, this module can support up to 2*4.3A output, 2*1000W resistive load.
This unit is to be installed and sealed inside an electrical switch box. |
|---|
Brand | ABUS |
|---|
Product Identifier | PLHA10000 |
|---|
Product Line | Performance Line |
|---|
OEM Version | HW: 1 FW: 1.01:00.01 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0403 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0005 |
|---|
User Icon | 0x0702 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Adv_Manual | Quickguide | | Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Loads Controlled | | Neutral Wire Required | | Switch Load Capacity Watts | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
3 | 5 | 0 | key 2 | When key 2 is pressed, the device sends a BASIC SET command containing a value to the nodes of group 3.
(If the relay output is off, the Basic Set is value=0x00, if the relay output is on, the Basic Set is value=0xFF)
| 2 | 5 | 0 | key 1 | When key 1 is pressed, the device sends a BASIC SET command containing a value to the nodes of group 2.
(If the relay output is off, the Basic Set is value=0x00, if the relay output is on, the Basic Set is value=0xFF) | 1 | 5 | 0 | Lifeline | When the device is powered for the first time, the device sends a notification report to the node of group 1.
When a factory reset is performed, the device sends a Reset Locally Notification to the node of group 1.
When a relay output is activated by the switch, the device sends a binary switch report to the node of group 1.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Key 1 | 0: Momentary button 1: Switch (Toggle) | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 1 | 0: Momentary button, 1: Switch (Toggle) |
| 2 | Key 2 | 0: Momentary button 1: Switch (Toggle) | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 1 | 0: Momentary button, 1: Switch (Toggle) |
| 3 | Relay 1 Auto Off Time | 0: No Auto Off | 1 | 4 | 0 | 43200 | 0 | From | To | Description |
|---|
0 | 43200 | 0: No Auto Off |
| 4 | Relay 2 Auto Off Time | 0: No Auto Off | 1 | 4 | 0 | 43200 | 0 | From | To | Description |
|---|
0 | 43200 | 0: No Auto Off |
| 5 | Remember relay 1 last state | 0: do not remember 1: remember | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 1 | 0: do not remember, 1: remember |
| 6 | Remember relay 2 last state | 0: do not remember 1: remember | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 1 | 0: do not remember, 1: remember |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The DSK Code (Device-Specific-Key) is the device-specific key of your device and is required for secure teach-in (including) via S2 at the gateway. The first 5 digits of the DSK code can be found on the QR code label on top of the product. Please enter these in the inclusion process when prompted. Alternatively, you can transfer the entire DSK code found on the enclosed DSK card to the gateway via QR code scan. Please keep the DSK card in a safe place! | 1 | Classic Inclusion | Activate the inclusion mode on the gateway. (for further details please refer to the gateways manual)
Press the "+" key (Add / Inclusion) in your Z-Wave app and follow the instructions to set the gateway to Inclusion mode.
The unit supports SmartStart function, where inclusion is initiated automatically on power-on, and repeated at dynamic intervals for as long as the device is not included into a Z-Wave network. Z-Wave SmartStart is based on the embedded SDK 6.8x and requires related gateway software components. The LED starts flashing.
Alternative Inclusion:
If the automatic inclusion did not work, instead press the Link button 3 times quickly (within 1.5 seconds) to start the inclusion on the device. | 2 | Classic Exclusion | Activate the exclusion mode at the gateway. (for further details please refer to the gateways manual)
Press the "-" key (Remove / Exclusion) in your Z-Wave app and follow the instructions to set the gateway to exclusion mode.
Press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device. | 5 | Factory Reset Procedure | Press the Link button 3 times quickly (within 1.5 seconds).
Press quickly (within 1 second)
a fourth time and press and hold the Link button for at least 5 seconds.
The button is now reset to factory settings.
Hint:
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
If the device is set to factory default, the status is set to "not included" and the association settings and possible configurations are reset to default. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Appliance | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
