| Product Recognition | |
|---|
| Certification Number | ZC10-16035025 |
|---|

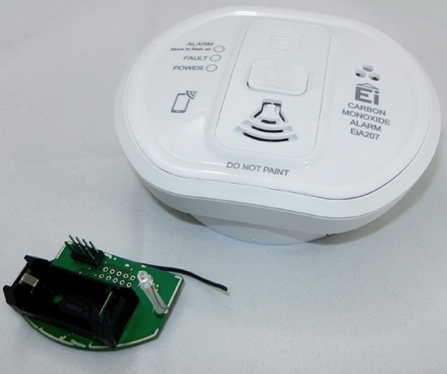

| Name | Z-Wave Carbon Monoxide Alarm |
|---|
| Short Description | This premium quality electrochemical Carbon Monoxide Alarm designed to European standards, provides a 10 year sensor life and includes a powered-for-life sealed lithium battery. The plug-in Z-Wave Communication Module is powered separately via a single replaceable 3V CR2 battery. |
|---|
| Long Description | This premium quality electrochemical Carbon Monoxide Alarm designed to European standards, provides a 10 year sensor life and includes a powered-for-life sealed lithium battery. The plug-in Z-Wave Communication Module is powered separately via a single replaceable 3V CR2 battery.
The CO Sensor is monitored electronically and will report the following:
1. Alarm on Sensing Carbon Monoxide
2. Battery status reporting
3. Sensor Fault
4. Alarm removal from mounting plate
5. Sensor End of Life
The device is a secure Z-Wave Plus device and can be used in one wireless Z-Wave network with other certified devices regardless of origin and brand. |
|---|
| Brand | Ei Electronics |
|---|
| Product Identifier | Ei200ZW |
|---|
| OEM Version | HW: 1 FW: 1.00 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x026B |
|---|
| Product Type ID | 0x0x04 |
|---|
| Product ID | 0x0x03 |
|---|
| User Icon | 0x0C02 |
|---|
| Installer Icon | 0x0C02 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | European Union |
|---|
| Controlled Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 10 | 0 | Z-Wave Plus Lifeline | | 2 | 10 | 0 | Switching Command when Alarm |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 1 | Value of On-Command | 0 | 1 | 0 | 0 | 99 | | From | To | Description |
|---|
| 0 | 99 | value | | 0 | 0 | |
| | 2 | Value of Off-Command | 0 | 1 | 0 | 0 | 0 | | From | To | Description |
|---|
| 0 | 99 | value | | 0 | 0 | |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | Pressing the button 'Inclusion Button' for one second will include the device. If the button is pressed for at least 2 seconds the inclusion will be done without the Security Command Class. | | 2 | Exclusion | A single click on the button will exclude the device. | | 4 | Device Wake-Up | A single click on the button will wakeup the device. | | 5 | Factory Reset | To do a factory reset press the button on the bottom of the device for at least 10 seconds. This procedure should only be used when the primary controller is inoperable. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
