Product Recognition
Certification Number	ZC10-17035460
Name	Z-Wave Carbon Monoxide Alarm

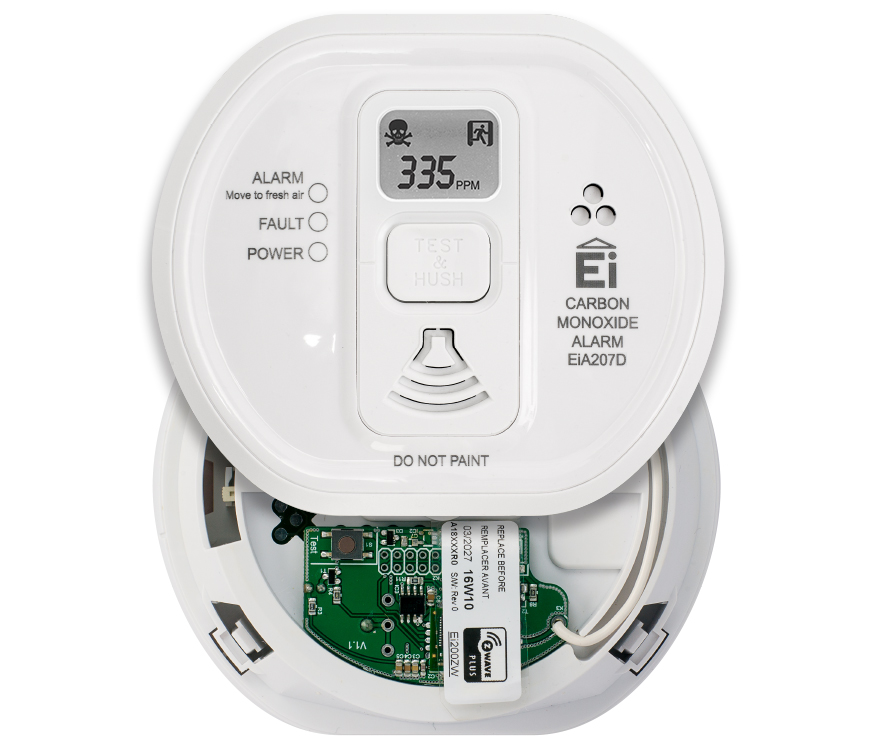

Short Description	This premium quality electrochemical Carbon Monoxide Alarm designed to North American standards with plug-in Z-Wave Communication Module, LCD Display, provides a 10 year sensor life and is powered by two replaceable AAA batteries.
Long Description	This premium quality electrochemical Carbon Monoxide Alarm designed to North American standards with plug-in Z-Wave Communication Module provides a 10 year sensor life, LCD Display and is powered by two replaceable AAA batteries. The CO Sensor is monitored electronically and will report the following: 1. Alarm on Sensing Carbon Monoxide 2. Battery status reporting 3. Sensor Fault 4. Alarm removal from mounting plate 5. Sensor End of Life The device is a secure Z-Wave Plus device and can be used in one wireless Z-Wave network with other Z-Wave certified devices.
Brand	Ei Electronics
Product Identifier	EiA207DRFZ
OEM Version	HW: 1 FW: 1.00
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x026B
Product Type ID	0x0004
Product ID	0x0003
User Icon	0x0C02
Installer Icon	0x0C02
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors, Security Add-Ons
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SENSOR_BINARY_V2 Sensor Binary V2 0x30 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual B18821R2COZWAVEUCUS.pdf
Features	Feature Values Battery Quantity Value 2 Battery Type Value AAA Color Value White Sensors Value Carbon Monoxide
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 10 0 Z-Wave Plus Lifeline 2 10 0 Alarm Reports 3 10 0 Switching Command when Alarm
Texts	ID Description Value 1 Inclusion Pressing the button 'Inclusion Button' for one second will include the device. If the button is pressed for at least 2 seconds the inclusion will be done without the Security Command Class. 2 Exclusion A single click on the button will exclude the device. 5 Factory Reset To do a factory reset press the button on the bottom of the device for at least 10 seconds. This procedure should only be used when the primary controller is inoperable. 4 Device Wake-Up A single click on the button will wakeup the device.
Supported Multilevel Sensors	Multilevel Sensor Type Carbon monoxide (CO) level
Supports NWI	Yes
Supports Explorer Frames	Yes
