| Product Recognition | |
|---|
| Certification Number | ZC10-19106770 |
|---|

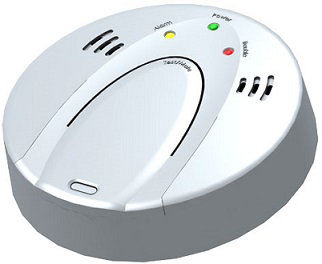

| Name | Z-Wave CO Sensor |
|---|
| Short Description | This device is designed to give early warning of high concentration CO by giving off the alarm sounds from its build-in alarm horn. |
|---|
| Long Description | The Z-Wave CO Sensor PSG04 is designed to give early warning of high concentration CO by giving off the alarm sounds from its build-in alarm horn, based on Z-WaveTM technology.
It is the Z-WaveTM plus product, it support the security, OTA. Those newest features of the Z-WaveTM technology. Z-WaveTM is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances.
This product can be included and operated in any Z-WaveTM network with other Z-WaveTM certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. |
|---|
| Brand | Philio |
|---|
| Product Identifier | PSG04 |
|---|
| Product Line | Philio Z-wave Products |
|---|
| OEM Version | HW: 1 FW: 1.02:01.02 |
|---|
| Hardware Platform | SD3502 |
|---|
| Z-Wave Version | 6.81.03 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x013C |
|---|
| Product Type ID | 0x0002 |
|---|
| Product ID | 0x0071 |
|---|
| User Icon | 0x0C02 |
|---|
| Installer Icon | 0x0C02 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | European Union |
|---|
| Supported Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
| S2 Classes | S2_UNAUTHENTICATED |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Firmware Updatable | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
| 1 | 4 | 0 | Lifeline | Used for returned events. |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 1 | Auto Report Battery Time | The interval time for auto report the battery level. 0 means turn off auto report battery. Each tick means 30 minutes. The default value is 12(6 hours). | 1 | 1 | 0 | 127 | 0 | | From | To | Description |
|---|
| 0 | 127 | Units of 30 minute. |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 8 | Where to find S2 DSK on product | The QR code can be found on the device PSG04 or in the box. | | 1 | Classic Inclusion | 1. Have Z-WaveTM Controller entered inclusion mode.
2. Pressing button three times within 1.5 seconds to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-WaveTM Controller about 20 seconds. | | 2 | Classic Exclusion | 1. Have Z-WaveTM Controller entered exclusion mode.
2. Pressing button three times within 1.5 seconds to enter the exclusion mode.
Node ID has been removed. | | 4 | Wake-Up Procedure | When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy. | | 5 | Factory Reset Procedure | 1. Pressing button four times within 1.5 seconds and do not release the button in the 4th pressed.
2. After 3 secands and release the button within 2 seconds.
3. IDs are removed and all settings will reset to factory default. |
|
|---|
| Supported Notification Types | | Notification Type | Event / State |
|---|
| CO Alarm | Sensor status: Carbon monoxide detected |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
| Supports SmartStart | Yes |
|---|
