Product Recognition | |
|---|
Certification Number | ZC10-20066927 |
|---|

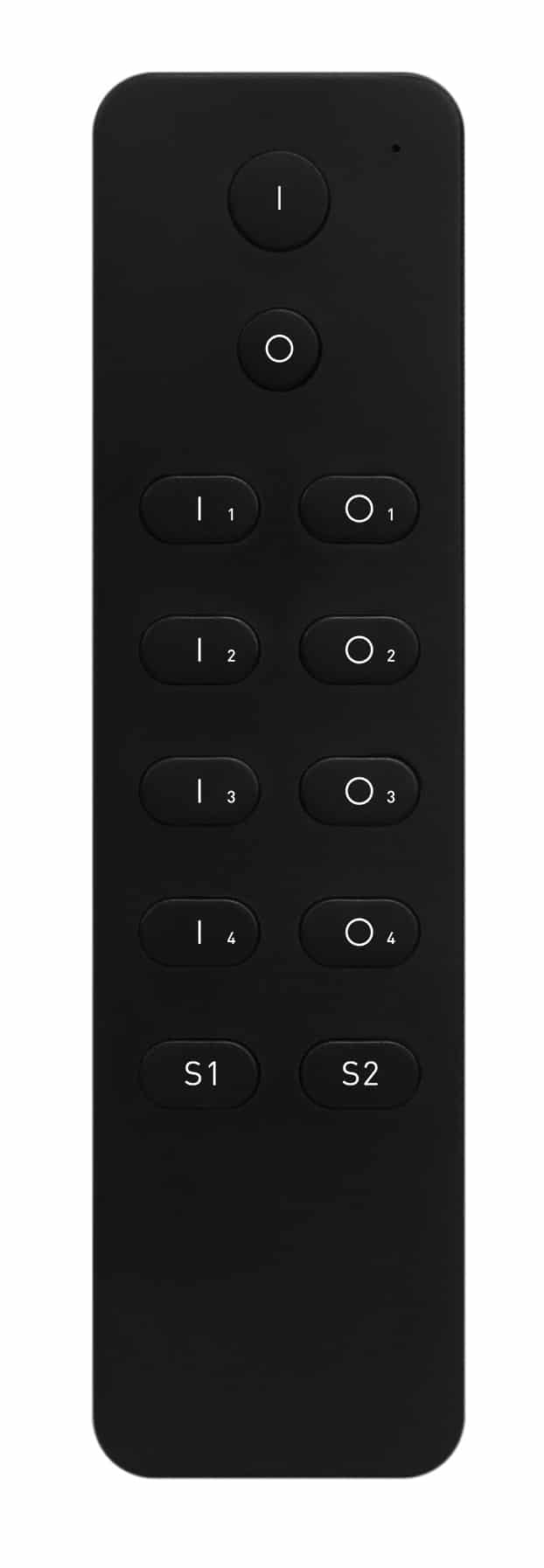

Name | Z-Wave Dim Remote Control |
|---|
Short Description | The remote control is a Z-Wave device that can both control
other Z-Wave devices and activate scenes in Gateways.
Although it is controlling other devices, the device cannot act
as Z-Wave network controller (primary or secondary) and will
always need a Z-Wave network controller to be added into a
Z-Wave network. |
|---|
Long Description | The remote control is a Z-Wave device that can both control
other Z-Wave devices and activate scenes in Gateways.
Although it is controlling other devices, the device cannot act
as Z-Wave network controller (primary or secondary) and will
always need a Z-Wave network controller to be added into a
Z-Wave network.This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers.
The remote control has following functions:
1. Control of groups of other Z-Wave devices using ON, OFF and
Dim commands.
2. Activation of scenes in Gateway mode. |
|---|
Brand | Sunricher |
|---|
Product Identifier | SR-ZV9001K12-DIM-Z4 |
|---|
Product Line | SR-ZV9001 |
|---|
OEM Version | HW: 1 FW: 1.26 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Wall Controller |
|---|
Role Type | ROLE_TYPE_SLAVE_PORTABLE |
|---|
Manufacturer ID | 0x0330 |
|---|
Product Type ID | 0x0300 |
|---|
Product ID | 0xb302 |
|---|
User Icon | 0x1600 |
|---|
Installer Icon | 0x1600 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, All Controllers, Handheld Controller, Lighting Accessories |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | 1. Send Command Class "Device Reset Locally Notification V1" to
associated devices of this group to report factory reset information when factory reset the remote control.
2. When remote control battery power value changes, send
Command Class "Battery Report V1" to associated devices of this
group to report power value information.
3. Short press or press and hold down any button to send scene
activation command to the associated devices of this group using Command Class “Central Scene Notification V3” | 5 | 5 | 0 | Launch 4 | 1. Short press I4 / O4 button of Group 5 to send ON/OFF
command to associated devices of this group using Command
Class "Basic Set V2".
2. Press and hold down I4 / O4 button of Group 5 to send light
intensity increase/decrease command to associated devices of this group using Command Class "Multilevel V4".
3. Short press Scene button S1/S2, direct control of associated
devices using Scene Activation Set, Scene ID = 0x10 / 0x20.
4. Press and hold down Scene button S1/S2, direct control of
associated devices using Scene Conf Set, Scene ID = 0x10 / 0x20. | 2 | 5 | 0 | Launch 1 | 1. Short press I1 / O1 button of Group 2 to send ON/OFF
command to associated devices of this group using Command
Class "Basic Set V2".
2. Press and hold down I1 / O1 button of Group 2 to send light intensity increase/decrease command to associated devices of this group using Command Class "Multilevel V4".
3. Short press Scene button S1/S2, direct control of associated devices using Scene Activation Set, Scene ID = 0x10 / 0x20.
4. Press and hold down Scene button S1/S2, direct control of
associated devices using Scene Conf Set, Scene ID = 0x10 / 0x20. | 4 | 5 | 0 | Launch 3 | 1. Short press I3 / O3 button of Group 4 to send ON/OFF
command to associated devices of this group using Command
Class "Basic Set V2".
2. Press and hold down I3 / O3 button of Group 4 to send light
intensity increase/decrease command to associated devices of this group using Command Class "Multilevel V4".
3. Short press Scene button S1/S2, direct control of associated
devices using Scene Activation Set, Scene ID = 0x10 / 0x20.
4. Press and hold down Scene button S1/S2, direct control of
associated devices using Scene Conf Set, Scene ID = 0x10 / 0x20. | 3 | 5 | 0 | Launch 2 | 1. Short press I2 / O2 button of Group 3 to send ON/OFF
command to associated devices of this group using Command
Class "Basic Set V2".
2. Press and hold down I2 / O2 button of Group 3 to send light intensity increase/decrease command to associated devices of this group using Command Class "Multilevel V4".
3. Short press Scene button S1/S2, direct control of associated devices using Scene Activation Set, Scene ID = 0x10 / 0x20.
4. Press and hold down Scene button S1/S2, direct control of
associated devices using Scene Conf Set, Scene ID = 0x10 / 0x20. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | factory reset | Value=0x55AA, other values are invalid, factory reset the Remote Control | 0 | 2 | 21930 | 21930 | 21930 | From | To | Description |
|---|
21930 | 21930 | factory reset |
|
|
|---|
Texts | ID | Description | Value |
|---|
23 | Controller Inclusion | Step 1. Make sure the remote control does not belong to any Z-Wave network, short press any button, if LED indicator does not turn on, the remote control does not belong to any network, then continue step 2,if LED indicator turns on, it means the remote control has already been included to a network, please first set the remote control to exclusion mode (refer to the part Exclusion"" of this manual),then continue step 2.
Step 2. Set primary controller/gateway into inclusion mode (Please refer to your primary controllers manual on how to turn your controller into inclusion).
Step 3. Press and hold down both buttons I and O of Group 2 over 3 seconds, LED indicator turns on, the remote control will be set to inclusion mode, and waiting to be included, after 10s LED indicator blinks 6 times
quickly to indicate successful inclusion. The remote control is a sleepy device, after inclusion it will not enter into sleepy mode immediately, and will continue activation status for 30s and wait data interaction from the gateway, the LED indicator will stay solid on, please be patient to wait LED indicator to turn off. | 24 | Controller Exclusion | There are two exclusion methods:
Method 1: Exclusion from the primary controller/gateway as follows:
1. Set the primary controller/gateway into exclusion mode (Please refer to your primary controllers manual on how to set your controller into exclusion).
2. Press and hold down both buttons I and O of Group 2 over 3 seconds, LED indicator turns on, the remote control will be set to exclusion mode, and waiting to be excluded, after 7s LED indicator blinks 4 times quickly to indicate successful exclusion. | 2 | Classic Exclusion | There are two exclusion methods:
Method 1: Exclusion from the primary controller/gateway as follows:
1. Set the primary controller/gateway into exclusion mode (Please refer to your primary controllers manual on
how to set your controller into exclusion).
2. Press and hold down both buttons All On I and All Off O for over 3 seconds, LED indicator turns on, the
remote control will be set to exclusion mode, and waiting to be excluded, after 7s LED indicator blinks 4 times
quickly to indicate successful exclusion.
Method 2: Factory reset the remote control will force the remote control to be excluded from a network. (please refer to the part “Factory Reset” of this manual) | 4 | Wake-Up Procedure | Short press any button to activate the remote control for 3s, and press and hold down both buttons All On I
and All Off O over 1 second to activate the remote control for 7s. | 5 | Factory Reset Procedure | Press and hold down both buttons All On I and All Off O for over 10 seconds, LED indicator turns on and then
blinks 4 times quickly to indicate successful factory reset.
Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 1 | Classic Inclusion | Step 1. Make sure the remote control does not belong to any Z-Wave network, short press any button, if LED
indicator does not turn on, the remote control does not belong to any network, then continue step 2,if LED
indicator turns on, it means the remote control has already been included to a network, please first set the
remote control to exclusion mode (refer to the part "Exclusion" of this manual),then continue step 2.
Step 2. Set primary controller/gateway into inclusion mode (Please refer to your primary controllers manual on
how to turn your controller into inclusion).
Step 3. Press and hold down both buttons All On I and All Off O for over 3 seconds, LED indicator turns on, the
remote control will be set to inclusion mode, and waiting to be included, after 10s LED indicator blinks 6 times
quickly to indicate successful inclusion. The remote control is a sleepy device, after inclusion it will not enter
into sleepy mode immediately, and will continue activation status for 30s and wait data interaction from the
gateway, the LED indicator will stay solid on, please be patient to wait LED indicator to turn off. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
