Product Recognition | |
|---|---|
Certification Number | ZC12-22070347 |

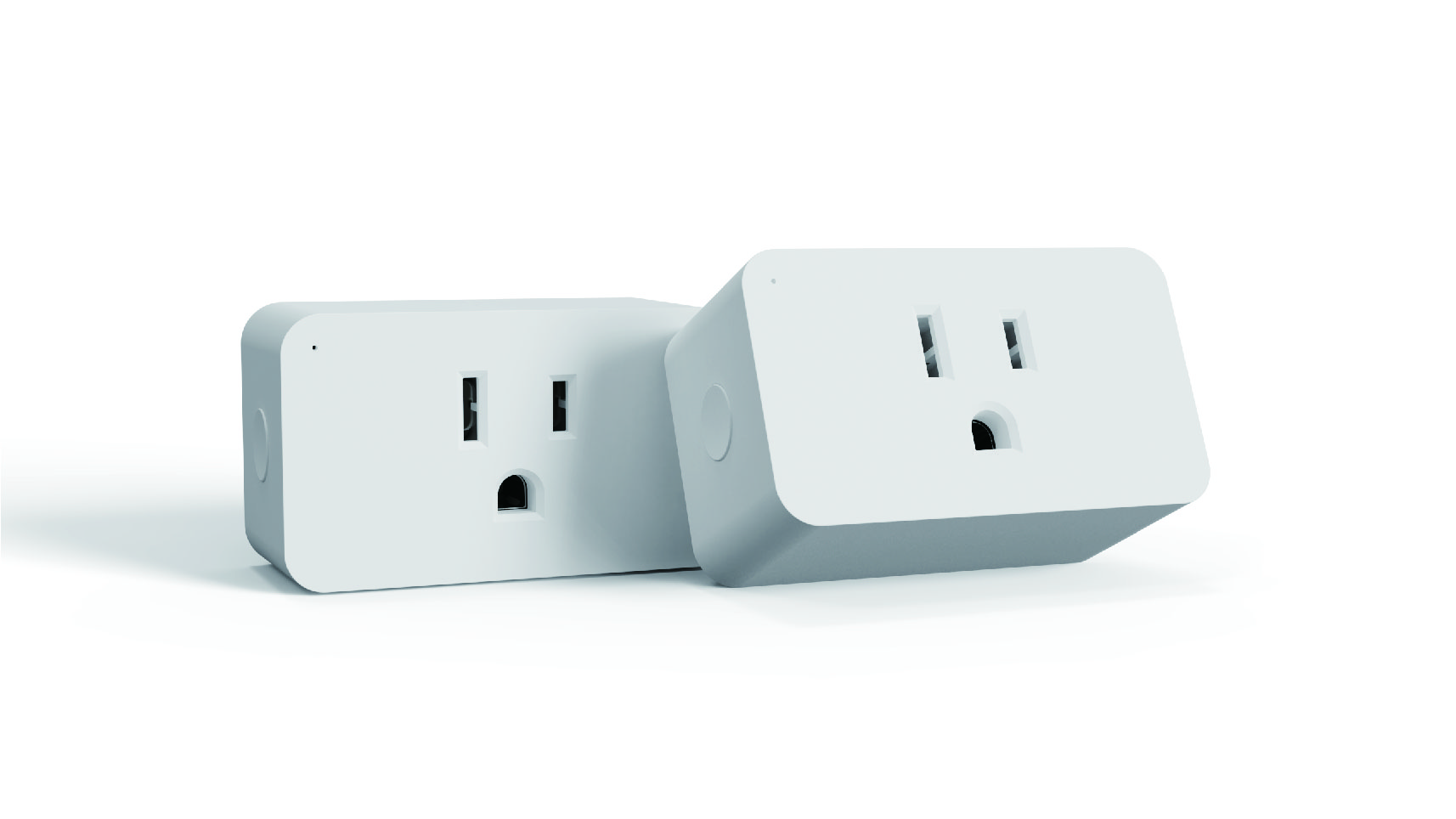

Name | Z-wave Dimmer Plug |
Short Description | The Smart Dimmer can be used to turn any outlet into a smart outlet to turn lamps On, Off, or control dimming of any lamps with dimmable light bulbs. Each Z-Wave ™ device also serves as a repeater in the Z-Wave network, extending and improving the mesh network in the installed location. |
Long Description | The Smart Dimmer can be used to turn any outlet into a smart outlet to turn lamps On, Off, or control dimming of any lamps with dimmable light bulbs. Each Z-Wave ™ device also serves as a repeater in the Z-Wave network, extending and improving the mesh network in the installed location.
The Smart Dimmer is a Z-Wave Plus ™ certified device and includes S2 security and SmartStart. You can now add this device securely and with ease using QR code on the box or device. |
Brand | Minoston |
Product Identifier | MP31ZD |
Product Line | Line A |
OEM Version | HW: 1 FW: 1.00 |
Hardware Platform | ZGM130 |
Z-Wave Version | 7.13.6 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Multilevel Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0312 |
Product Type ID | 0xFF07 |
Product ID | 0xFF03 |
User Icon | 0x0604 |
Installer Icon | 0x0600 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
Countries / Regions | United States of America, Canada, Mexico |
Supported Command Classes | |
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
