Certification Number	ZC10-19076649
Name	Z-Wave Door Lock

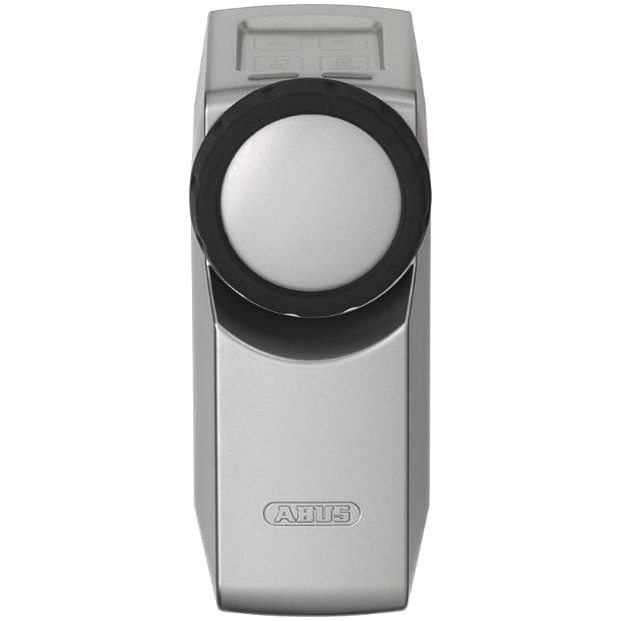

Short Description	The ABUS HomeTec Pro Z-Wave door drive is the ideal solution for comfortable access in house and apartment doors as well as office or service rooms.
Long Description	The ABUS HomeTec Pro Z-Wave door lock drive is the ideal solution for comfortable access in house and apartment doors as well as office or service rooms. Once installed, these doors can then be conveniently and easily locked and unlocked via the app. The installation of the drive itself is also simple and easy. The maintenance-free and battery-operated drive can be installed safely with little effort and without cabling. The only prerequisite is a door cylinder with emergency function, which has on the inside of the door a projection of seven to 12 millimeters. The emergency function ensures that the door can continue to be opened and closed with the conventional key.
Brand	ABUS
Product Identifier	HomeTec Pro CFA3010
OEM Version	HW: 1 FW: 1.00
Hardware Platform	ZM5101
Z-Wave Version	6.81.01
Library Type	SLAVE_ENHANCED_232
Device Type	Door Lock - Keypad
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x0409
Product Type ID	0x0005
Product ID	0x0003
User Icon	0x0300
Installer Icon	0x0300
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Locks
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Firmware Update Meta-Data V4 0x7A 4 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
S2 Classes	S2_ACCESS_CONTROL
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ABUS_CFA_3010_Z-Wave_Manual_v3.pdf
Features	Feature Values Color Value Silver Firmware Updatable Value Updatable by Consumer by RF Communications Protocol Value Manufacturer Proprietary Protocol Door Lock Type Value Deadbolt Motor Attachment Battery Quantity Value 4 Battery Type Value AA Supported Notification Types Value Access Control Power Management System
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 251 Travel cycle latch Counter, how often latch was actuated 0 1 0 0 1 From To Description 0 127 Counter how ofter latch was actuated 252 Travel cycles unlock Counter, how often travel in „Unlocked“ direction 0 1 0 0 1 From To Description 0 127 Counter how often travel in "unlocked" direction 253 Travel cycles locked Counter, how often travel in „Locked“ direction 0 1 0 0 1 From To Description 0 127 Counter how often travel in locked direction 254 ABUS Firmware version Display ABUS firmware version, e.g. 1.05 0 2 0 0 1 From To Description 0 127 Displays the ABUS firmware version e.g. 1.05 2 Lact force Setting of current torque during travel of latch - 1 high (max.) - 2 medium (standard) - 3 low (min.) 0 1 0 0 2 From To Description 1 3 Seeting of current torque during travel of latch 1 is high, 2 medium and 3 low 3 Acoustic signal Setting of acoustic signals to the following values: - 1 all signals inactive - 2 signal only at start of travel - 3 signal when latch position is reached - 4 signal when locked position is reached - 5 signal when end position is reached Button, lowbattery and error/alarm signals cannot be changed. 0 1 0 0 3 From To Description 1 5 1 all signals, 2 signal only, 3 signal when latch position is reached, 4 signal when locked position is reached, 5 end position 5 Touch field Current setting of touch field function: - 1 all active - 2 only operating buttons active - 3 all inactive - 4 only latch pull inactive 0 1 0 0 1 From To Description 1 4 1 all active, 2 only operating buttons active, 3all inactive, only latch 6 Bolt force Setting of current torque during travel of bolt: - 1 Automatic / normal (travel according to teach-in run parameters) - 2 maximum 0 1 0 0 1 From To Description 1 2 1 automatic(normal), 2 maximum 250 Lock status Status of lock: - 0 unknown - 1 open - 2 unlocked - 3 1x locked - 4 2x locked - 5 locked (end stop) - 6 multiple locking 0 1 0 0 0 From To Description 0 127 1 open, 2 inlocked, 3 locked 1x,4 is 2x locked, 5 locked, 6 multiple locking 4 Travel path Current setting of travel path at drive that is intended and/ or allowed to be travelled: - 1 Automatic / normal (travel according to teach-in run parameters) - 2 in case of multiple locking only one locking action - 3 motor travel from window tilt position is allowed (ABUS FCA3000) 0 1 0 0 1 From To Description 1 3 1 automatic, 2 in case of multiple locking only one locking action, 3 motor travel from window tilt position is allowed
Texts	ID Description Value 1 Inclusion Inclusion/Exclusion On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the devices of this network. This process is called Inclusion. Devices can also be removed from a network. This process is called Exclusion. Both processes are initiated by the primary controller of the Z-Wave network. This controller is turned into exclusion respective inclusion mode. Inclusion and Exclusion is then performed doing a special manual action right on the device. Process: 1. At first switch the primary Z-Wave controller to Inclusion or Exclusion mode 2. Now press the two arrow keys on the drive for 3 seconds until the left LED lights up green. This indicates the management mode. 3. Press the „lock“ button to start in- or exclusion, depending on what was previously set on the primary Z-Wave controller. 4. Both LEDs flash green to indicate that the unit is ready. 5. If the in- or exclusion is successful or if a timeout occurs, the green LED on the right goes out and the flashing ends. Please also note the transcription of the primary Z-Wave controller. 6. Pressing the „Unlock“ button will now also terminate the management mode. 2 Exclusion Inclusion/Exclusion On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the devices of this network. This process is called Inclusion. Devices can also be removed from a network. This process is called Exclusion. Both processes are initiated by the primary controller of the Z-Wave network. This controller is turned into exclusion respective inclusion mode. Inclusion and Exclusion is then performed doing a special manual action right on the device. Process: 1. At first switch the primary Z-Wave controller to Inclusion or Exclusion mode 2. Now press the two arrow keys on the drive for 3 seconds until the left LED lights up green. This indicates the management mode. 3. Press the „lock“ button to start in- or exclusion, depending on what was previously set on the primary Z-Wave controller. 4. Both LEDs flash green to indicate that the unit is ready. 5. If the in- or exclusion is successful or if a timeout occurs, the green LED on the right goes out and the flashing ends. Please also note the transcription of the primary Z-Wave controller. 6. Pressing the „Unlock“ button will now also terminate the management mode. 5 Factory Reset Reset to factory default This device also allows to be reset without any involvement of a Z-Wave controller. Important note: this procedure should only be used when the primary controller is inoperable. Push the two arrow buttons for 3 seconds until the left LED lights up green. Then push the down arrow until the left LED lights up red. Press the „Close“ key to open the menu item. Now press „arrow down“ again until both LEDs on the drive light up red. Push the Enter-button for 3 seconds until both LEDs are flashing. Then push the Enter-button again for 3 seconds to confirm the reset to factory default. After that, all settings are deleted. After a factory reset, the drive (road and motor drive) must be taught-in again before the drive can be integrated into the Z-Wave system again. The device sends the following notifications to the central controller: • Manual Lock and Unlock operation (0x06 - 0x01/0x02) • RF Lock and Unlock Operation (0x06 - 0x03/0x03) • Lock Jammed (0x06 - 0x0B) 6 Additional Special Features Enable Fallback to S0 Security If your Z-Wave Gateway/Controller does not support the S2 standard, inclusion is not possible immediately. To perform an inclusion, the S0 standard must be activated manually. (Since the Z-Wave S0 standard has a minimal security risk during teach-in, it is deactivated by default for the entry solution). Press the two arrow keys for 3 seconds until the left LED lights up green. This indicates the management mode. Press both arrow keys again for 3 seconds until the left LED flashes green. Now press the „up“ arrow key; the left LED flashes red. Confirm with the „Close“ key. The left LED flashes red, the right one lights up green = Standard S2. Press the down arrow key; the left LED flashes red and the right lights up red = S0 Security. Confirm the change from S2 to S0 by pressing the Close“ key.
Supported Notification Types	Notification Type Event / State Access Control (Refer to parameters): State idle Power Management (Refer to parameters): State idle System (Refer to parameters): State idle
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
Supports SmartStart	Yes
