| Product Recognition | |
|---|
| Certification Number | ZC10-16105273 |
|---|

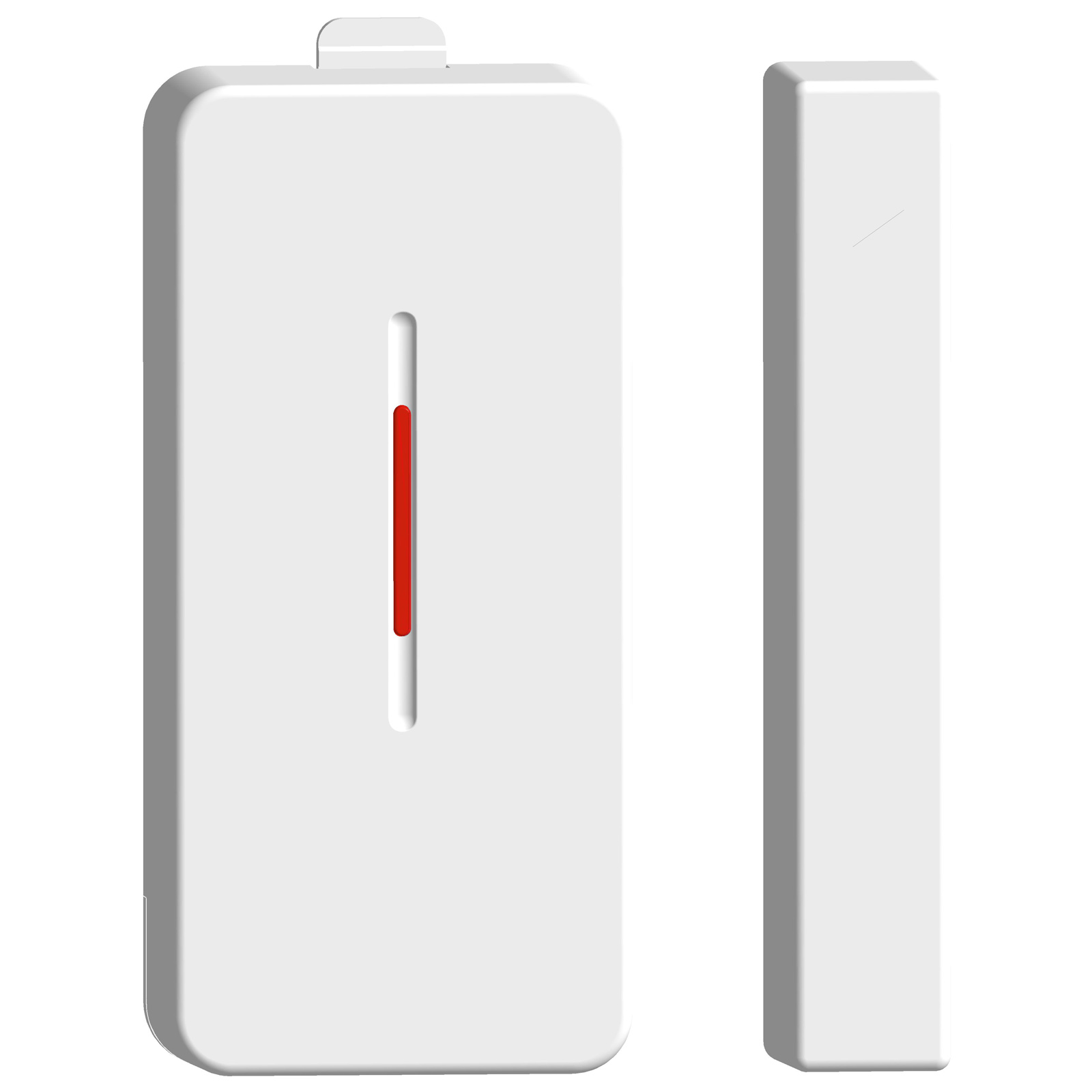

| Name | Z-Wave DOOR SENSOR |
|---|
| Short Description | This product is used for detecting open or close status of door/window |
|---|
| Long Description | IM20_Zwave is a door/window sensor adopting Zwave500 series chip. It uses special structure design, suitable for kinds of installation environments. Also, it supports door & window open/close detection, anti-tamper, battery level detection and associated gateway and interaction device notifications. |
|---|
| Brand | Shenzhen Kaipule Technology Co., Ltd. |
|---|
| Product Identifier | IM20-Z-Wave |
|---|
| OEM Version | HW: 255 FW: 1.38 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.09 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x0214 |
|---|
| Product Type ID | 0x0002 |
|---|
| Product ID | 0x0001 |
|---|
| User Icon | 0x0C06 |
|---|
| Installer Icon | 0x0C06 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Battery Quantity | | | Battery Type | | | Color | | | Sensors | | Value |
|---|
| Open/Closed (Binary) |
|
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 2 | 2 | 0 | When the door sensor is opened, it will send “BASIC SET” command to control these devices in Group2. | | 1 | 1 | 0 | 1.It will send “NOTIFICATION_REPORT”to the device in Group 1 when the door sensor is opened / closed, tamper switch is triggered / recovered.
2.When in low battery status, door sensor will send “BATTERY_REPORT” to Group 1 device periodically.
3.The door sensor will send “DEVICE_RESET_LOCALLY_NOTIFICATION” to Group1 device
when the device recovers to factory settings. |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 1 | Basic Set Level | If there is any device under Association Group2, the door sensor will send “Basic Set = value” command to control that device when the door sensor is opened. | 0 | 1 | 0 | 0 | 255 | | From | To | Description |
|---|
| 255 | 255 | For ON/OFF Light Only | | 1 | 100 | Dimmer Level |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | enter the Inclusion Mode of gateway, and press the tamper switch 3 times within 1.5s,then the door sensor will stay in enrollment state until successfully enrolled into network or enrollment time out after 30s. | | 2 | Exclusion | enter the Exclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the door sensor will be removed after a period of time. | | 5 | Factory Reset | Press the tamper switch 6 times in 2s, it will recover to factory setting after a period of time（Please use the reset procedure only when the primary controller is missing or inoperable） | | 4 | Device Wake-Up | a) Manual Wake-up
Quickly press tamper switch once, the door sensor will automatically send wake-up information, and there will be 10s after wake-up to receive gateway setting information.
b) Automatic Wake-up
Default time of automatic wake-up is 24 hours, and there will be 10s after wake-up to receive gateway setting information, the max automatic report time = 24 hours, minimum=30min |
|
|---|
| Supported Multilevel Sensors | | Multilevel Sensor Type |
|---|
| 0x02 |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
