Product Recognition | |
|---|
Certification Number | ZC10-20036890 |
|---|

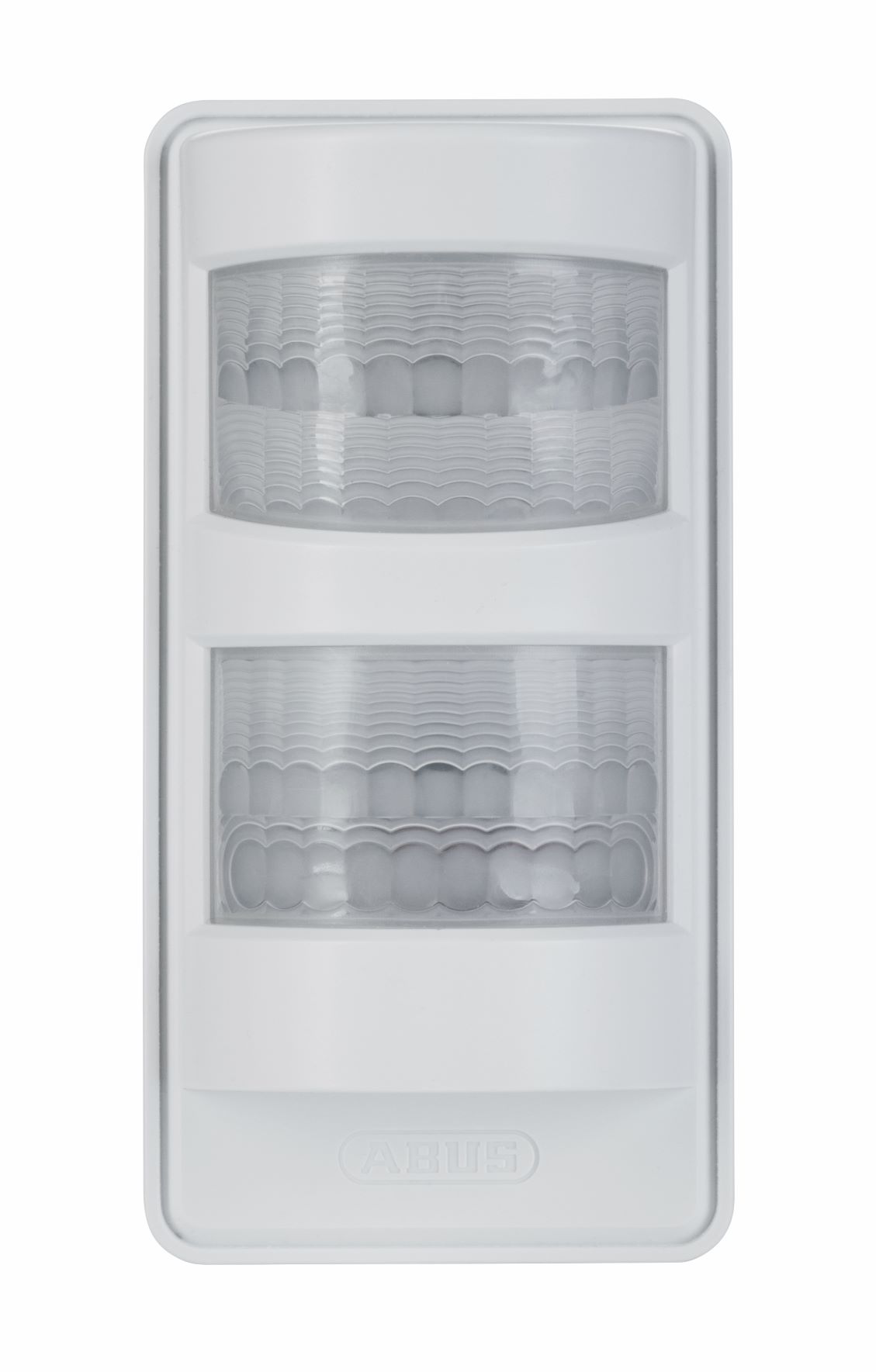

Name | Z-Wave Dual Pet PIR |
|---|
Short Description | The motion detector uses Passive Infrared (PIR) technology to detect movement in a defined area by detecting the changes in thermal radiation caused by the moving body inside or outside the detection zone. |
|---|
Long Description | Motion detector
It uses Passive Infrared (PIR) technology to detect movement in a defined area by detecting the changes in thermal radiation caused by the moving body inside or outside the detection zone. With the dual PIR sensor (dual-lens technology), the sensor hides pets up to approx. 38kg, so that your pet can move freely without triggering the sensor.
When the motion detector is triggered, an alarm signal is sent to the Z-Wave controller. The indicator LED lights up when motion is detected.
Integrated temperature and humidity sensor
At periodic intervals, the unit automatically sends the measured temperature and humidity value to the Z-Wave controller or on request of the Z-Wave controller.
Tamper protection between the device and wall bracket
When the housing is opened, the tamper switch is triggered and the device sends a tamper alarm to the Z-Wave controller. The tamper contact must remain pressed for three seconds to reset the tamper alarm. |
|---|
Brand | ABUS |
|---|
Product Identifier | PLBW10000 |
|---|
Product Line | Z-Wave 500 series |
|---|
OEM Version | HW: 1 FW: 1.01:00.01 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0403 |
|---|
Product Type ID | 0x0002 |
|---|
Product ID | 0x0004 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors, Security Add-Ons, Security Systems |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | The Lifeline Association is automatically established between the Z-Wave controller and the device during inclusion and defines what information is exchanged between the Z-Wave controller and the device.
Notification report
Battery report
Device Reset Locally Notification
Sensor Multilevel Report | 2 | 4 | 0 | PIR control | When the motion alarm is triggered, it sends a BASIC SET On / Off command to the nodes of group 2 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Reset waiting time after motion alarm | Waiting time after a movement alarm until reset. Additionally, defines how long directly associated devices from group 2 are activated. | 1 | 2 | 10 | 3600 | 180 | From | To | Description |
|---|
10 | 3600 | Adjustable from 10 - 3600 in seconds (Hexadecimal: 0x10 - 0xE10) |
| 2 | Waiting time between two motion alarms | Waiting time from one motion alarm to the next triggering. | 1 | 2 | 10 | 3600 | 160 | From | To | Description |
|---|
10 | 3600 | Adjustable from 10 - 3600 in seconds (Hexadecimal: 0x10 - 0xE10) |
| 4 | Temperature report threshold | Additional temperature report, which is sent when the set threshold is exceeded. | 1 | 1 | 0 | 10 | 5 | From | To | Description |
|---|
0 | 0 | The value 0 deactivates the temperature report. (Hexadecimal: 0x00) | 1 | 10 | Adjustable from 1 - 10 in 0.5° steps (e.g. 5 = 2.5°, Hexadecimal: 0x01 - 0x0A) |
| 5 | Humidity report threshold | Additional humidity report that is sent when the set threshold is exceeded. | 1 | 1 | 0 | 10 | 5 | From | To | Description |
|---|
0 | 0 | The value 0 deactivates the temperature report. (Hexadecimal: 0x00) | 1 | 10 | Adjustable from 1 - 10 in 5% steps (e.g. 5 = 25%, Hexadecimal: 0x01 - 0x0A) |
| 6 | LED status | Set whether the status LED lights up in case of a motion alarm. | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | 0 = LED deactivated (Hexadecimal: 0x00) | 1 | 1 | 1 = LED activated (Hexadecimal: 0x01) |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | 1.2 Z-Wave QR Code DSK Sticker for S2 Inclusion is located on the backside of the bracket
1.6 The DSK code (Device-Specific Key) is the device-specific key of your device and is required for secure teach-in (inclusion) via S2 on the Z-Wave controller. The first 5 digits of the DSK code can be found on the QR Code sticker on the backside of the bracket of the product. | 1 | Classic Inclusion | Activate the inclusion mode (teach-in mode) on the Z-Wave controller. (please refer to the Z-Wave controller manual for more details)
Press the "+" button (Add / Inclusion) in your Z-Wave app and follow the instructions to set the Z-Wave controller to inclusion mode.
Keep the device within reach of the Z-Wave controller.
Remove the safety strip from the battery compartment. We recommend the exclusive use of the original GP battery from the scope of delivery.
The device supports automatic inclusion, i.e. it automatically goes into inclusion mode when it is powered and not yet connected to a Z-Wave controller. The LED starts flashing.
Alternative/manual inclusion:
If you have already inserted the batteries, press the Link button 3 times quickly (within 1.5 seconds) to start the inclusion process. | 2 | Classic Exclusion | Activate the exclusion mode (teach-out mode) on the Z-Wave controller. (please refer to the Z-Wave controller manual for more details)
Press the "-" button (Remove / Exclusion) in your Z-Wave app and follow the instructions to set the Z-Wave controller to Exclusion mode.
Press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device. | 4 | Wake-Up Procedure | Press the Link button once to wake up the device. It then establishes a connection to the Z-Wave controller and transmits the current Status. | 5 | Factory Reset Procedure | Press the Link button 3 times quickly (within 1.5 seconds).
Press quickly (within 1 second)
a fourth time and press and hold the Link button for at least 5 seconds.
The device is now reset to factory settings.
Hint:
This procedure should only be used if the primary network controller is not capable of acting.
If the device is set to factory default, the status is set to "not included" and the association settings and possible configurations are reset to default. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | Motion sensor status: Motion detection |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
