Product Recognition | |
|---|
Certification Number | ZC10-20036878 |
|---|

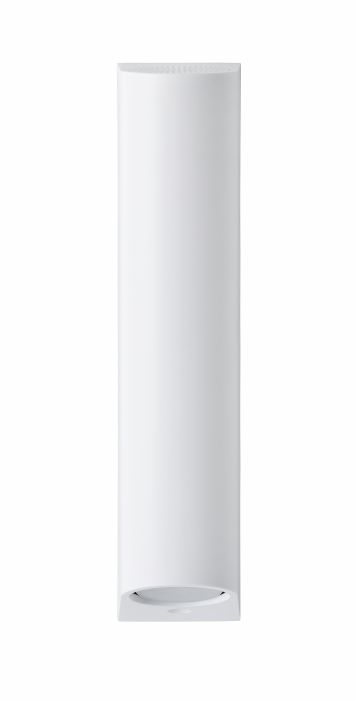

Name | Z-Wave indoor siren |
|---|
Short Description | The ABUS Z-Wave indoor siren offers more than the loud alarm with 100dB in case of alarm. |
|---|
Long Description | The ABUS Z-Wave indoor siren offers more than the loud alarm with 100dB in case of alarm.
An additional speaker can play voice messages that provide understandable information about events or status changes of the Z-Wave Gateway. Frequently used notifications are pre-installed, e.g. notifications about activations or deactivations of the security system. Individual notifications can also be transferred to the siren via USB cable and triggered via a Z-Wave gateway.
The siren has tamper protection and is battery operated. The integrated hygrometer provides sensor values for building automation and thus, for example, the heating behaviour can be controlled depending on the temperature and humidity.
Firmware updates can be conveniently uploaded over the air (OTA) and numerous configuration parameters allow individual adjustments, e.g. the duration of the alarm. |
|---|
Brand | ABUS |
|---|
Product Identifier | PLSG10000 |
|---|
Product Line | Z-Wave 500 series |
|---|
OEM Version | HW: 1 FW: 1.01:00.02 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0403 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0004 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Security Add-Ons, Security Systems |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SOUND_SWITCH | Sound Switch | 0x79 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | When the device is supplied with power for the first time or the sabotage contact is triggered, the device sends a notification report to the node of group 1. If the battery level falls below a certain threshold, the device sends a battery report to the node of group 1. When a factory reset is performed, the device sends a Reset Locally Notification to the node of group 1. If the status of the siren changes (Piezo Alarm On/Off), the device sends a Switch Binary Report to the node of group 1. The device sends a multilevel sensor report with temperature and humidity values to the node of group 1. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Alarm duration | Setting how long an alarm of the piezo siren lasts when triggered. | 1 | 2 | 10 | 600 | 180 | From | To | Description |
|---|
10 | 600 | Adjustable from 10 - 600 in seconds (Hexadecimal: 0x0A - 0x258) |
| 3 | Sound playback | For Z-Wave controllers that do not support Sound Switch Command Class, the sound to be played can be set here. | 1 | 1 | 0 | 99 | 0 | From | To | Description |
|---|
1 | 99 | 1 - 99 = Sound 1 - 99 is played, (Hexadecimal: 0x00 - 0x63) | 0 | 0 | No sound is played. |
| 4 | Temperature report | Additional temperature report, which is sent when the set threshold is exceeded. | 1 | 1 | 0 | 10 | 5 | From | To | Description |
|---|
0 | 10 | The value 0 deactivates the temperature report. Adjustable from 0 - 10 in 0.5° steps, e.g. 5 = 2.5°. (Hexadecimal: 0x00 - 0x0A) |
| 5 | Air humidity report | Additional humidity report that is sent when the set threshold is exceeded. | 1 | 1 | 0 | 10 | 5 | From | To | Description |
|---|
1 | 10 | Adjustable from 0 - 10 in 5% steps, e.g. 5 = 25%, (Hexadecimal: 0x00 - 0x0A) | 0 | 0 | Humidity report is disabled. |
| 6 | Sabotage alarm | Determines whether sound file #2 should be played directly in case of a sabotage alarm. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | 0 = The siren does not play a sound file. | 1 | 1 | 1 = The siren plays sound file #2. (Hexadecimal: 0x00 - 0x01) |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | Activate the exclusion mode (learn mode) on the Z-Wave controller. (please refer to the Z-Wave controller manual for more details)
Press the "-" button (Remove / Exclusion) in your Z-Wave app and follow the instructions to set the Z-Wave controller to Exclusion mode.
Press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device. | 4 | Wake-Up Procedure | It´s a FLIRS device, it does not support wake up command class | 5 | Factory Reset Procedure | Press the Link button 3 times quickly (within 1.5 seconds). Press quickly (within 1 second) a fourth time and hold down the Link button for at least 5 seconds.
The siren is now reset to factory settings.
Hint:
This procedure should only be used if the primary network controller is not capable of acting.
If the device is set to factory default, the status is set to "not included" and the association settings and possible configurations are reset to default. | 1 | Classic Inclusion | Activate the inclusion mode (teach-in mode) on the Z-Wave controller. (please refer to the Z-Wave controller manual for more details)
Press the "+" button (Add / Inclusion) in your Z-Wave app and follow the instructions to set the Z-Wave controller to inclusion mode.
Keep the device within reach of the Z-Wave controller.
Remove the safety strip from the battery compartment. We recommend the exclusive use of the original GP batteries from the scope of delivery.
The device supports automatic inclusion, i.e. it automatically goes into inclusion mode when it is powered and not yet connected to a Z-Wave controller. The LED starts flashing.
Alternative Inclusion:
If you have already inserted the batteries or removed the security strip, press the Link button 3 times quickly (within 1.5 seconds) to start the inclusion process. | 8 | Where to find S2 DSK on product | The DSK code (Device-Specific Key) is the device-specific key of your device and is required for secure teach-in (inclusion) via S2 on the Z-Wave controller. The first 5 digits of the DSK code can be found on the bottom of the product. Please enter these in the inclusion process when prompted. Alternatively, you can transfer the entire DSK code that you find on the enclosed DSK card to the Z-Wave controller via QR Code Scan. Please keep the DSK card in a safe place! |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Siren | Siren status: Siren active |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
