Product Recognition | |
|---|
Certification Number | ZC10-19106774 |
|---|

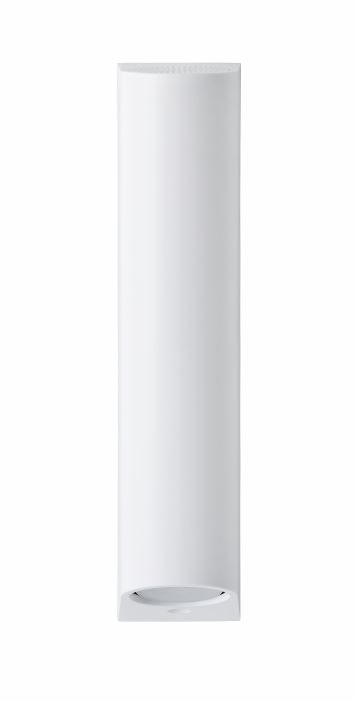

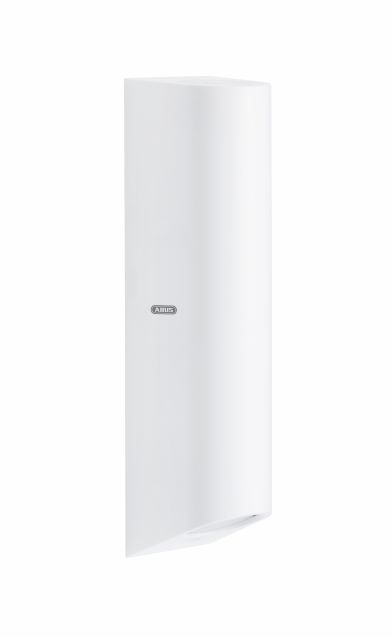

Name | Z-Wave indoor siren |
|---|
Short Description | Loud alarm with 100dB in case of Alarm.
Configured scenes from the Z-Wave Gateway play up to 37 individual voice Messages. |
|---|
Long Description | The ABUS Z-Wave indoor siren offers more than the loud alarm with 100dB in case of alarm.
An additional speaker can play voice messages that provide understandable information about events or status changes of the Z-Wave Gateway. Frequently used notifications are pre-installed, e.g. notifications about activations or deactivations of the security system. Individual notifications can also be transferred to the siren via USB cable and triggered via a Z-Wave gateway.
The siren has tamper protection and is battery operated. The integrated hygrometer provides sensor values for building automation and thus, for example, the heating behaviour can be controlled depending on the temperature and humidity.
Firmware updates can be conveniently uploaded over the air (OTA) and numerous configuration parameters allow individual adjustments, e.g. the duration of the alarm. |
|---|
Brand | ABUS |
|---|
Product Identifier | PLSG10000 |
|---|
Product Line | Z-wave 500 series |
|---|
OEM Version | HW: 1 FW: 1.00:00.01 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0403 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0004 |
|---|
User Icon | 0x0F00 |
|---|
Installer Icon | 0x0F00 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SOUND_SWITCH | Sound Switch | 0x79 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Adv_Manual | Quick Guide | | Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Communications Connections | Value |
|---|
USB (Universal Serial Bus) |
| Color | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | When the device is supplied with power for the first time or the sabotage contact is triggered, the device sends a notification report to the node of group 1.
If the battery level falls below a certain threshold, the device sends a battery report to the node of group 1.
When a factory reset is performed, the device sends a Reset Locally Notification to the node of group 1.
If the status of the siren changes (Piezo Alarm On/Off), the device sends a Switch Binary Report to the node of group 1.
The device sends a multilevel sensor report with temperature and humidity values to the node of group 1. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Parameter 1 | Piezo Sirens Alarm duration | 1 | 2 | 10 | 600 | 180 | From | To | Description |
|---|
10 | 600 | Piezo Sirens Alarm duration |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The Z-Wave QR Code DSK sticker for S2 Inclusion can be found on the top left side of the siren next to the speaker | 5 | Factory Reset Procedure | Press the Link button 3 times quickly (within 1.5 seconds).
Press quickly (within 1 second)
a fourth time and hold the Link button for at least 5 seconds.
The button is now reset to factory settings.
Hint:
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
If the device is set to factory default, the status is set to "not included" and the association settings and possible configurations are reset to default. | 2 | Classic Exclusion | Activate the exclusion mode (learn-out mode) at the gateway. (for further details please refer to the gateways manual)
Press the "-" key (Remove / Exclusion) in your Z-Wave app and follow the instructions to set the gateway to exclusion mode.
Press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device.
The successful exclusion is displayed in the app or at the gateway. | 4 | Wake-Up Procedure | Press the Link button once to wake up the device. It then establishes a connection to the Z-Wave gateway and transmits the current status. | 1 | Classic Inclusion | Activate the inclusion mode (teach-in mode) on the gateway. (for further details please refer to the gateways manual)
Press the "+" key (Add / Inclusion) in your Z-Wave app and follow the instructions to set the gateway to Inclusion mode.
Keep the device within range of the gateway.
Remove the fuse strip from the battery compartment. We recommend the exclusive use of the original GP batteries from the scope of delivery.
The device supports automatic inclusion, i.e. it automatically goes into inclusion mode when it is powered and not yet connected to a gateway. The LED starts flashing.
Alternative Inclusion:
If you have already inserted the batteries or removed the security strip, instead press the Link button 3 times quickly (within 1.5 seconds) to start the inclusion on the device.
The successful inclusion is displayed in the app or on the gateway and the status LED on the device no longer flashes.
Repeat the inclusion process if it was unsuccessful.
If another attempt fails, first perform a factory reset on the device, see 2.4. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Siren | Siren status: Siren active |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
