Certification Number	ZC10-16085164

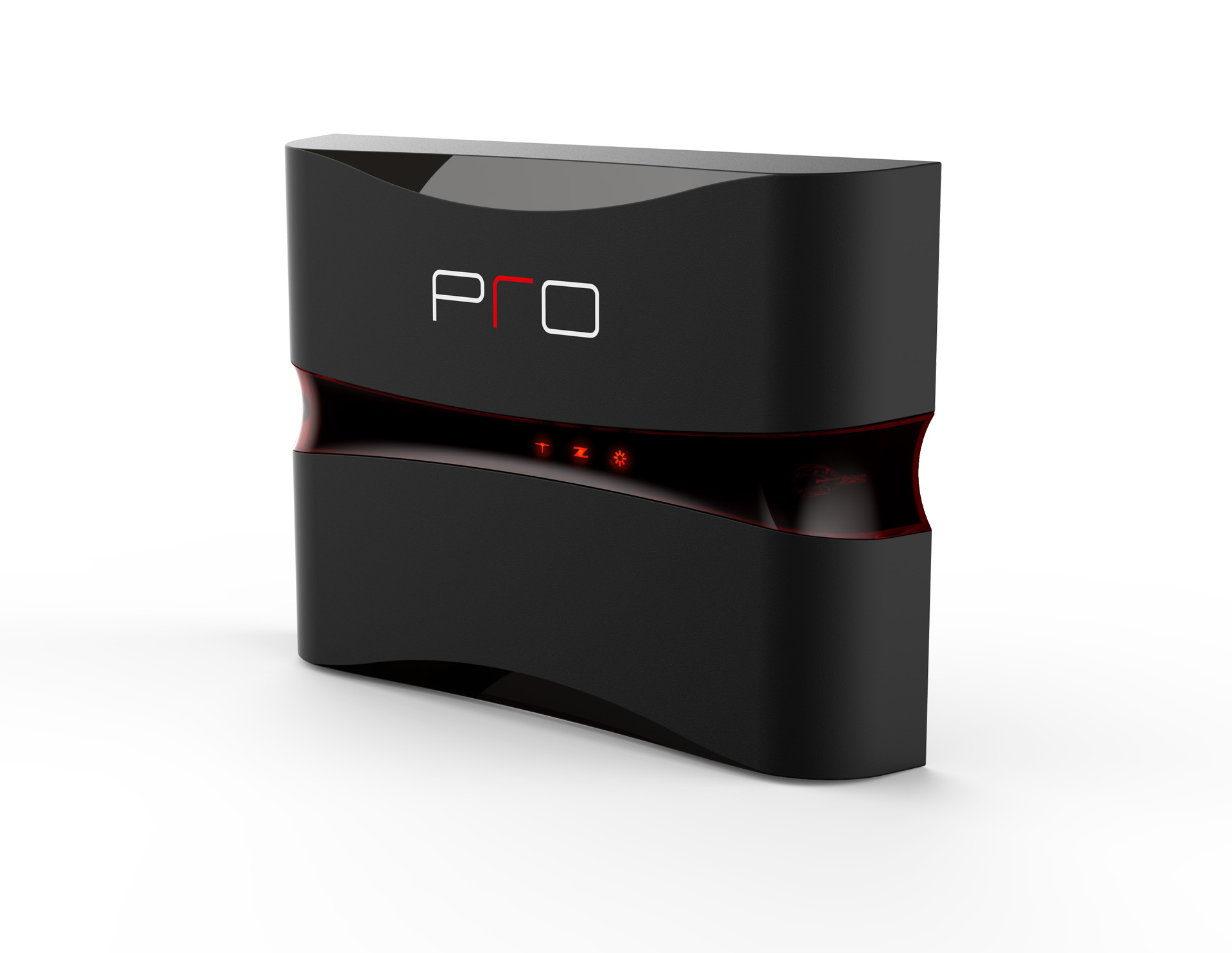

Name	Z-Wave Interface Module
Short Description	Utilizes Z-Wave communication to control and monitor Z-Wave enabled products such as lights, door locks, shades, thermostats and more via an RTI control system.
Long Description	Utilizes Z-Wave communication to control and monitor Z-Wave enabled products such as lights, door locks, shades, thermostats and more via an RTI control system. • Wireless control and monitoring of Z-Wave lighting devices via the RTI control system. • Compatible with a broad range of Z-Wave certified electronics including door locks, security devices, window shades, thermostats and more. • Expandable and scalable system allows control of more than 200 devices. • Programmed using Z-Wave Manager tool from within RTI proprietary programming software (Integration Designer) allowing easy integration into RTI systems.
Brand	Remote Technologies Incorporated
Product Identifier	ZW-9 (IL)
OEM Version	HW: 1 FW: 4.24:01.01
Hardware Platform	ZM5304
Z-Wave Version	6.51.07
Library Type	CONTROLLER_STATIC
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0255
Product Type ID	0x0001
Product ID	0x0001
User Icon	05 00
Installer Icon	01 00
Frequency Plans	IL: 916.00MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	Israel
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION_V2 Association Group Information V2 0x59 0 COMMAND_CLASS_NETWORK_MANAGEMENT_INCLUSION Network Management Inclusion 0x34 1 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_SWITCH_BINARY_V2 Switch Binary V2 0x25 2 COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V4 Thermostat Fan Mode V4 0x44 4 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2 Thermostat Operating State V2 0x42 2 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_NETWORK_MANAGEMENT_PROXY Network Management Proxy 0x52 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_INDICATOR Indicator 0x87 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2 Thermostat Fan State V2 0x45 2 COMMAND_CLASS_THERMOSTAT_MODE_V3 Thermostat Mode V3 0x40 3 COMMAND_CLASS_THERMOSTAT_SETPOINT_V3 Thermostat Setpoint V3 0x43 3 COMMAND_CLASS_TIME_V2 Time V2 0x8A 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_SWITCH_MULTILEVEL_V4 Switch Multilevel V4 0x26 4 COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_CONFIGURATION_V3 Configuration V3 0x70 3 COMMAND_CLASS_DOOR_LOCK_V3 Door Lock V3 0x62 3 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_SCENE_CONTROLLER_CONF Scene Controller Conf 0x2D 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_METER_V4 Meter V4 0x32 4 COMMAND_CLASS_NETWORK_MANAGEMENT_BASIC Network Management Basic 0x4D 1 COMMAND_CLASS_NETWORK_MANAGEMENT_PRIMARY Network Management Primary 0x54 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Pro.zwi Reference Guide v1.1.pdf
Features	Feature Values IP (Ingress Protection) Rated Outdoor Use Color Value Black Communications Connections Value Ethernet (Wired) Communications Protocol Value Manufacturer Proprietary Protocol Controller Supports Multiple Networks Controller Supports Multiple Z-Wave Interfaces Firmware Updatable Value Updatable by Consumer by Wire
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion Start the Add/Include process by selecting Device-Add/Include from the main menu or by selecting the Add/Include button on the main toolbar. It may take a few moments for the device to show up in the list depending on how many devices are already in the network and what type of device is being added. When a device is successfully added you will also hear a beep sound from the computer. 24 Controller Exclusion Start the Remove/Exclude process by selecting Device-Remove/Exclude from the main menu or by selecting the Remove/Exclude button on the main toolbar. Once the dialog box appears, activate the exclude process on the device usually in the form of some type of button press (see the device documentation for more details). As devices are removed from the Z-Wave network they are removed from the Device List. 5 Factory Reset USE THE RESET PROCEDURE ONLY WHEN THE PRIMARY CONTROLLER IS MISSING OR INOPERABLE. Start the Product Reset process by selecting Reset Controller/Start New Installation from the main menu or by selecting the Reset Controller/Start New Installation button on the main toolbar. This is used to set the Pro.zwi to Defaults. The Pro.zwi will become the primary controller, all Z-Wave devices will be removed from its memory and a new HomeID will be assigned. 3 Learn Mode (adding another controller) To Become a Secondary Controller (Learn Mode): First activate the Include process on the third-party Primary Controller device. Then select Learn Mode on the Controller toolbar to activate the Learn Mode on the Pro.zwi. To Become a Primary Controller (Learn Mode): First activate the Include process on the other Primary Controller to add another controller as the Primary Controller. Then select Learn Mode on the Controller toolbar to activate the Learn Mode on the Pro.zwi.
Supports NWI	Yes
Supports Explorer Frames	Yes
