Product Recognition | |
|---|---|
Certification Number | ZC14-23080321 |

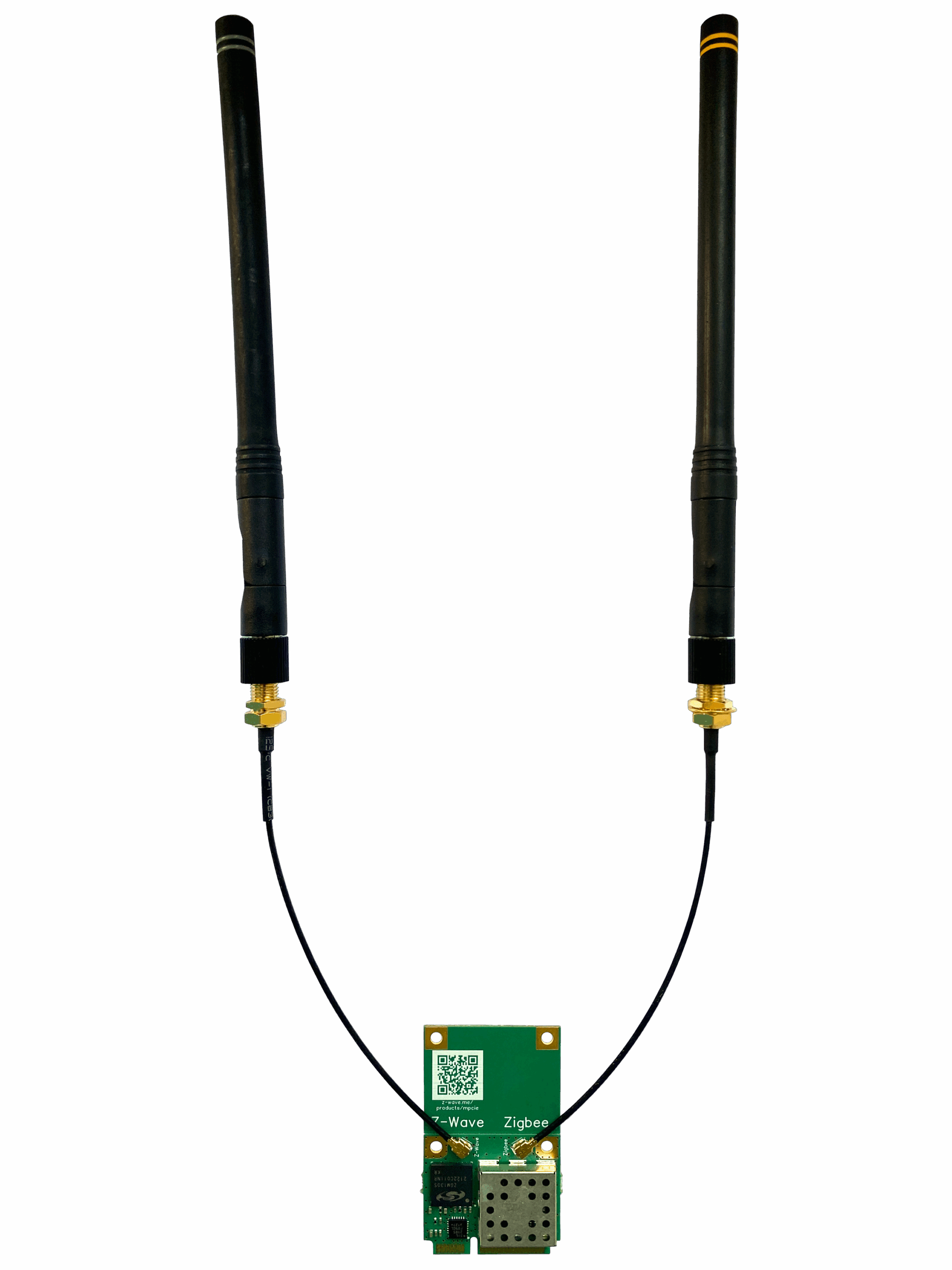

Name | Z-Wave.Me mPCIe adaptor — Z-Wave™ & Zigbee/Thread mPCIe extension board |
Short Description | Z-Wave.Me mPCIe adaptor — Z-Wave & Zigbee/Thread mPCIe extension board. Turns your embedded PC into a Z-Wave™ Smart Home Gateway. Comes with Z-Way software but can also run with third-party solutions that use Z-Wave Serial API. |
Long Description | Designed for embedded platforms with mini PCI Express (mPCIe) slot.
Compatible with open-source projects: Home Assistant, OpenHAB, Domoticz, OpenZWave, FHEM and others.
Z-Wave™ 7th generation inside. Built-in Z-Wave network diagnostics tools. Supports Z-Wave Plus™ V2, Security S2, SmartStart and Long Range. Z-Wave.Me advanced features (on top of the standard Silicon Labs Z-Wave Serial API): Static Serial API to support open-source software, Backup & restore function, Zniffer to monitor Z-Wave traffic, Tunable transmit power for a bigger range, Network diagnostics tools to improve network health, Jamming detection to protect from network DoS attacks. |
Brand | Z-Wave.Me |
Product Identifier | ZME_mPCIe_ZW_ZB |
Product Line | RaZberry |
OEM Version | HW: 3775531298 FW: 00.00 |
Hardware Platform | ZGM130S037HGN2 / ZGM130S037HGN1 |
Z-Wave Version | 7.19.2 |
Library Type | CONTROLLER_BRIDGE |
Device Type | HARDWARE_DEVICE |
Frequency Plans | US_LR: 912.00MHz, 920.00MHz, US: 916.00MHz, 908.40MHz |
Categories | Gateway Controller, Computer Controller Interfaces |
Countries / Regions | United States of America, Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Cayman Islands, Colombia, Guatemala, Haiti, Honduras, Jamaica, Mexico, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands |
Documents | |
Features | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
Radio Range Z-Wave LR (m) | 400 |
