Product Recognition | |
|---|
Certification Number | ZC10-21077045 |
|---|

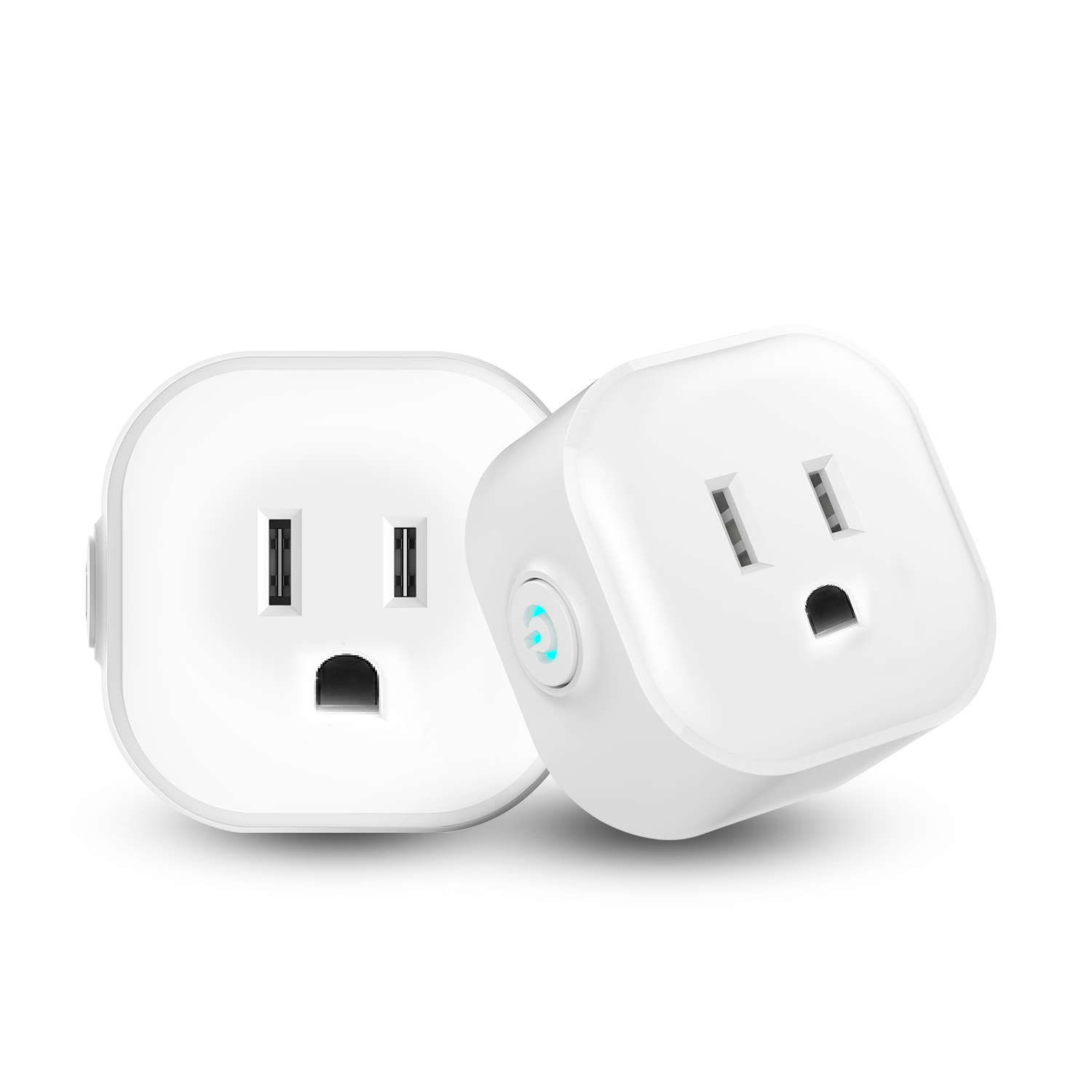

Name | Z-Wave Meter Plug |
|---|
Short Description | It is smart plug type device controlled by Z-Wave™ controller and can be configured in Z-Wave™ sensor network, if Z-Wave ™certified controller features remote access, you can dim lights at home from your mobile phone separately, and manual dim light by push button . |
|---|
Long Description | It is smart plug type device controlled by Z-Wave™ controller and can be configured in Z-Wave™ sensor network, if Z-Wave™ certified controller features remote access, you can dim lights at home from your mobile phone separately, and manual dim light by push button . |
|---|
Brand | Minoston |
|---|
Product Identifier | MP21ZP |
|---|
Product Line | Line A |
|---|
OEM Version | HW: 255 FW: 1.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0xFF00 |
|---|
Product ID | 0xFF0E |
|---|
User Icon | 0x0701 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Switch Load Capacity Watts | | Switch Type | Value |
|---|
Decorator Paddle Push |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 3 | 0 | Lifeline | Z-Wave Lifeline | 3 | 5 | 0 | BASIC SET | basic set command | 2 | 5 | 0 | BASIC SET | When the output of the MP21ZP Enpoint1 socket is changed, On (0xFF) or Off (0x00)orOverload, The MP21ZP will automatically
send out a related basic set command. On (0xFF) or Off (0x00) to its associated group. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Parameter 1 | Restores state after power failure | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
2 | 2 | outlet on | 0 | 0 | The state before a power outage | 1 | 1 | outlet on |
| 2 | Parameter 2 | Power Wattage Report Value Threshold | 1 | 4 | 0 | 65535 | 10 | From | To | Description |
|---|
0 | 65535 | Power Wattage Report Value Threshold(Wattage) |
| 4 | Parameter 4 | Energy (kWh) Report Frequency (Timer) | 1 | 4 | 300 | 2678400 | 300 | From | To | Description |
|---|
300 | 2678400 | Energy (kWh) Report Frequency (Timer) |
| 5 | Parameter 5 | Voltage (V) Report Frequency (Timer) | 1 | 4 | 300 | 2678400 | 300 | From | To | Description |
|---|
300 | 2678400 | Voltage (V) Report Frequency (Timer) |
| 6 | Parameter 6 | Electricity (A) Report Frequency (Timer) | 1 | 4 | 300 | 2678400 | 300 | From | To | Description |
|---|
300 | 2678400 | Electricity (A) Report Frequency (Timer) |
| 8 | Parameter 8 | Endpoint1 Enable Auto Turn-OFF Timer | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Auto Turn-OFF Timer Disabled | 1 | 1 | Auto Turn-OFF Timer Disabled |
| 9 | Parameter 9 | Endpoint1 Count Down Configuration(Turn off the output by time） | 1 | 4 | 1 | 65535 | 60 | From | To | Description |
|---|
1 | 65535 | Endpoint1 Count Down Configuration(Turn off the output by time） |
| 10 | Parameter 10 | Endpoint1 Enable Auto Turn-ON Timer | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Auto Turn-ON Timer Disabled | 1 | 1 | Auto Turn-ON Timer Enabled |
| 11 | Parameter 11 | Endpoint1 Count Down Configuration(Turn on the output by time） | 1 | 4 | 1 | 65535 | 60 | From | To | Description |
|---|
1 | 65535 | Endpoint1 Count Down Configuration(Turn on the output by time） |
| 17 | Parameter 17 | Status LED Configuration | 1 | 1 | 0 | 3 | 1 | From | To | Description |
|---|
0 | 0 | LED indicator will display power consumption whenever the device is plugged in | 1 | 1 | LED indicator will display power consumption whenever the device is ON in and will turn off | 2 | 2 | LED indicator will display the level of power consumption for 5 seconds only whenever the device is turned on | 3 | 3 | Always OFF |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | ADD or Remove the MP21ZP from the existing Z-Wave home control network with your primary controller.
---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
---When prompted by your primary controller, click the PROG button Three times in one second.
Include MP21ZP to/from a Z-Wave Gateway with supporting Security.The MP21ZP can support the Primary Controller that implemented the
Notice: Including a node ID allocated by Z-WaveTM Controller means “Add” or “Inclusion”. Excluding a node ID allocated by
Z-WaveTM Controller means “Remove” or “Exclusion”. | 5 | Factory Reset Procedure | Press the button twice quickly and then press and hold the button 10S.device will reset
(Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable) | 2 | Classic Exclusion | ADD or Remove the MP21ZP from the existing Z-Wave home control network with your primary controller.
---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
---When prompted by your primary controller, click the PROG button Three times in one second.
Include MP21ZP to/from a Z-Wave Gateway with supporting Security.The MP21ZP can support the Primary Controller that implemented the
Notice: Including a node ID allocated by Z-WaveTM Controller means “Add” or “Inclusion”. Excluding a node ID allocated by
Z-WaveTM Controller means “Remove” or “Exclusion”. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | Over-current status: Over-current detected |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
