ZC10-18026015

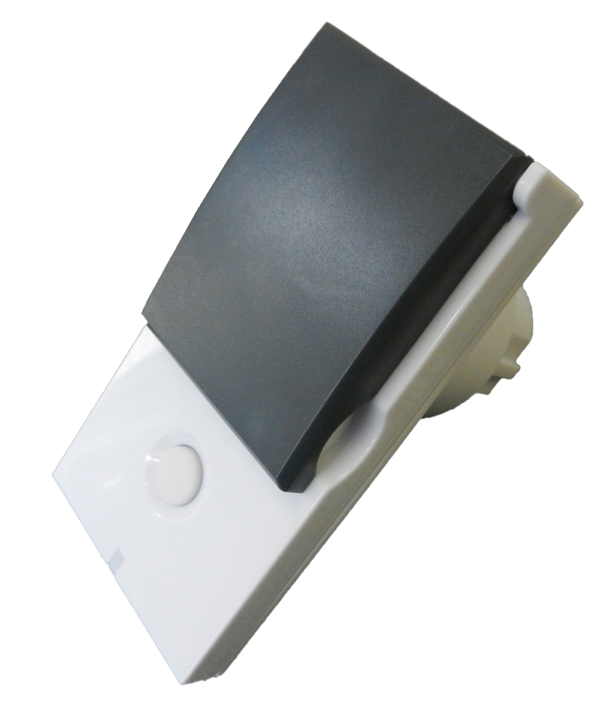

Z-Wave Metering Plug Smart Start

The IP 44Wall Plug Switch Outdoor can be placed between a wall outlet for Schuko plugs and electric devices, plugged in by cord.

The Wall Plug Switch Outdoor can be placed between a wall outlet for Schuko plugs (plug type F) and electric devices, plugged in by cord. It can switch all loads up to 3500 W. The plug switch is IP 44 rated and can therefore be used both in dry as well as humid environments in- and outdoor. Switching is controlled by the local button or wirelessly. The use of the local button and the behavior oon wireless commands can be configured using configuration parameters. Whn detached from the control of local leads the button on the device can be used to trigger scenes in a central gateway. Single click and double click are distinguished. The device is also measuring the mains voltage supply reporting mains voltage and mains frequency. Addtionally the powr consumption of the attached load is monitored as well. All metering values an be requested from the central controller and will be reported unsolicited if configured.

Popp & Co.

POPE700397

HW: 1 FW: 3.01

ZM5101

6.81.00

SLAVE_ENHANCED_232

On/Off Power Switch

ROLE_TYPE_SLAVE_ALWAYS_ON

0x0154

0x0003

0x000A

0x0700

0x0700

EU: 869.85MHz, 868.40MHz

Energy Meters, All Lighting Devices, On/Off Switches/Devices

European Union

S2_UNAUTHENTICATED

Yes

Yes

Yes

40
