Product Recognition
Certification Number	ZC10-17025446

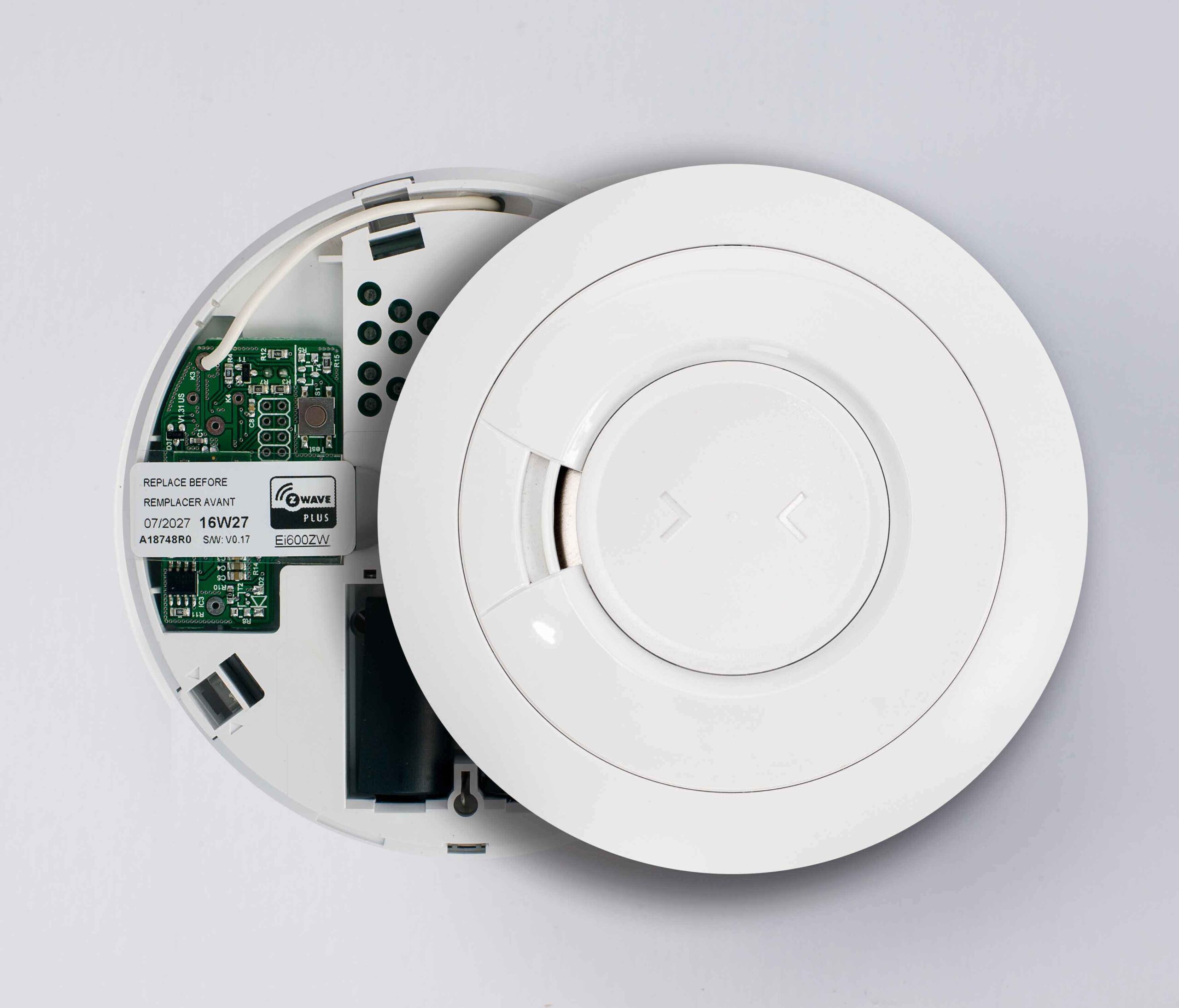

Name	Z-Wave Photoelectric Smoke Alarm
Short Description	Premium quality Z-Wave Photoelectric Smoke Alarm designed to North American standards. The Smoke Alarm will also function as a standalone device and is certified by Underwriters Laboratories to all UL217 requirements. High-performance optical chamber with micro-mesh fixed insect screen reduces the possibility of false alarms.
Long Description	This product consists of a premium quality Photoelectric Smoke Alarm designed to North American standards, combined with a plug-in Z-­Wave wireless communication module. The Smoke Alarm will also function as a standalone device and is certified by Underwriters Laboratories and satisfies all UL217 requirements. Patented, high-performance optical chamber with integral micro-mesh fixed insect screen further reduces the possibility of false alarms. A large test button allows on-device test of smoke chamber, electronics and battery. The device also offers a built-­in self-test and an electronic smoke chamber test making the use of test aerosol unnecessary. A low battery warning will last for 30 days, but full function of the Alarm will continue during this time. The Z-Wave module allows the device to report smoke (EiA650RFZ) or to report smoke, as well as low battery alarms wirelessly to a central Z-Wave Controller.
Brand	Ei Electronics
Product Identifier	EiA650RFZ
OEM Version	HW: 1 FW: 1.02
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x026B
Product Type ID	0x0004
Product ID	0x0004
User Icon	0x0C01
Installer Icon	0x0C01
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SENSOR_BINARY_V2 Sensor Binary V2 0x30 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 Firmware Update Meta-Data V3 0x7A 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 Association Group Information V2 0x59 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual B18579R3SMOKEZWAVEUCUS.pdf
Features	Feature Values Sensors Value Smoke Density Battery Type Value CR123A Battery Quantity Value 2
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 10 0 Z-Wave Plus Lifeline 2 10 0 Alarm Reports. All devices in this group will receive Alarm notifications (Smoke , Battery Low, Tamper) 3 10 0 Switching Command. All devices in this group will receive a BASIC SET command on Smoke Alarms. Configuration parameter 3 and 4 will define when ON and when OFF is sent.
Texts	ID Description Value 1 Inclusion To include the device start the inclusion on your controller and then hit the little button on the wireless module for 1 second 2 Exclusion To exclude the device start the inclusion on your controller and then hit the little button on the wireless module for 1 second 5 Factory Reset To reset the device keep the button pushed for 10 seconds. After 5 seconds the led starts flashing and after another 5 seconds there is a short beep signaling the successful reset back to factory defaults. Use this procedure only when the network primary controller is missing or otherwise inoperable.
Supported Multilevel Sensors	Multilevel Sensor Type Smoke density
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
