Product Recognition
Certification NumberZC08-11080008

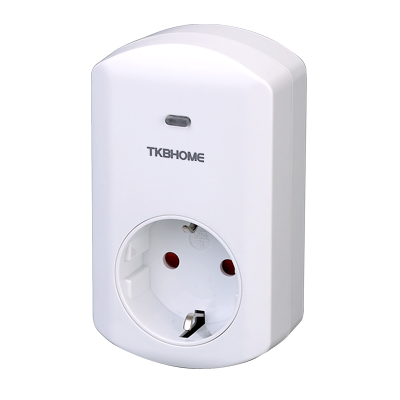

NameZ-Wave Plug-in Dimmer
Long DescriptionZ67G Z-Wave Plug-in Dimmer Module FEATURES: • Provides wireless dimming of lights, and ON/OFF control of lights connected to the Plug-In Lamp Module. • Plugs directly into wall outlet and provides a switched 230 VAC source. The programming button on the module is also a manual on and off switch. • Each Plug-In Lamp Module functions as an automatic repeater to other Z-WAVE Modules to ensure full home coverage. APPLICATIONS SAFETY AND SECURITY • ALL ON/ALL OFF - With the Wireless Controller you can turn all connected lights on or off with the touch of one button in case you come home late or hear noises in the night • Burglar Deterrent - The Wireless Controller can be programmed to randomly turn Lamp Modules on or off at selected times through out the house. Lights connected to Lamp Modules simulate the appearance that someone is home. • Child Protection programmed from the Wireless Controller can lock the Lamp Module "OFF" providing extra safety. COMFORT AND CONVENIENCE • Scenes Plug-In Lamp Modules allow connected lighting to respond to Scene settings. The Wireless Controller can be programmed to preset different light levels, and then with the push of a button select "dinner scene", "watch TV scene", "evening scene", or whatever lighting level combination you choose. • Dimming the lights saves on electric bills. • Plug-In Dimmer Module allows your Wireless Controller to adjust various lights regardless of whether you’re in the kitchen, lying on the couch or on your way out the door. • Grouping activates several, or all Plug-In Lamp Modules (and their connected lights), by the push one of buttons on the Wireless Controller. No more wandering from lamp to lamp when you come home, or you’re on your way to bed. • The Timer on the Wireless Controller lets you set plug-in Lamp Module (and connected lights) to turn on at preset times.
BrandTKB Home
Product IdentifierTZ67G
OEM VersionTZ67 v3.0
Hardware PlatformZM3102
Z-Wave Version5.02 (PATCH 3)
Library TypeSLAVE_ROUTING
Device TypeNot Z-Wave Plus
Manufacturer ID0x0118
Product Type ID0x0202
Product ID0x0611
Frequency PlansEU: 869.85MHz, 868.40MHz
CategoriesAll Lighting Devices, Dimming Lighting Devices
Countries / RegionsEuropean Union
Controlled Command Classes
Documents
