Product Recognition | |
|---|
Certification Number | ZC10-18025997 |
|---|

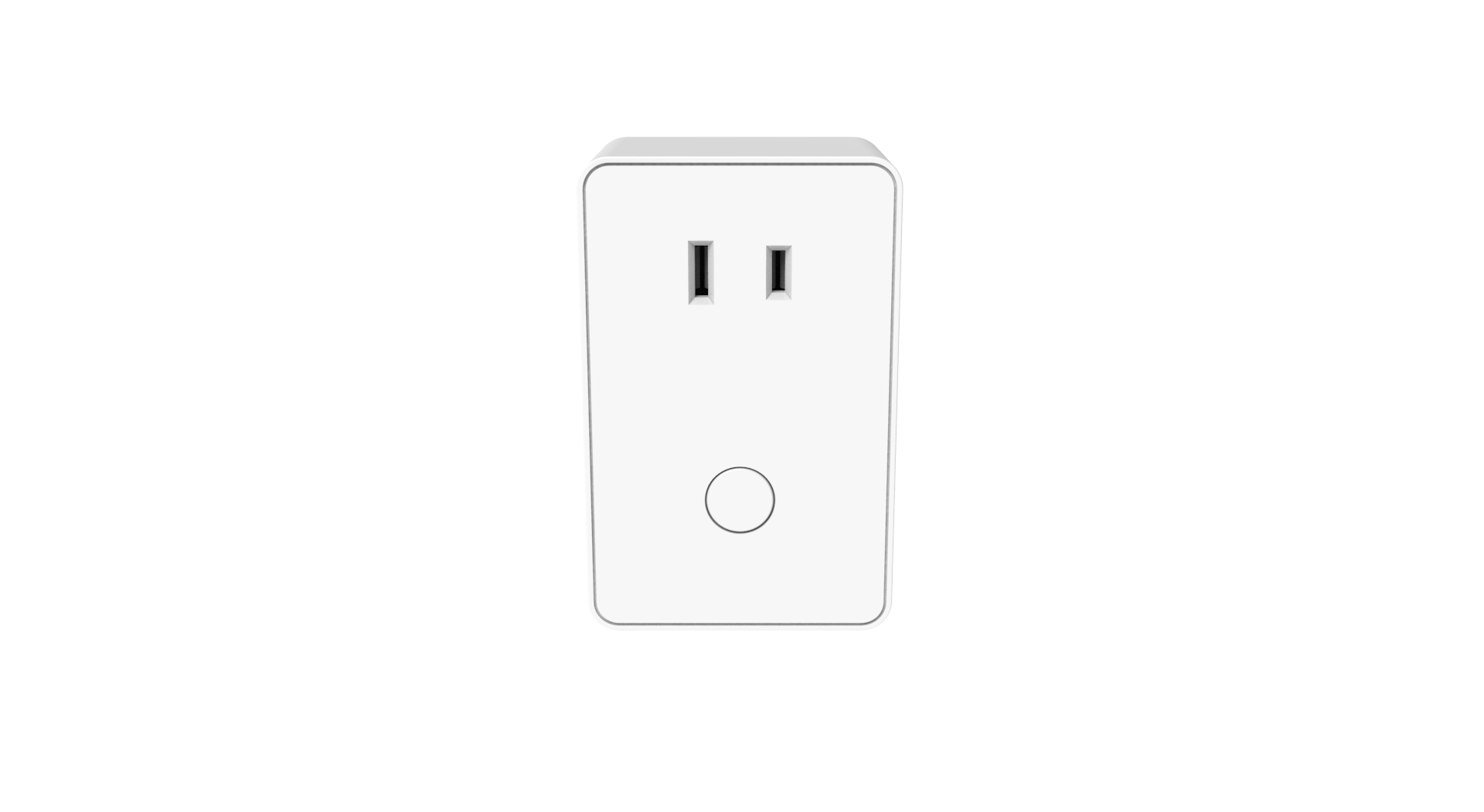

Name | Z-Wave Plug-In Dimmer |
|---|
Short Description | ZLINK PD-100 is a Z-Wave Plug-In dimmer designed for wireless on-off-dim control of connected dimmable lamps. |
|---|
Long Description | ZLINK PD-100 is a Z-Wave Plus certified device with S2 security and SmartStart features. You can now add this device securely and with ease using QR code on the product with compatible gateways supporting S2 and Smart Start. PD-100 communicates with other Z-Wave certified devices and updates your home into a smart home. PD-100 can be used to turn any plug in lamps into a smart lamp with dimmable light bulbs, turning it On, Off, or control dimming wirelessly. Each Z-Wave device also serves as a node to repeat the signal in the network, thus, extending the overall Z-Wave mesh wireless network range.
Additional Features:
• Power 120 VAC, 60Hz, up to 300 watts
• Region US: 908.4, 916 MHz
• Works w/ most incandescent, dimmable CFL & LED lights
• Plugs into Standard AC outlet
• Remotely controls On, Off, or Dim levels
• Control lights via schedule
• LED backlit manual On/Off button
• Second wall AC outlet remains free
• Works with any certified gateway supporting Z-Wave |
|---|
Brand | ZLINK |
|---|
Product Identifier | PD-100 |
|---|
OEM Version | HW: 255 FW: 50.03 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0315 |
|---|
Product Type ID | 0x4744 |
|---|
Product ID | 0x3032 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_CONFIGURATION_V3 | Configuration V3 | 0x70 | 3 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Outdoor Use | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Volt-Ampere | | Switch Type | Value |
|---|
Push Button Illuminated |
| Electric Load Type | Value |
|---|
Incandescent | Fluorescent | LED | Dimmable LED | Dimmable Fluorescent |
| Switch Load Capacity Current | | Switch Load Capacity Watts | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | 1. Z-Wave Plus Lifeline
2. Device Reset Locally Notification |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
9 | Level | Parameter 9 indicates the number of levels when the lighting when the timer runs out. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 99 | Parameter 9 indicates the number of levels when the lighting when the timer runs out. |
| 3 | Night Light | The LED indicator will be OFF when the connected light is ON and vice versa. When value =0 the LED indicator will be OFF when the the connected light is ON, and the LED will be ON when the connected light is OFF. If value =1 the LED indicator will be ON when the connected light is ON, and the LED indicator will be OFF when the connected light is OFF. If value =2 the LED indicator will always be OFF regardless of the load status | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 2 | When value =0 the LED indicator will be OFF when the the connected light is ON, and the LED will be ON when the connected light is OFF. If value =1 the LED indicator will be ON when the connected light is ON, and the LED indicator will be OFF when the connected light is OFF. If value =2 the LED indicator will always be OFF regardless of the load status |
| 10 | Timer | Parameter 10 indicates the time duration of each level. The resolution is 10 milliseconds. For example a default value of 3 means the timer runs out every 30 milliseconds. | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 255 | Parameter 10 indicates the time duration of each level. The resolution is 10 milliseconds. For example a default value of 3 means the timer runs out every 30 milliseconds. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Place your Z-Wave controller in ""Inclusion"" mode. Then tap the button once to initiation Inclusion. | 2 | Exclusion | Place your Z-Wave controller in ""Exclusion"" mode. Then tap the button to initiation Exclusion. | 5 | Factory Reset | 1. Unplug the PD-100 from the AC outlet and also unplug the power plugs of the lighting from the module (if plugged in)
2. Press and hold the button on the PD-100
3. Plug the PD-100 back into the AC outlet with the button pressed
After 3 seconds, release the button. If you see the button blink, that means that PD-100 has been reset successfully.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
