Product Recognition | |
|---|
Certification Number | ZC10-18046088 |
|---|

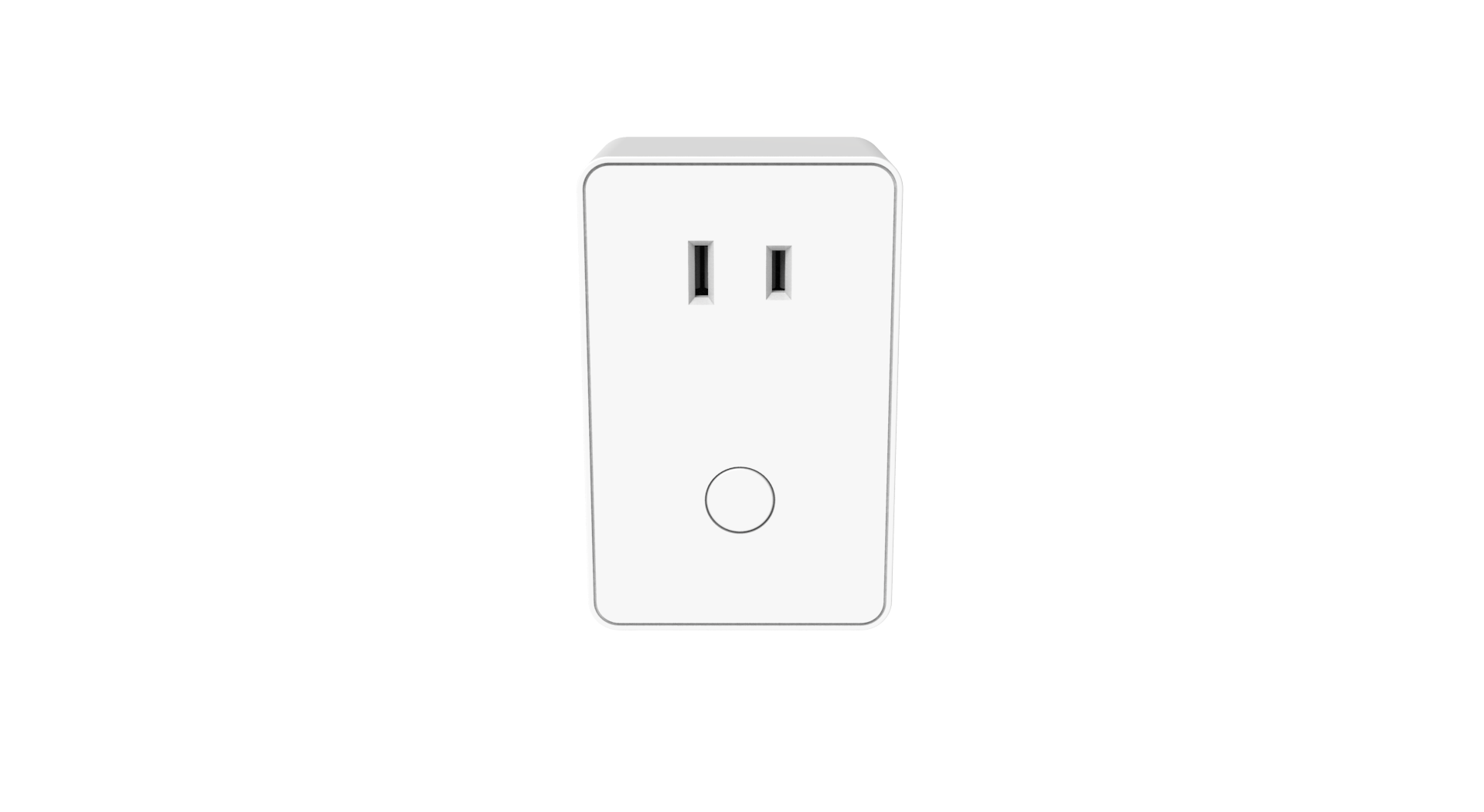

Name | Z-Wave Plug-In Dimmer |
|---|
Short Description | The IQ Dimmer (QZ2140-840) is a Z-Wave Plug-In dimmer that’s designed for wireless on-off-dim control of connected dimmable lighting loads. |
|---|
Long Description | The IQ Dimmer is a Z-Wave Plus certified device with S2 security and SmartStart features. You can now add this device securely and with ease using QR code on the product with compatible gateways supporting S2 and SmartStart. The IQ Dimmer communicates with other Z-Wave certified devices and updates your home into a smart home. The IQ Dimmer can be used to turn any plug in lamps into a smart lamp with dimmable light bulbs, turning it On, Off, or control dimming wirelessly. Each Z-Wave device also serves as a node to repeat the signal in the network, thus, extending the overall Z-Wave mesh wireless network range.
Additional Features:
• Power 120 VAC, 60Hz, up to 300 watts
• Region US: 908.4, 916 MHz
• Works w/ most incandescent, dimmable CFL & LED lights
• Plugs into Standard AC outlet
• Remotely controls On, Off, or Dim levels
• Control lights via schedule
• LED backlit manual On/Off button
• Second wall AC outlet remains free
• Works with any certified gateway supporting Z-Wave |
|---|
Brand | Qolsys Inc. |
|---|
Product Identifier | QZ2140-840 |
|---|
OEM Version | HW: 255 FW: 50.03 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x012A |
|---|
Product Type ID | 0x4744 |
|---|
Product ID | 0x3032 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_CONFIGURATION_V3 | Configuration V3 | 0x70 | 3 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Current | | Color | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Outdoor Use | | Switch Type | Value |
|---|
Push Button Illuminated |
| Electric Load Type | Value |
|---|
Incandescent | Fluorescent | LED | Dimmable LED | Dimmable Fluorescent |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | 1. Z-Wave Plus Lifeline
2. Device Reset Locally Notification |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Night Light | The LED indicator will be OFF when the connected light is ON and vice versa. When value =0 the LED indicator will be OFF when the the connected light is ON, and the LED will be ON when the connected light is OFF. If value =1 the LED indicator will be ON when the connected light is ON, and the LED indicator will be OFF when the connected light is OFF. If value =2 the LED indicator will always be OFF regardless of the load status | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 2 | When value =0 the LED indicator will be OFF when the the connected light is ON, and the LED will be ON when the connected light is OFF. If value =1 the LED indicator will be ON when the connected light is ON, and the LED indicator will be OFF when the connected light is OFF. If value =2 the LED indicator will always be OFF regardless of the load status |
| 9 | Dimming Resolution Level | Parameter 9 indicates the number of dimming levels. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 99 | Valid Values: 1-99, indicates the number of dimming levels. |
| 10 | Timer | Parameter 10 indicates the time duration of each level. | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 255 | Valid Values: 1-255, indicates the time duration of each level. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Place your network controller into inclusion mode by following the controller manufacturer's instructions.
2. When the controller is ready, single click the button on the front of the IQ Dimmer. The controller should indicate that the new device was added successfully.
3. Once the IQ Dimmer has been successfully added to your home network, you can move it to the preferred location in the home | 2 | Exclusion | 1. Place your network controller into exclusion mode by following the controller manufacturer's instructions.
2. When the controller is ready, single click the button on the front of the IQ Dimmer. The controller should indicate that the new device was removed successfully.
3. Once the IQ Dimmer has been successfully added to your home network, you can move it to the preferred location in the home | 5 | Factory Reset | 1. Unplug the IQ Dimmer from the AC outlet and also unplug the power plugs of the lighting from the module (if plugged in)
2. Press and hold the button on the IQ Dimmer
3. Plug the IQ Dimmer back into the AC outlet with the button pressed. After 3 seconds, release the button. If you see the button blink, that means that IQ Dimmer has been reset successfully.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
