| Product Recognition | |
|---|
| Certification Number | ZC10-16105287 |
|---|

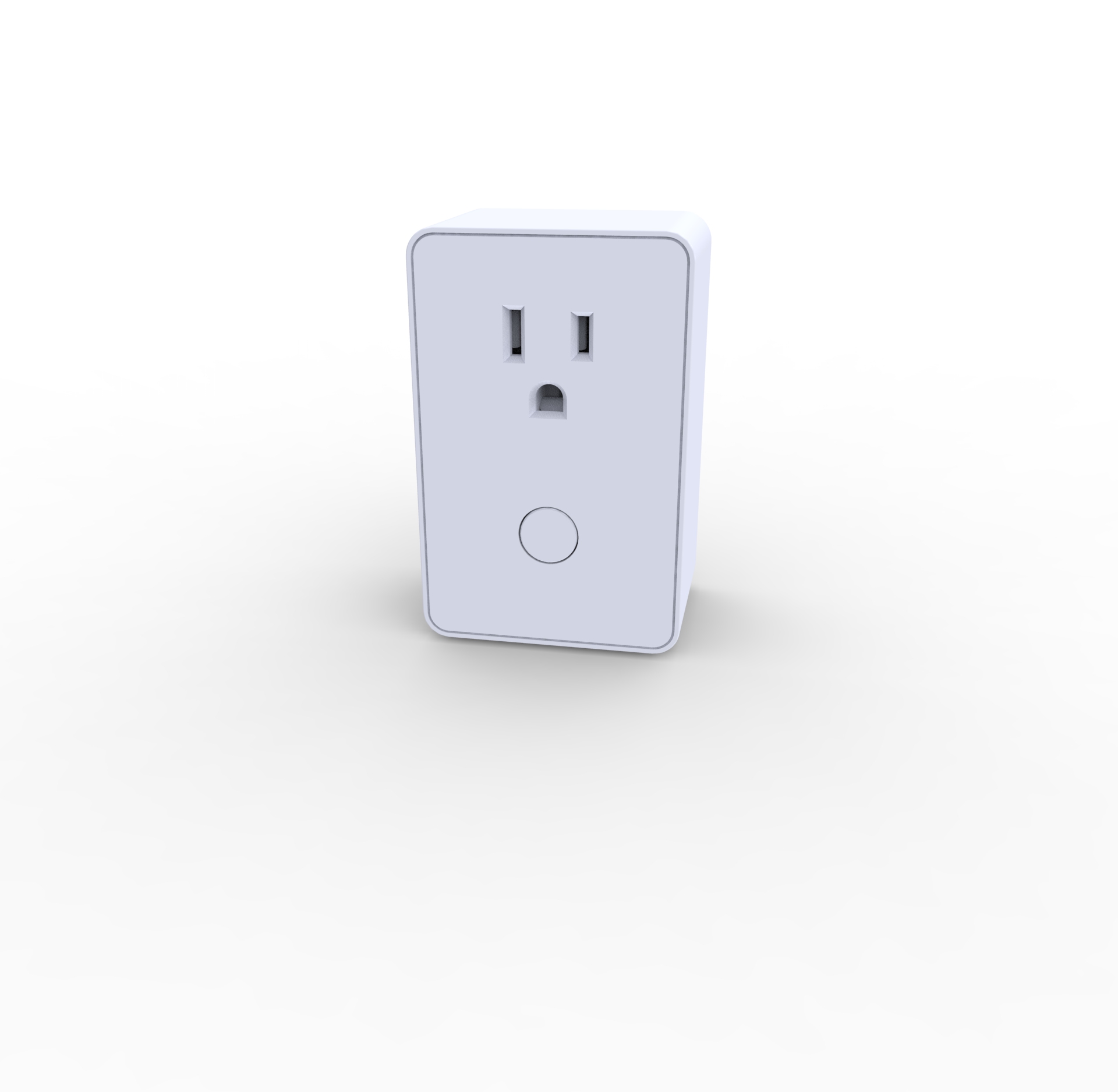

| Name | Z-Wave Plug-In On/Off Appliance Module |
|---|
| Short Description | The 86-100 is plug-in non-dimming switch which can turn On or Off lights and appliances. The 86-100 also acts as a Z-Wave signal repeater.
Key Specifications:
120VAC/60Hz
Incandescent: 900Watts, CFL/LED: 200Watts
Motor: 1/2HP
Resistive Load: 15Amps |
|---|
| Long Description | The 86-100 plug-in is a non-dimming switch which plugs into a standard AC outlet, and allows remote control of On, Off lights and AC operated appliances. Compact design allows second wall AC outlet to remain free. Serves as a node to repeat the signal in the network, extending the overall Z-Wave mesh wireless network range
The 86-100 uses the latest 500 series Z-Wave chip for longer range, over-air-firmware update, and easier inclusion process, providing these features are also supported by the gateway or controller. |
|---|
| Brand | SATCO |
|---|
| Product Identifier | 86-100 |
|---|
| OEM Version | HW: 255 FW: 5.13 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | On/Off Power Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x0307 |
|---|
| Product Type ID | 0x4447 |
|---|
| Product ID | 0x3031 |
|---|
| User Icon | 0x0600 |
|---|
| Installer Icon | 0x0600 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Supported Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 |
|
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Color | | | Firmware Updatable | | Value |
|---|
| Updatable by Professional/Technician |
| | Outdoor Use | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 3 | LED Indicator | The LED indicator will be ON whenever the connected appliance is Off, and turns OFF when the connected device is ON. | 0 | 1 | 0 | 0 | 0 | | From | To | Description |
|---|
| 0 | 0 | the LED indicator will be OFF when the connected appliance is ON, and the LED indicator will be ON when the connected appliance is OFF | | 1 | 1 | the LED indicator will be ON when the connected appliance is ON, and the LED indicator will be OFF when the connected appliance is OFF | | 2 | 2 | the LED indicator is always OFF regardless of the load condition |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | 1. Put your network controller into inclusion mode following the instructions from your controller manufacturer
2. When the controller is ready, single click the button on the front of 86-100
3. The controller should indicate that the new device was added successfully | | 2 | Exclusion | 1. Put your network controller into exclusion mode following the instructions from your controller manufacturer
2. When the controller is ready, single click the button on the front of 86-100
3. The controller should indicate that the device was excluded successfully | | 5 | Factory Reset | Use this procedure only in the event that the network primary controller is lost or otherwise inoperable.
a. Unplug 86-100 from the AC outlet and also unplug the power plug of the appliance from the module(if plugged in)
b. Press and hold the button on the 86-100 module
c. Plug the 86-100 back into the AC outlet with the button pressed
d. After 3 seconds, release the button. If you see the button blinks, that means the module has been reset successfully |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
