Product Recognition | |
|---|
Certification Number | ZC12-21050230 |
|---|

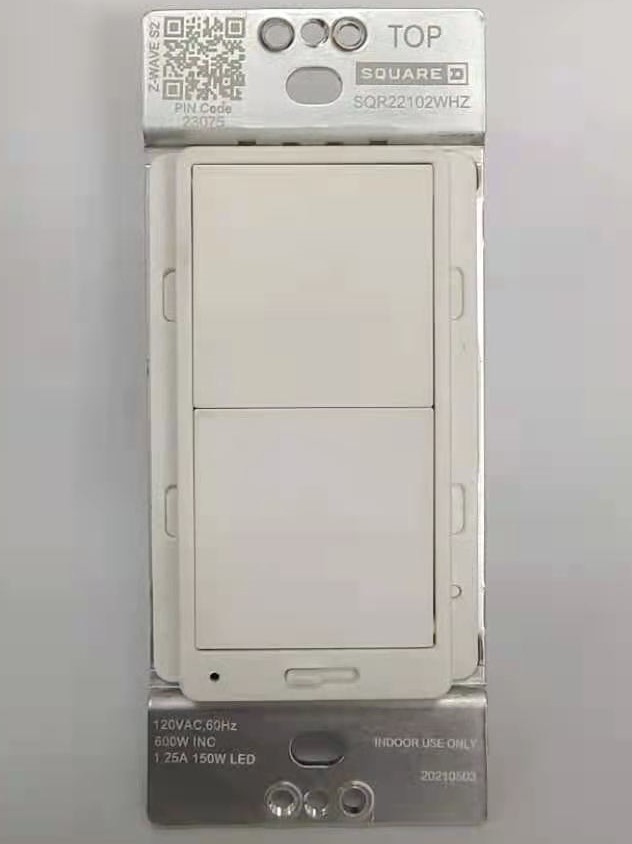

Name | Z-Wave Plus Dimmer |
|---|
Short Description | Z-WAVE REMOTE DIMMER SWITCH |
|---|
Long Description | The Square D 600W Z-Wave Plus Energy Monitoring Dimmer is the professionals choice for secure reliable lighting control. For use in areas where variable lighting is a requirement like the living room where you want bright light for reading on the couch or dim lighting for watching a movie. Perfect for monitoring energy usage and determining cost savings associated with dimming lights. It works with any Z-Wave hub and can be grouped with up to 5 other Z-Wave Plus devices. |
|---|
Brand | Square D |
|---|
Product Identifier | SQR22102**Z (** means the color code) |
|---|
Product Line | Z-Wave Plus Devices |
|---|
OEM Version | HW: 1 FW: 1.10 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Multilevel Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0447 |
|---|
Product Type ID | 0x000E |
|---|
Product ID | 0x1202 |
|---|
User Icon | 0x1C00 |
|---|
Installer Icon | 0x1C00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_PROTECTION_V2 | Protection V2 | 0x75 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_METER_V5 | Meter V5 | 0x32 | 5 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Adv_Manual | Advanced Information Product Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | Members of this group will receive unsolicited messages related to the status of the
Dimmer.
Switch Multilevel Report:
Changings of load caused by user action or receiving of Switch Multilevel Set or Basic Set CC will
trigger this cc.
Meter Report:
Power or energy changings will trigger this cc.
Device Reset Locally:
Long press the Dimmer Reset Button fot more than 20 seconds will trigger this cc.
Indicator Report:
Receiving Indicator Set will trigger this CC. | 2 | 5 | 0 | Dimmer Control | 0x2001 | Switch Multilevel set:
Sends Switch Multilevel set to associated devices, when press UP Button and DOWN Button at
same time.
Switch Multilevel Start Level Change:
Sends Switch Multilevel Start Level Chang to associated devices, when Press and Hold(>1s) UP
Button and DOWN Button at same time.
Switch Multilevel Stop Level Change:
Sends Switch Multilevel Stop Level Change to associated devices, when Release UP Button and
DOWN Button at same time. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | LED indicator Status | Synchronization of load power and LED indicator | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Power On, LED Off; | 1 | 1 | Power On, LED On; |
| 2 | Delayed OFF Time | Delay off means when users press button to turn off the load, there’s a reaction time. | 2 | 1 | 0 | 240 | 0 | From | To | Description |
|---|
0 | 240 | Delay off time. |
| 3 | Power On Status | When the device is powered on, the initial status | 2 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
1 | 1 | Off | 2 | 2 | On(max level) | 3 | 3 | Last State |
| 4 | Child Lockout Enable | Child lockout feature can enabled and disabled local control | 2 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 1 | Enable |
| 6 | Kickstart Enable | This feature ensures lamp start-up even at low dim levels, Kickstart level: 40%. | 2 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 1 | Enable |
| 5 | Dimmer Fading up Time | This changes the speed in which the attached light dims up or down. A setting of 0 should turn the light immediately on or off (almost like an on/off switch). Increasing the value should slow down the transition speed. The value represents the time required to adjust the brightness to100%. | 2 | 1 | 0 | 180 | 3 | From | To | Description |
|---|
0 | 180 | Fading up time (the time from off to full brightness) |
| 8 | Set Max. Dim Level | The maximum level that the dimmer allows the bulb to be dimmed to. Useful when the user has an LED bulb that reaches its maximum level before the dimmer value of 99. | 2 | 1 | 55 | 99 | 99 | From | To | Description |
|---|
55 | 99 | Set Max. Dim Level |
| 7 | Set Min. Dim Level | The minimum level that the dimmer allows the bulb to be dimmed to.Useful when the user has an LED bulb that does not turn on or flickers at a lower level. | 2 | 1 | 1 | 45 | 1 | From | To | Description |
|---|
1 | 45 | Set Min. Dim Level |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The DSK can be found on the product . | 1 | Classic Inclusion | Quick click x3, within 1.5s/ interval <0.5s | 2 | Classic Exclusion | Quick click x3, within 1.5s/ interval <0.5s | 5 | Factory Reset Procedure | Long Press> 20s
Reset button |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
