Product Recognition

Certification Number

ZC10-19096759

Name

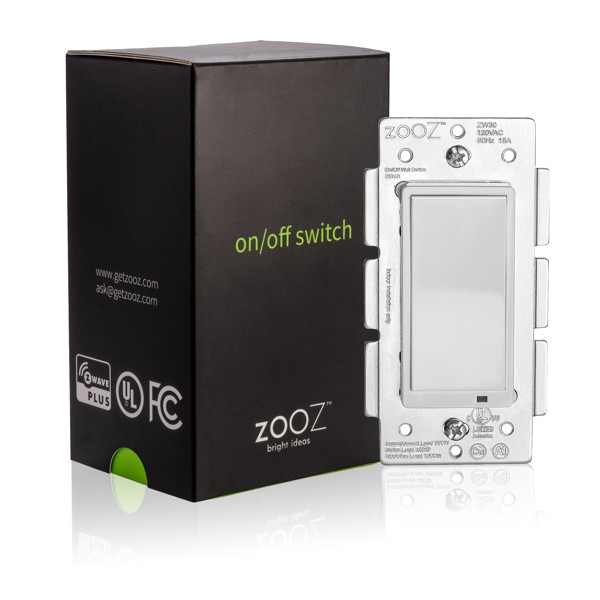

Z-WAVE PLUS ON / OFF LIGHT SWITCH

Short Description

Use this switch as direct replacement for your single pole or 3-way light switches to gain instant Z-Wave control.

Long Description

PRODUCT HIGHLIGHTS: - Reliable on/off control for incandescent and LED lights - Unique Direct 3-Way Solution: no add-on switch needed (Neutral wire required) - Scene control (double tap as trigger) - Instant status reports - Advanced settings (built-in timer, LED indicator mode, paddle control, and more) PRODUCT SPECS: - Z-Wave Frequency: 908.42 MHz (US) - Power: 120 VAC, 60 Hz - Maximum Loads: 960W Incandescent, 150W LED and CFL bulbs, 1800W (15A) Resistive - Z-Wave Range: Up to 100 feet line of sight between the Wireless - Controller and the closest Z-Wave receiver module - Operating Temperature: 32-104° F (0-40° C) - Installation: Indoor use only

Brand

Zooz

Product Identifier

ZEN21 VER 3.0

Product Line

OEM Version

HW: 1 FW: 1.00

Hardware Platform

ZM5202

Z-Wave Version

6.81.03

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x027A

Product Type ID

0xAA00

Product ID

0xAA01

User Icon

0x0704

Installer Icon

0x0700

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Lighting Devices, On/Off Switches/Devices

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Set Auto Turn-Off Timer

Use this parameter to set the time after which you want the switch to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.

65535

From	To	Description
1	65535	minutes

Enable/Disable Scene Control

Enable or disable scene control functionality for quick double tap triggers.

From	To	Description
0	1	0 – scene control disabled (default). 1 – scene control enabled.

Enable / Disable Auto Turn-Off Timer

Use this parameter to enable or disable the auto turn-on timer function.

From	To	Description
0	1	0 – timer disabled (default); 1 – timer enabled.

Set Auto Turn-On Timer

Use this parameter to set the time after which you want the switch to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.

65535

From	To	Description
1	65535	minutes

On Off Status After Power Failure

Set the on off status for the switch after power failure.

From	To	Description
0	0	0 – forced to OFF (regardless of state prior to power outage)
1	1	forced to ON
2	2	remembers and restores on/off status a􀈇er power failure (default)

Enable/Disable Paddle Control

Enable or disable local on/off control. If enabled, you’ll only be able to control the connected light via Z-Wave. Scenes and other functionality will still be available through paddles.

From	To	Description
0	1	0 – local control disabled. 1 – local control enabled (default).

Paddle Control

Choose if you want the upper paddle to turn the light on or turn the light off when tapped.

From	To	Description
0	2	0 – Upper paddle turns the light on, lower paddle turns the light off (default); 1 – Upper paddle turns the light off, lower paddle turns the light on; 2 – Any paddle will turn light on / off depending on the status.

LED Indicator Control

Choose if you want the LED indicator to turn on when the switch (light) is on or off, or if you want it to remain on or off at all times.

From	To	Description
0	0	LED indicator is on when switch is off, LED indicator is off when switch is on (default)
1	1	LED indicator is on when switch is on, LED indicator is off when switch is off
2	2	LED indicator is always OFF
3	3	LED indicator is always ON

Enable / Disable Auto Turn-Off Timer

Use this parameter to enable or disable the auto turn-off timer function.

From	To	Description
0	1	0 – timer disabled (default); 1 – timer enabled.

Texts

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
