Product Recognition
Certification Number	ZC10-17025450

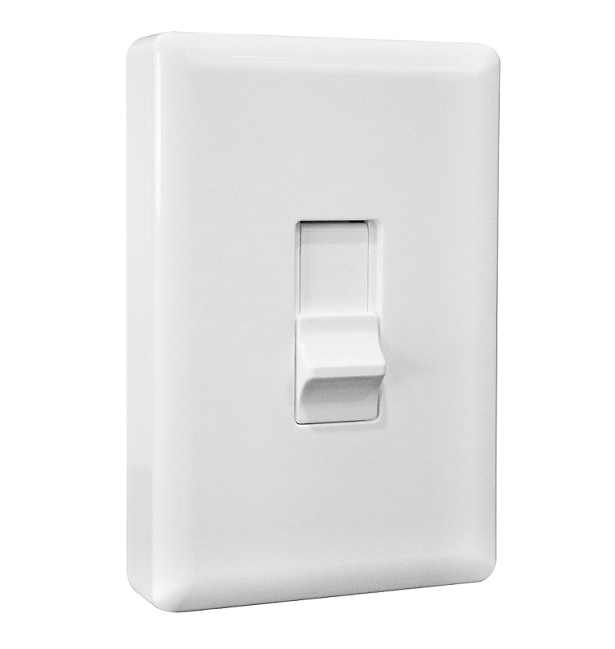

Name	Z-Wave Plus Single Gang Toggle Wireless Light Switch
Short Description	The Z-Wave Plus Single Gang Toggle Wireless Light Switch is Ecolink's battery powered light switch cover that allows remote control of the lights within a house via Z-Wave Plus Certified Connection.
Long Description	Easy to install in one minute by removing the existing switch plate and installing the Z-Wave Plus Single Gang Toggle Wireless Light Switch on the switch. No need to touch any electrical wiring. Product Specifications: • For indoor use only • Operating frequency: 908.42 MHz • Operating temperature: 0° – 49°C, 32° – 120°F (ambient temperature) • Operating humidity 5-95% non-condensing • 2 AA batteries • Battery Life: Approximatly 1 year
Brand	Ecolink Intelligent Technology
Product Identifier	TLS-ZWAVE5
OEM Version	HW: 255 FW: 10.01
Hardware Platform	ZM5202
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x014A
Product Type ID	0x0006
Product ID	0x0002
User Icon	0x1D00
Installer Icon	0x1D00
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Lighting Accessories
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Ecolink Toggle Light Switch Manual Rev1.pdf
Features	Feature Values Battery Quantity Value 2 Battery Type Value AA, Alkaline Color Value White Firmware Updatable Value Updatable by Consumer by RF Switch Type Value Toggle
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 2 Exclusion 1) Any Z-Wave Plus Device can be removed from any Z-Wave Plus controller. Follow the directions to put your Z-Wave Plus Controller into exclusion mode. 2) Press the inclusion / exclusion button on the Z-Wave Plus Decora Light Switch. 1 Inclusion The Z-Wave Plus Toggle Light Switch must be added to a Z-Wave Plus network prior to use. To include the device in a network both the device and the network controller must be in inclusion mode at the same time. Refer to the instructions provided by the manufacturer of your specific controller for details on initiating the controller’s inclusion mode. 1) Verify that the Z-Wave Plus controller you are using is compatible with the Z-Wave Plus Decora Light Switch. 2) Locate the light switch desired to be used with the Z-Wave Plus Decora Light Switch. 3) Put your Z-Wave Plus Controller into add (inclusion) mode. 4) Press the inclusion button on the Z-Wave Plus Decora Light Switch. (Figure 1) 5) The LED on the front of the unit will turn off if successfully included into a network. 5 Factory Reset The Z-Wave Plus device is automatically factory defaulted when removed from a Z-Wave Plus network. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
