Product Recognition | |
|---|---|
Certification Number | ZC10-20016847 |

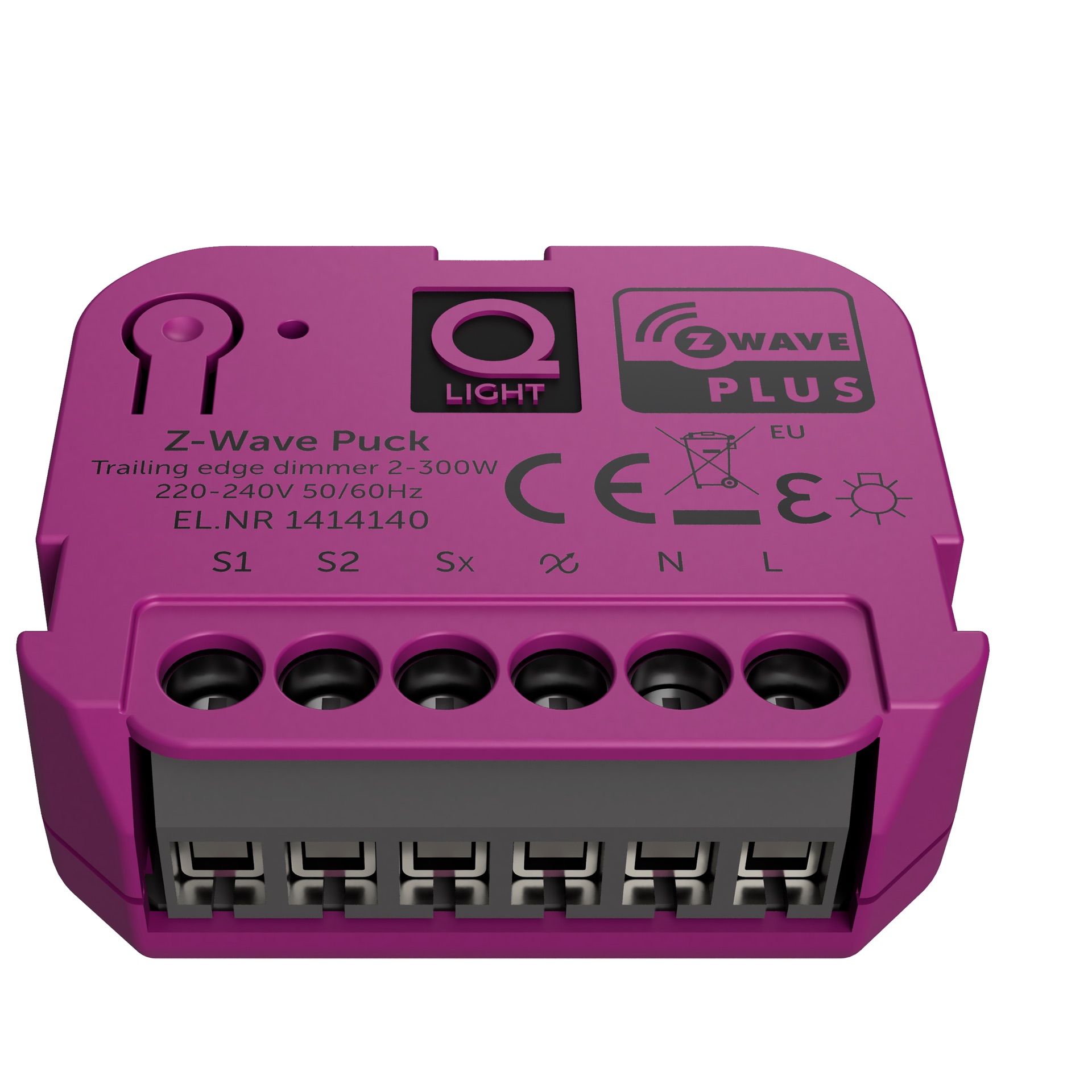

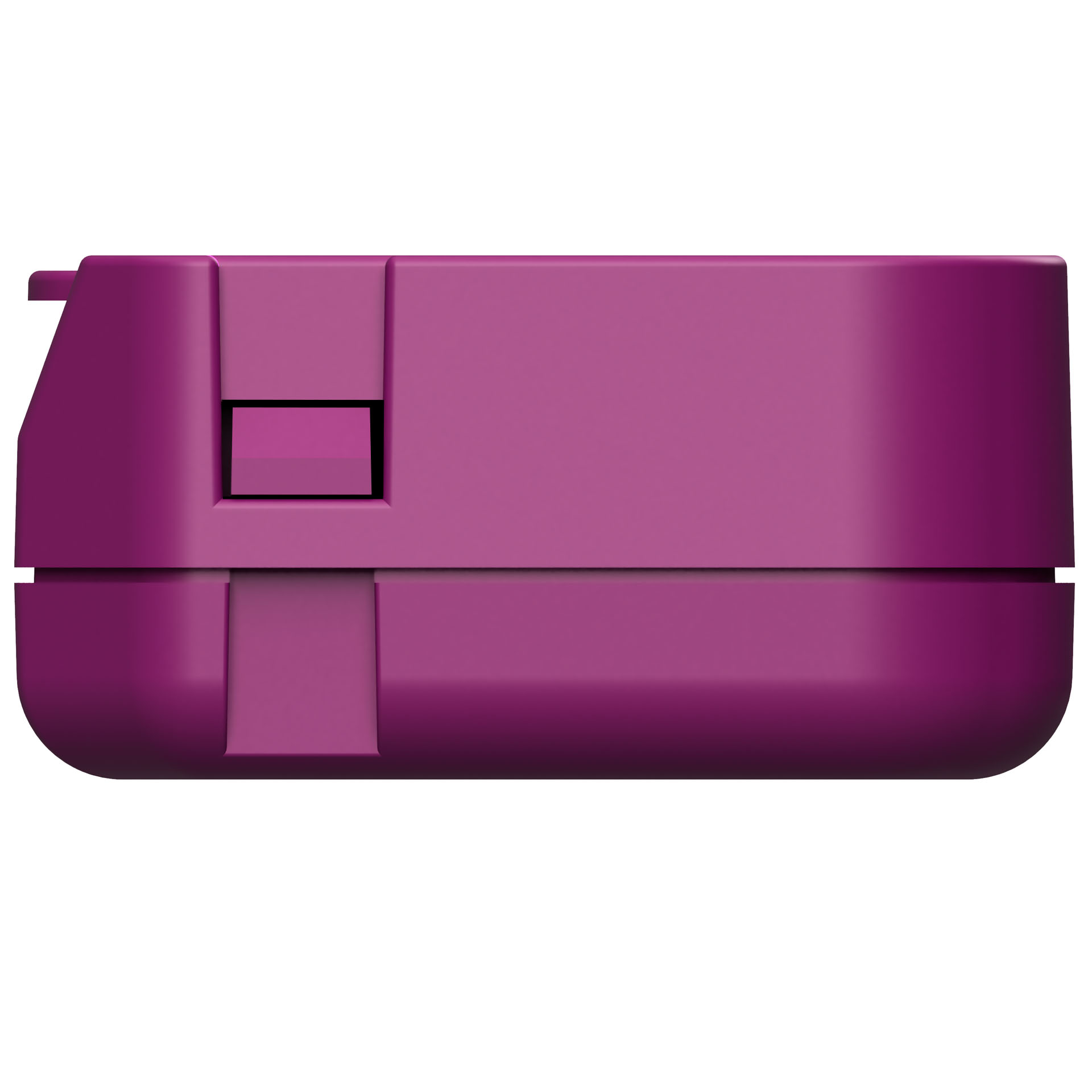

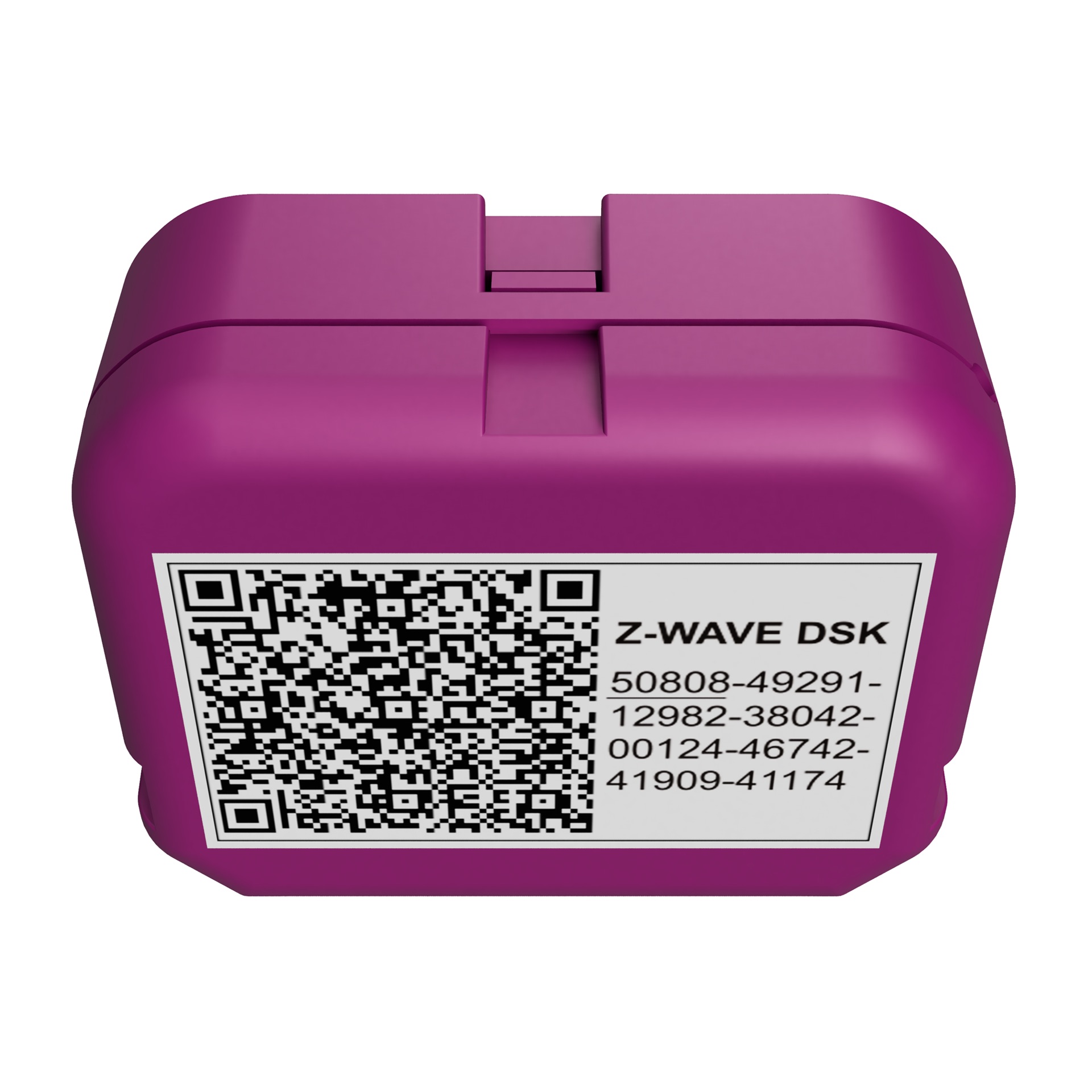

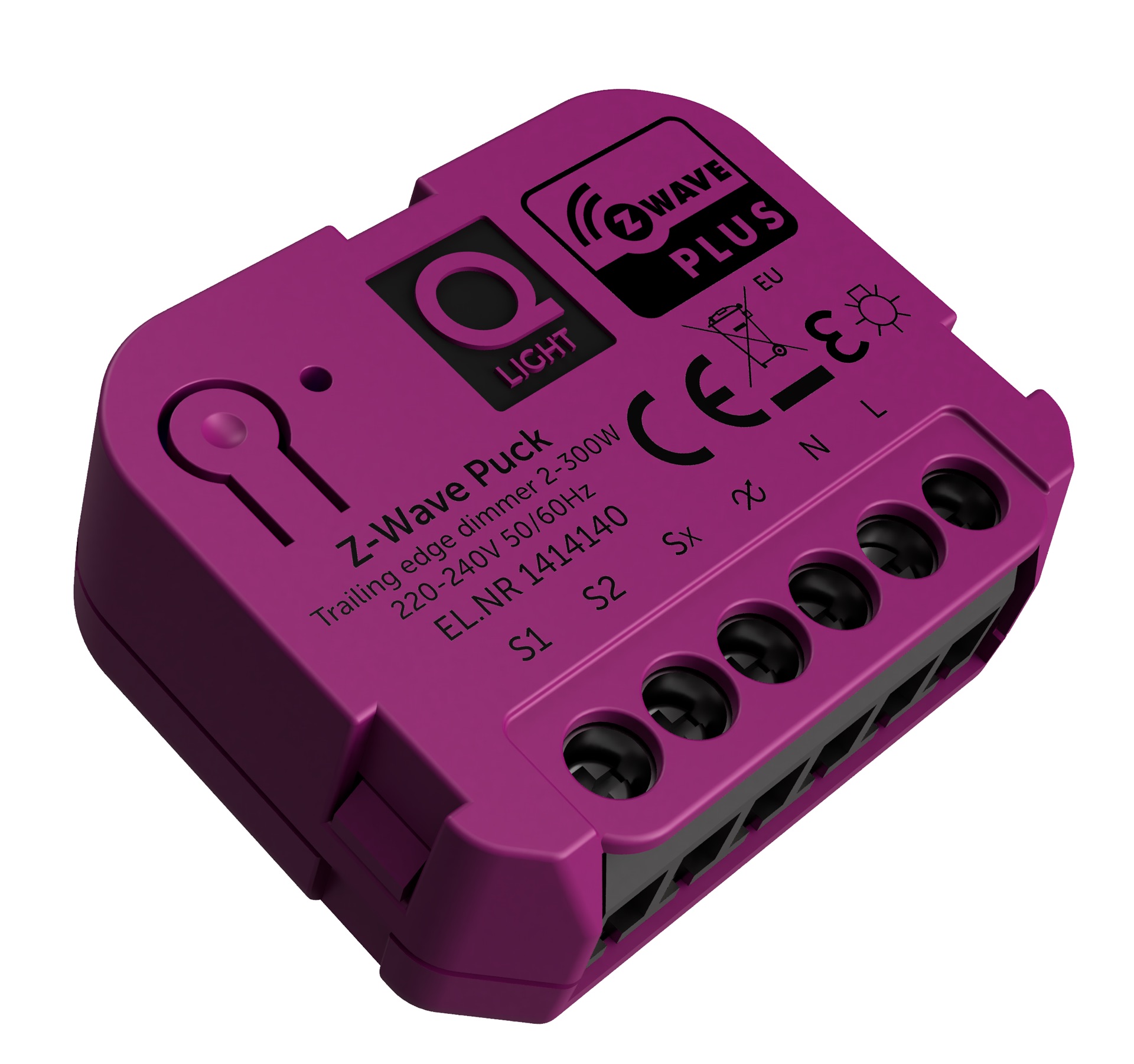

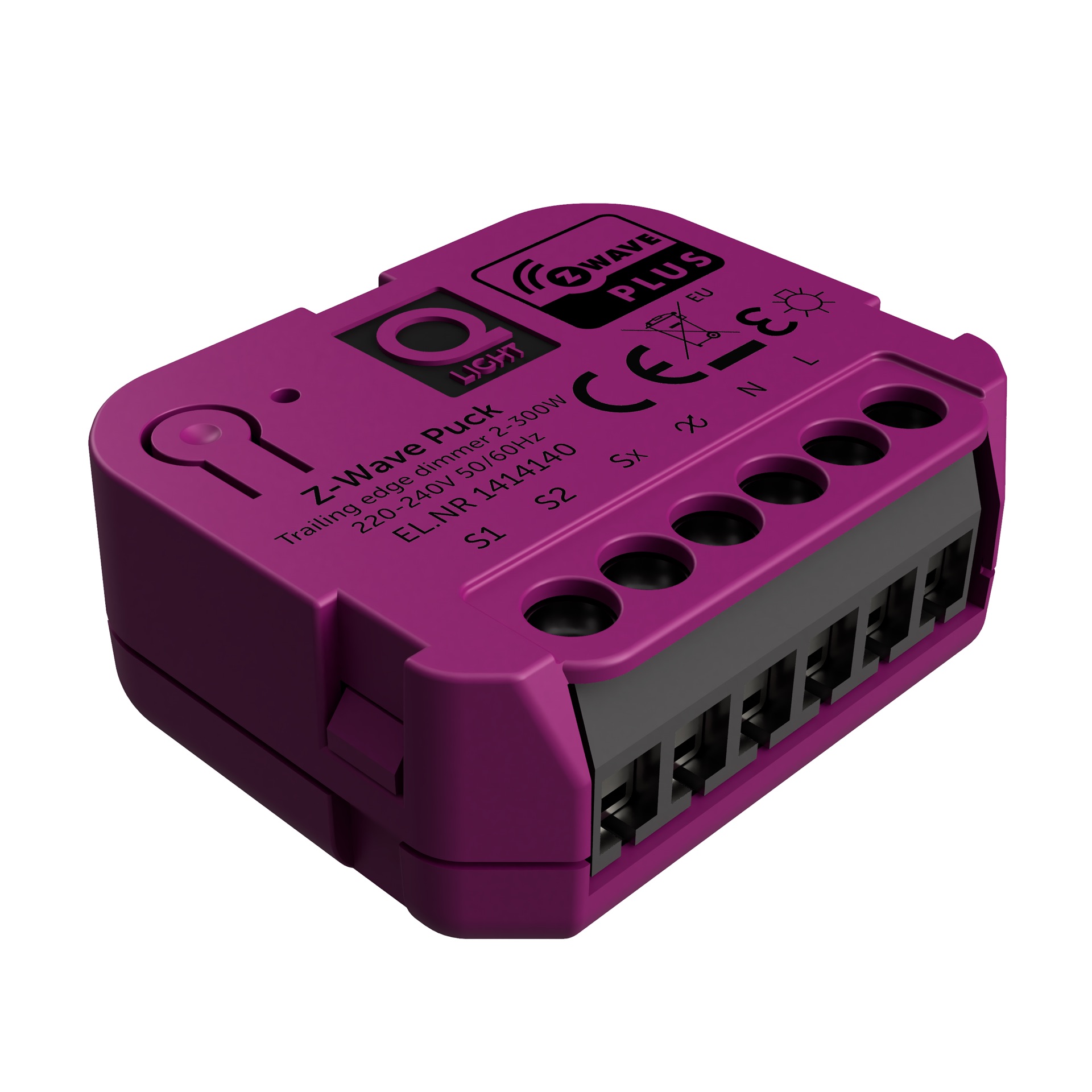

Name | Z-Wave Puck |
Short Description | Z-Wave Puck 2-180W LED load 0-100% dimming range |
Long Description | Z-Wave Puck dimmer by Q-light is a micro size in wall dimmer.
Features:
- 0-100% dimming range
- 2-180W LED load
- Compatible with any Z-Wave or Z-Wave Plus Controller
- There is memorized function at power off
- OverLoad protection
- Soft start function
- SmartStart
- Works with various types of switches – on/off, momentary, roller-blind, and etc
- This device is a security enable Z-Wave Plus product that is able to use encrypted Z-Wave Plus
messages to communicate to other security enable Z-Wave Plus products. |
Brand | Q-light |
Product Identifier | 1414140 |
Product Line | Smart Products |
OEM Version | HW: 255 FW: 4.03 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.81.06 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Light Dimmer Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0433 |
Product Type ID | 0x0003 |
Product ID | 0x0005 |
User Icon | 0x0600 |
Installer Icon | 0x0600 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | All Lighting Devices, Dimming Lighting Devices |
Countries / Regions | European Union |
Supported Command Classes | |
Controlled Command Classes | |
S2 Classes | S2_UNAUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Notification Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
