Product Recognition | |
|---|
Certification Number | ZC10-17065642 |
|---|
Name | Z-Wave Rain Sensor |
|---|

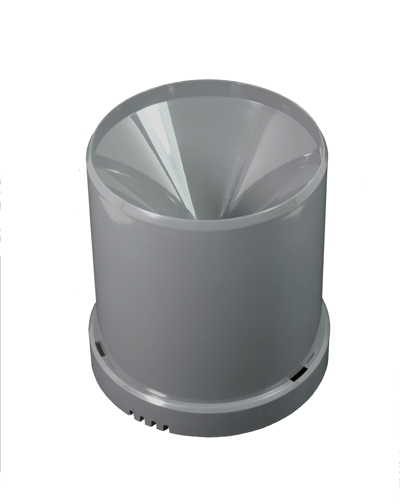

Short Description | This device measures the rain level on a certain position. The device is IP55 rated and can be used outside the home in the garden or on any other place exposed to rain. |
|---|
Long Description | This device measures the rain level on a certain position. The device is IP55 rated and can be used outside the home in the garden or on any other place exposed to rain. The device has a funnel on the top-side that will collect the rain on a certain diameter. The internal mechanics and electronics counts the rain level and will report it every about 4 minutes if and only if there is rain. The device also monitors a heavy rain condition (10 l/sqm within 5 minutes) and will send out alarm messages when detected. |
|---|
Brand | Popp |
|---|
Product Identifier | 700168 |
|---|
OEM Version | HW: 1 FW: 1.02 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0154 |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0011 |
|---|
User Icon | 0x0d0c |
|---|
Installer Icon | 0x0d00 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V7 | Sensor Multilevel V7 | 0x31 | 7 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | | Sensors | | Supported Meter Type | | Color | | Battery Type | | Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline | 2 | 5 | 0 | Switching Command when Rain (> 0 mm/h). Basic Set Command is sent. | 3 | 5 | 0 | Heavy Rain detected. Basic Set Command is sent. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
6 | Heavy Rain Start Command | This BASIC Set Command value is sent out into Association Group 3 when the device detects start of heavy rain. | 0 | 1 | 0 | 0 | 99 | From | To | Description |
|---|
0 | 99 | Set Command |
| 2 | Rain Start Command | This BASIC Set Command value is sent out into Association Group 2 when the device detects start of rain. | 0 | 1 | 0 | 0 | 99 | From | To | Description |
|---|
0 | 99 | Set Command |
| 1 | Rain Counter | This values shows the total count of rain from the moment of inclusion in mm water level. By writing this value this counter can be reset. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 32000 | mm |
| 3 | Rain Stop Command | This BASIC Set Command value is sent out into Association Group 2 when the device detects stop of rain. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 99 | Set Command |
| 4 | Meter Multiplier | This multiplier allows to adapt the display to certain controllers not being able to handle very low numbers. | 0 | 2 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | 1 | 10 | 10 | 10 | 100 | 100 | 100 | 1000 | 1000 | 1000 |
| 5 | Heavy Rain | This threshold defines when a heavy rain condition is hit. In most countries this is defined as > 15 mm rain per hour. The default value however is to turn this function off. | 0 | 1 | 0 | 0 | 255 | | 7 | Heavy Rain Stop Command | This BASIC Set Command value is sent out into Association Group 3 when the device detects stop of heavy rain. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 99 | Set Command |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Push the button inside the device for at least 10 seconds.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | Push the Z-Wave button one time. You find the Z-Wave button by removing the electronics module from the base. | 1 | Inclusion | Push the Z-Wave button one time. You find the Z-Wave button by removing the electronics module from the base. | 2 | Exclusion | Push the Z-Wave button one time. You find the Z-Wave button by removing the electronics module from the base. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Water meter | Import | Water Meter Consumption |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Rain rate |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
