Certification Number	ZC10-17115831

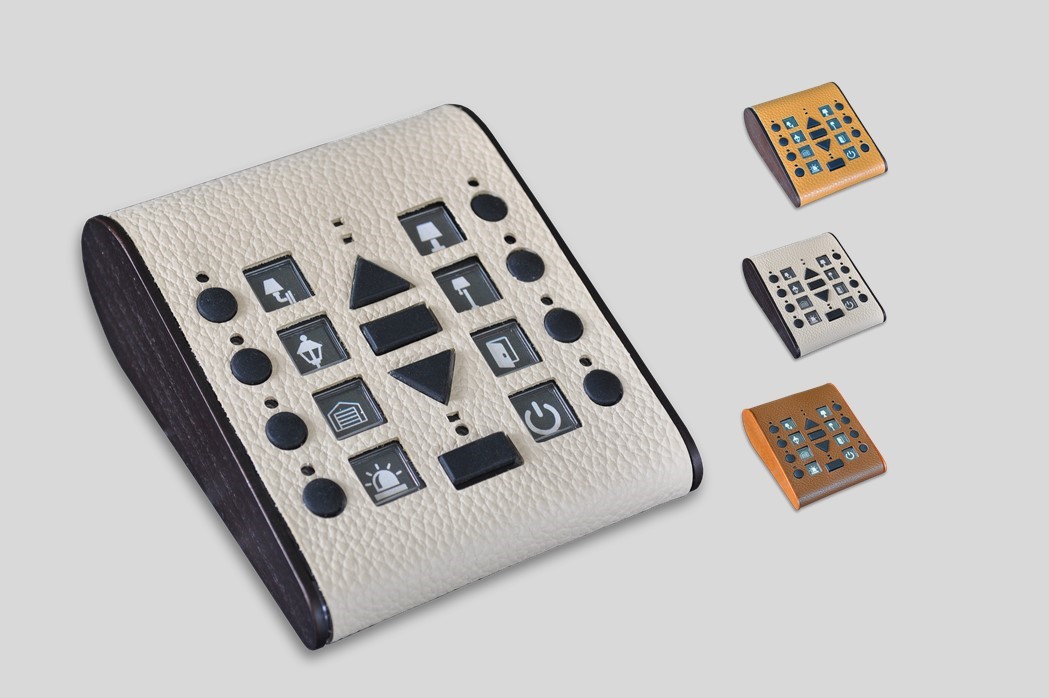

Name	Z-Wave remote control (aka RemSwiid)
Short Description	This Swiid® remote control - known as RemSwiid™ - is a battery-operated Z-Wave hand-held portable controller, using intercheangeable pictograms to identify the device/scene button
Long Description	Battery operated hand-held Z-Wave remote control usable either as a primary or as a secondary controller (the latter in the network of another primary Z-Wave controller, e.g. an IP gateway). Can operate up to 8 different groups of Z-Wave devices (maximum 8 devices per group) or activate up to 8 scenes (as a secondary controller). Can create associations between two or more devices which are in the same Z-Wave network. Feedback through 12 LEDs. Covered in genuine leather (4 colours)with real wood (5 tints) and comes with a magnetic wall mounting clip. Works with 2 AA batteries (LR06).
Brand	Swiid
Product Identifier	SW-ZRC-1
OEM Version	HW: 1 FW: 1.02
Hardware Platform	SD3502
Z-Wave Version	6.51.09
Library Type	CONTROLLER_PORTABLE
Device Type	Remote Control - Multi Purpose
Role Type	ROLE_TYPE_CONTROLLER_PORTABLE
Manufacturer ID	0x0166
Product Type ID	0x0002
Product ID	0x0001
User Icon	0x0A00
Installer Icon	0x0A00
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Controllers, Handheld Controller
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZRC1 Users manual v1.09 CERTIFIED.pdf
Features	Feature Values Z-Wave Scene Type Value Scene & Central Scene Battery Type Value AA (LR06) Battery Quantity Value 2
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 9 8 0 Z-Wave Plus Lifeline + 8 association grouops corresponding to the 8 device keys of the RemSwiid™ remote
Configuration Parameters	Parameter Number Name Description Format Read-only Size Min Value Max Value Default Value Parameter Values 1 Set priority Association Group number for an Association Source Node 1 = Association Group 1 (key A = AG#2) 2 = Association Group 2 (key A = AG#1) 0 Yes 1 1 2 1 From To Description 1 2 See above 7 Function of RemSwiid™ Device key F 0 = Disabled 1 = Basic/Multilevel Switch 7 2 = Control Central Scene 6 3 = Control Scene Activation 6 0 Yes 1 0 3 1 From To Description 0 3 See above 8 Function of RemSwiid™ Device key G 0 = Disabled 1 = Basic/Multilevel Switch 8 2 = Control Central Scene 7 3 = Control Scene Activation 7 0 Yes 1 0 3 1 From To Description 0 3 See above 9 Function of RemSwiid™ Device key H 0 = Disabled 1 = Basic/Multilevel Switch 9 2 = Control Central Scene 8 3 = Control Scene Activation 8 0 Yes 1 0 3 1 From To Description 0 3 See above 10 Send unsolicited Battery Report on Wake Up 0 = No 1 = To same node as wake up notification 2 = Broadcast to neighbours 0 Yes 1 0 2 0 From To Description 0 2 See above 11 Dimming mode 0 = Continues dimming until “Stop” Command key is pressed 1 = Stops dimming when “Up” or “Down” Command key is released 0 Yes 1 0 1 0 From To Description 0 1 See above 2 Function of RemSwiid™ Device key A 0 = Disabled 1 = Basic/Multilevel Switch 2 2 = Control Central Scene 1 3 = Control Scene Activation 1 0 Yes 1 0 3 1 From To Description 0 3 See above 4 Function of RemSwiid™ Device key C 0 = Disabled 1 = Basic/Multilevel Switch 4 2 = Control Central Scene 3 3 = Control Scene Activation 3 0 Yes 1 0 3 1 From To Description 0 3 See above 5 Function of RemSwiid™ Device key D 0 = Disabled 1 = Basic/Multilevel Switch 5 2 = Control Door Locks 4 3 = Control Scene Activation 4 0 Yes 1 0 3 1 From To Description 0 3 See above 6 Function of RemSwiid™ Device key E 0 = Disabled 1 = Basic/Multilevel Switch 6 2 = Control Central Scene 5 3 = Control Scene Activation 5 0 Yes 1 0 3 1 From To Description 0 3 See above 3 Function of RemSwiid™ Device key B 0 = Disabled 1 = Basic/Multilevel Switch 3 2 = Control Central Scene 2 3 = Control Scene Activation 2 0 Yes 1 0 3 1 From To Description 0 3 See above
Texts	ID Description Value 24 Controller Exclusion RemSwiid™ remote until the blue Z-Wave LED in the centre of the remote lights up (after 2-3 seconds) and stays lit indicating you are in the Setup Mode. 2. Press again once (1x) but only the ""Down"" command key and the red LED in the centre of your RemSwiid™ will blink to indicate that it is now in the Exclusion Mode. 3. Put the Z-Wave device you want to exclude in program mode (sends out NIF) whereby the red LED of the remote will turn off and the green LED will then light up for 1-2 seconds to indicate success and after that all the LEDs will turn off. 23 Controller Inclusion 1. Press and hold both the ""Up"" and ""Down"" command keys of the RemSwiid™ remote until the blue Z-Wave LED in the centre of the remote lights up (after 2-3 seconds) and stays lit indicating you are in the Setup Mode. 2. Press again once (1x) but only the ""Up"" command key and the green LED in the centre of your RemSwiid™ will blink to indicate that it is now in the Inclusion Mode. 3. Put the Z-Wave device you want to include in program mode (sends out NIF) whereby the green LED of the remote will stay continuously lit up for 1-2 seconds to indicate success and then all the LEDs will turn off. 4 Device Wake-Up In order wake up the RemSwiid™ remote (force into the listening mode), press twice (2x) on the ""All"" key and the blue Z-Wave LED will light up and stay lit for 30 seconds. It is possible to exit the listening mode before the 30 seconds time out by pressing once on the Stop Command key and the blue Z-Wave LED will turn off accordingly 3 Learn Mode (adding another controller) 1. Put the primary Z-Wave controller in the inclusion mode (see user's manual of the controller) 2. Press and hold both the ""Up"" and ""Down"" command keys of the RemSwiid™ remote until the blue Z-Wave LED in the centre of the remote lights up (after 2-3 seconds) and stays lit indicating the remote is in the Learn mode (aka Setup Mode) 3. Press once on the “All” key and the both the green and red LEDs will also light up to indicate that the inclusion process can begin. The 3 LEDs will then blink rapidly and turn off to indicate that the process has completed successfully. If not successful, the LEDs will remain lit solid until they time out after 30 seconds. 5 Factory Reset 1. Press and hold both the “Stop” and “All” keys until the red and green LEDs both start blinking at the same time (after about 3 seconds) 2. Press three times (3x) on the “Up” command key of the RemSwiid™ remote and the blue Z-Wave LED will also light up. After about 2-3 seconds, the blue and red LEDs will turn off and the green LED will remain lit for 1-2 seconds indicating that the reset has been completed. Resetting the RemSwiid™ remote will result in its taking on a new randomly generated Home ID. Obviously, if the RemSwiid™ remote is the primary controller in the Z-Wave network, resetting it will result in the nodes in the network being orphaned and it will be necessary after the reset to exclude and re-include all the nodes in a network with a new Home ID. If the RemSwiid™ is being used as a secondary controller in the network, the reset procedure should only be used once it has been excluded from the network, except of course if such exclusion is not feasible (e.g. if the network’s primary controller is missing or otherwise inoperable).
Supports NWI	Yes
Supports Explorer Frames	Yes
