Product Recognition | |
|---|
Certification Number | ZC10-19086730 |
|---|

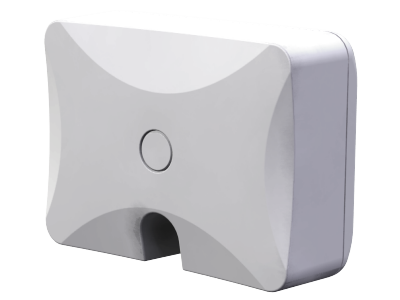

Name | Z-Wave Repeater |
|---|
Short Description | ZRP-120 is a Z-Wave repeater with best RF performance to replicate Z-Wave signals in a network. |
|---|
Long Description | ZRP-120 is a Z-Wave repeater with best RF performance to replicate Z-Wave signals in a network. The repeater re-transmits an input Radio Frequency (RF) signal by routing the signal around obstacles and radio dead spots to ensure that the signal is received at its intended destinations.
ZRP-120 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product. |
|---|
Brand | Remotec |
|---|
Product Identifier | ZRP-120NA |
|---|
Product Line | Z-Wave Home Automation |
|---|
OEM Version | HW: 1 FW: 0.10 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Repeater |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x5254 |
|---|
Product Type ID | 0x1000 |
|---|
Product ID | 0x8141 |
|---|
User Icon | 0x1B00 |
|---|
Installer Icon | 0x1B00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Network Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 | Association Group Information V2 | 0x59 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_English | Product Manual in English | |
|
|---|
Features | |
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 0 | Lifeline | 0x0000 | ZRP-120 supports 1 association group
Association Group #1
Association Group #1 (max. 1 node) is default to associate with the primary controller (Gateway/Hub/Controller) for Z-Wave Repeater Status change report, refer to below for report details:
a) Device Reset Locally Notification (Only report when the Z-Wave Repeater has been triggered the RESET TO DEFAULT)
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Not support | 1 | Classic Inclusion | Include or Exclude the ZRP-120 from the existing Z-Wave Home Control Network with your primary controller.
- Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
- When prompted by your primary controller, triple click the PROG button within 1 second.
- The primary controller should indicate that the action was successful. If the controller indicates the action was unsuccessful, please repeat the procedure. | 2 | Classic Exclusion | Include or Exclude the ZRP-120 from the existing Z-Wave Home Control Network with your primary controller.
- Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
- When prompted by your primary controller, triple click the PROG button within 1 second.
- The primary controller should indicate that the action was successful. If the controller indicates the action was unsuccessful, please repeat the procedure. | 5 | Factory Reset Procedure | All Configuration Parameter values and Association information will be restored to factory default settings and excluded from the network.
Step Setup Key LED Indication Status on ZRP-100
1 Press and keep holding the PROG button for not less than 10 seconds. - LED state will toggle for first 5 seconds of being pressed.
- LED state will toggle again after the remaining 5 seconds.
2 Release the PROG button then triple click the PROG button within 2 seconds of step 1. - LED will stay in previous ON or OFF stage.
Remark: All the setting and data will be permanently deleted. Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
