Product Recognition | |
|---|---|
Certification Number | ZC10-20086963 |

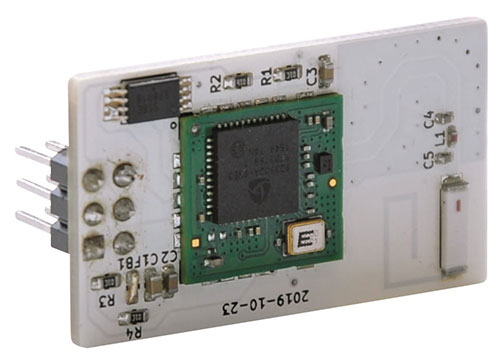

Name | Z-Wave RF Module including Antenna |
Short Description | The Nexello Z-Wave RF Module is a Bridge Controller to be used with different Gateways e.g. the Nexello Security System. The Z-Wave RF-Module transmits data gathered from included Z-Wave devices to the Nexello. |
Long Description | The Nexello Z-Wave RF Module is a Bridge Controller to be used with different Gateways e.g. the Nexello Security System. Connected to the Nexello via 6-PIN UART interface, the Nexello Z-Wave RF-Module transmits data gathered from included Z-Wave devices to the Nexello. The module comes with a ceramic onboard antenna. |
Brand | ABUS |
Product Identifier | PLAC90210 |
Product Line | Nexello |
OEM Version | HW: 0 FW: ERROR |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.81.06 |
Library Type | CONTROLLER_BRIDGE |
Device Type | Hardware Device |
Role Type | ROLE_TYPE_NONE_HARDWARE_DEVICE |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | All Controllers, Computer Controller Interfaces |
Countries / Regions | European Union |
Documents | |
Features | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
