Product Recognition

Certification Number

ZC10-20036888

Name

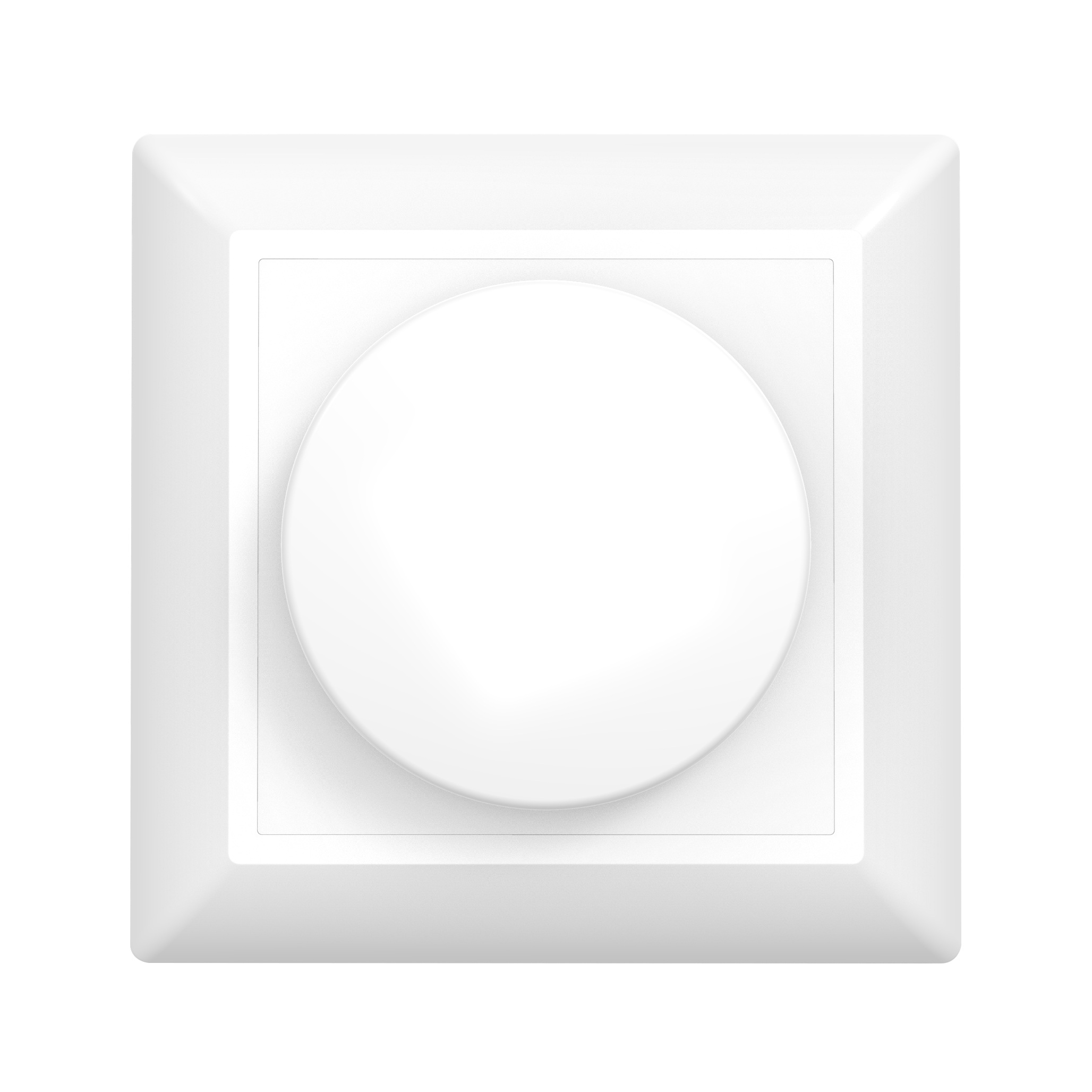

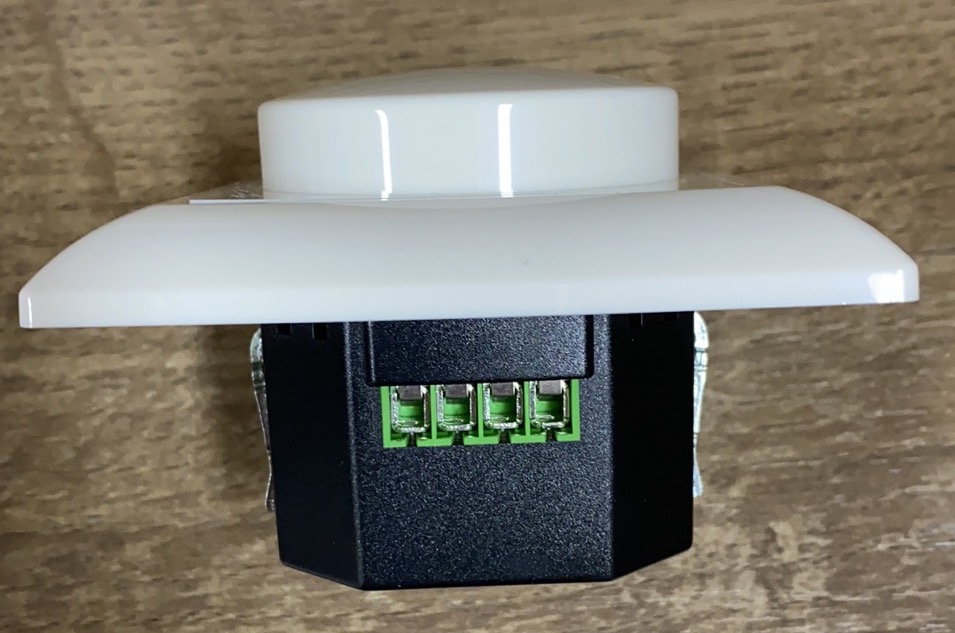

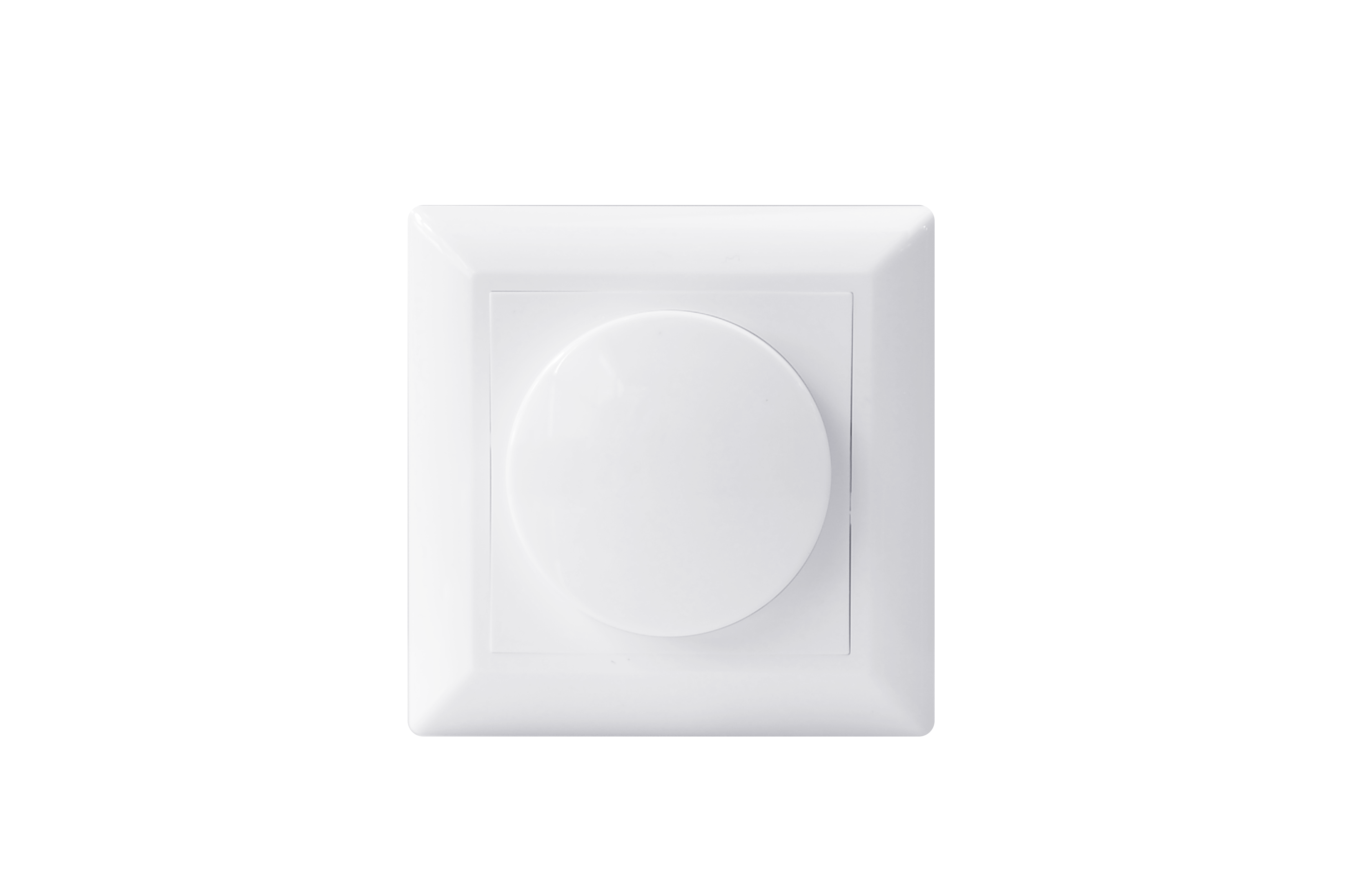

Z-Wave Rotary Dimmer Switch

Short Description

Z-Wave Rotary Dimmer Switch without neutral, suitable for new building and retrofitted house

Long Description

The Dimmer controller is a switch multilevel device based on Z-Wave and it can be easy configuration, operation and can make the traditional LED dimmable lighting to be intelligent control. This Dimmer integrated Z-Wave communication module to connect with Z-Wave gateway and this device can be adapted to EU (868.42Mhz) The Dimmer controller can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase the reliability of the network. The Dimmer controller is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade. If you want your Dimmer controller to be a security device that use secure/encrypted message to communicate in a Z-Wave network, then a security enabled Z-Wave controller is needed.

Brand

HZC ELECTRIC

Product Identifier

EU-P10

Product Line

LED Dimmer

OEM Version

HW: 1 FW: 1.17

Hardware Platform

ZM5101

Z-Wave Version

6.81.03

Library Type

SLAVE_ENHANCED_232

Device Type

Light Dimmer Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0431

Product Type ID

0x0202

Product ID

0x0001

User Icon

0x0600

Installer Icon

0x0600

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

All Lighting Devices, Dimming Lighting Devices, Lighting Accessories

Countries / Regions

European Union

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Texts

ID	Description	Value
2	Classic Exclusion	1. Set primary controller/gateway into exclusion mode (If you don’t know how to do this, please refer to your primary controller’s manual on how to turn your controller into exclusion mode). 2. Short press 2 times the reset button, it will set the dimmer controller into exclusion mode (The dimmer controller already exists a Z-Wave network). 25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be removed from the Z-Wave network. Note: The Dimmer will start SmartStart Inclusion when it is removed from a Z-wave network.
24	Controller Classic Exclusion	1. Set primary controller/gateway into exclusion mode (If you don’t know how to do this, Please refer to your primary controller’s manual on how to turn your controller into exclusion mode). 2. Power on the dimmer controller again, it will set the dimmer controller into exclusion mode (The dimmer controller already exists a Z-Wave network). 25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be removed from the Z-Wave network.
3	Controller Learn Mode	1. Power on the dimmer controller, press and hold down the reset button for over 4 seconds, it will set the dimmer controller into inclusion mode.25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 2. The dimmer controller will be added to the Z-Wave network.
5	Factory Reset Procedure	Press and hold down reset button for over 4 seconds, the dimmer controller will be reset to factory defaults. Note: This procedure should only be used when the primary controller is inoperable. Reset Dimmer controller to factory default settings will sets the Dimmer to not in z-wave network state, delete the Association setting and restore the Configuration setting to the default. The Dimmer controller will start SmartStart Inclusion when it is reset.
1	Classic Inclusion	1. Set primary controller/gateway into inclusion mode (If you don’t know how to do this, please refer to your primary controller’s manual on how to turn your controller into inclusion mode). 2. Short press 2 times the reset button, it will set the dimmer controller into inclusion mode.25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be added to the Z-Wave network.

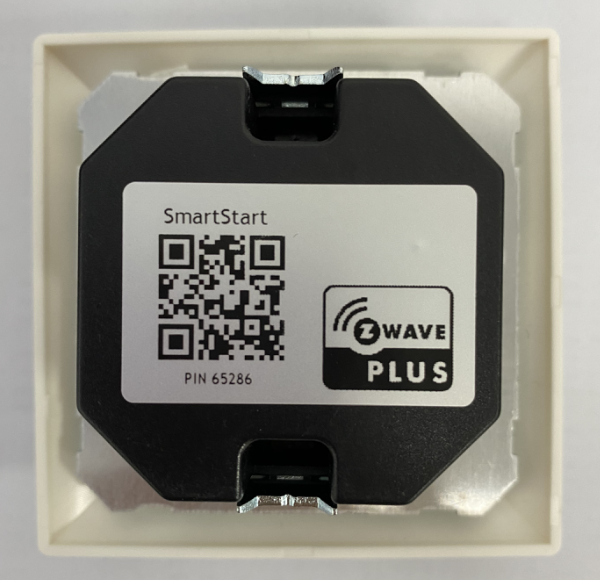

8	Where to find S2 DSK on product	You scan the QR code with an android phone. For example, the QR Code may be scanned by the application provided with your SmartStart compatible Z-Wave controller. ( The data for each Dimmer is different) Note: If your controller does not support SmartStart inclusion, please refer to the manual for your controller for non-SmartStart inclusion.
23	Controller Classic Inclusion	1. Set primary controller/gateway into inclusion mode (If you don’t know how to do this, Please refer to your primary controller’s manual on how to turn your controller into inclusion mode). 2. Power on the dimmer controller, press and hold down the reset button for over 4 seconds, it will set the dimmer controller into inclusion mode.25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be added to the Z-Wave network.

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
