Product Recognition
Certification Number	ZC10-15100009

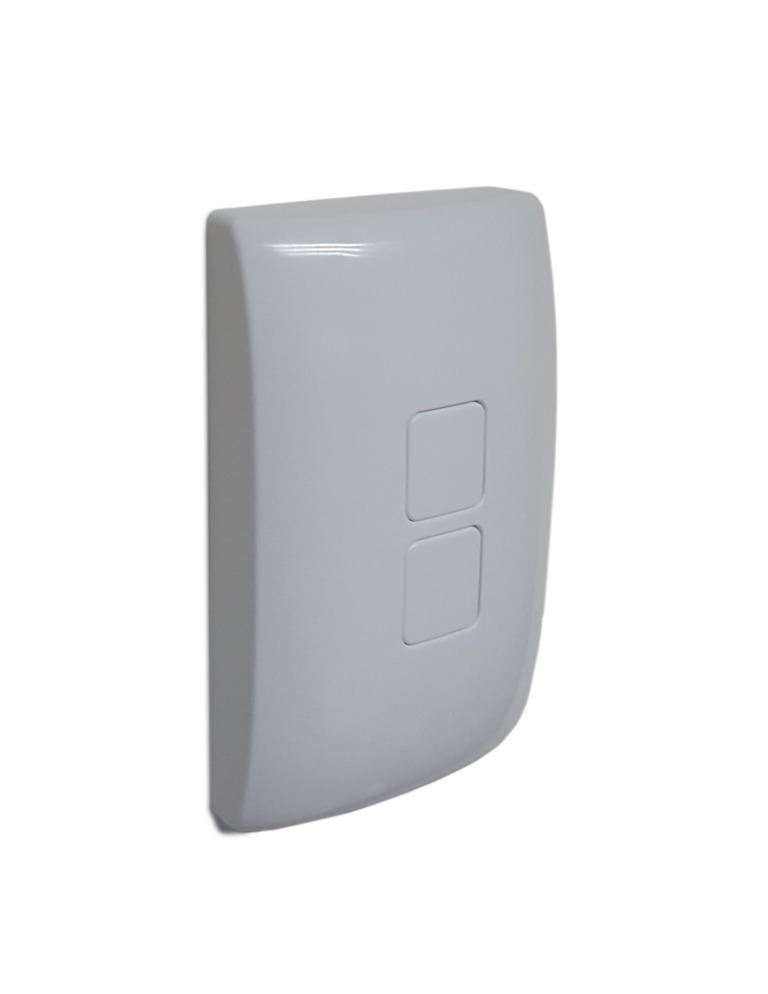

Name	Z-Wave Smart Switch Cover
Short Description	Smart Switch Cover with Z-Wave radio. The WA00Z-1 can control the Z-Wave Smart LED Bulb as well as other Z-Wave light control devices
Long Description	Smart Switch Cover with Z-Wave radio. • Built-in Z-Wave radio - can control Z-Wave Light Bulb and switches/dimmers remotely and wirelessly • Plug and play, simple setup. Fits over an existing wall switch. • Manually turn on, off, dim your lights while keeping the smart light bulb always online in your home network • Works with different types and brands of Z-Wave LED Light control devices • Powered by Z-Wave® 500 Series module inside • Manual reset capability • Powered by 2 pieces of standard CR2032 Lithium Coin Cell with long battery life
Brand	GoControl
Product Identifier	WA00Z-1
OEM Version	HW: 255
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Wall Controller
Role Type	ROLE_TYPE_SLAVE_PORTABLE
Manufacturer ID	0x020E
Product Type ID	0x5343
Product ID	0x3132
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Lighting Accessories
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 10008665X2 WA00Z-1 Instructions.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 WA00Z-1 supports Group 1 for lifeline communication. Group 1 must be assigned the Node ID of the controller to which unsolicited notifications will be sent. The Z-Wave controller should set this association automatically after inclusion. Lifeline association only supports the “manual reset” event. Please refer to the instructions manual of your remote controller or gateway for detail procedures on how these function can be set. 2 5 0 WA00Z-1 supports Group 2 with up to five devices as assciation group. Press and Release the top/bottom button, the devices in Group 2 will be turned ON/OFF. Press and hold the top/bottom button, the devices in Group 2 will be dim up/down. 3 5 0 WA00Z-1 supports Group 3 with up to five devices as assciation group. Press and Release the top/bottom button twice (double click), the devices in Group 3 will be turned ON/OFF. Press the top/bottom button twice while holding down the top/bottom button in second press, the devices in Group 3 will be dim up/down.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Activation of Central Scene The Valid Values can be set from 0 to 99. Each Valid Value can turn on two scenes. If the Valid Value is set to N, top button is assigned to control 2N+1 scene, and bottom button is assigned to control 2N+2 scene. For example, if the value is set as 4, Scene #7 will be activated when top button is pressed, Scene #8 will be activated when bottom button is pressed. 0 1 0 0 0 From To Description 0 99 ZSC control scene through central scene command class 2 Control mode User can set the WA00Z-1 to control other devices or they issue various scene activation commands to a central controller. When Value = 0, WA00Z-1 can activate the Scene which is pre-set by Gateway, and then control the associated Smart Bulbs in either Group 2 or Group 3. When Value = 1, WA00Z-1 can only activate the Scene which is pre-set by Gateway. When Value = 2, WA00Z-1 can only control Smart Bulbs in Association Group 2 and Group 3. 0 1 0 0 0 From To Description 0 2 Issue varies scene activation commands to a central controller 4 Reverse Button User can set the value to be 1, the function of top/bottom button will be reversed. 0 1 0 0 0 From To Description 0 1 Reverse Button
Texts	ID Description Value 1 Inclusion 1. Place your network controller into Inclusion mode by following the controller manufacturer’s instructions 2. Press any button on the WA00Z-1 3. A green LED will flash twice to indicate that WA00Z-1 Inclusion is successful Note: If Inclusion still fails after the 2nd attempt, you need to first manually RESET the ZSC before repeating the above steps. 2 Exclusion 1. Place your network controller into Exclude mode by following the controller manufacturer’s instructions. 2. Press any button on the WA00Z-1 3. The LED will flash twice and WA00Z-1 exclusion is successful. 5 Factory Reset In an event that your primary controller is lost or otherwise inoperable, to reset or clear all network information, follow these steps: Factory Reset: Press TOP button 5-times then press BOTTOM button 5-times within 5 seconds
Supports NWI	Yes
Supports Explorer Frames	Yes
