Certification Number | ZC10-20076930 |
|---|

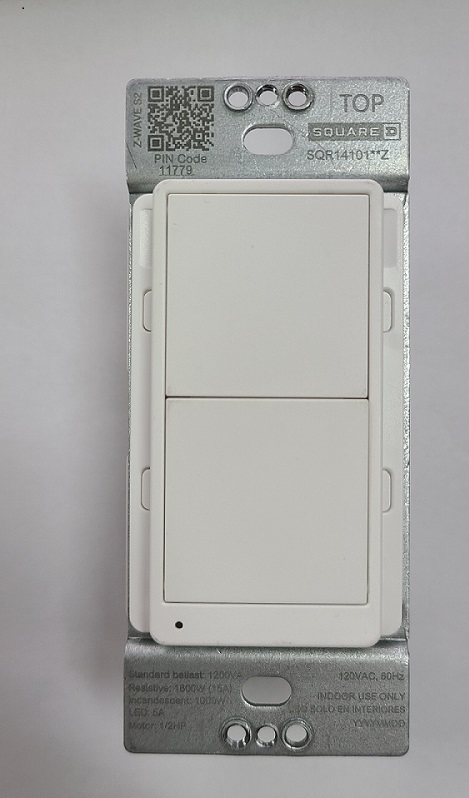

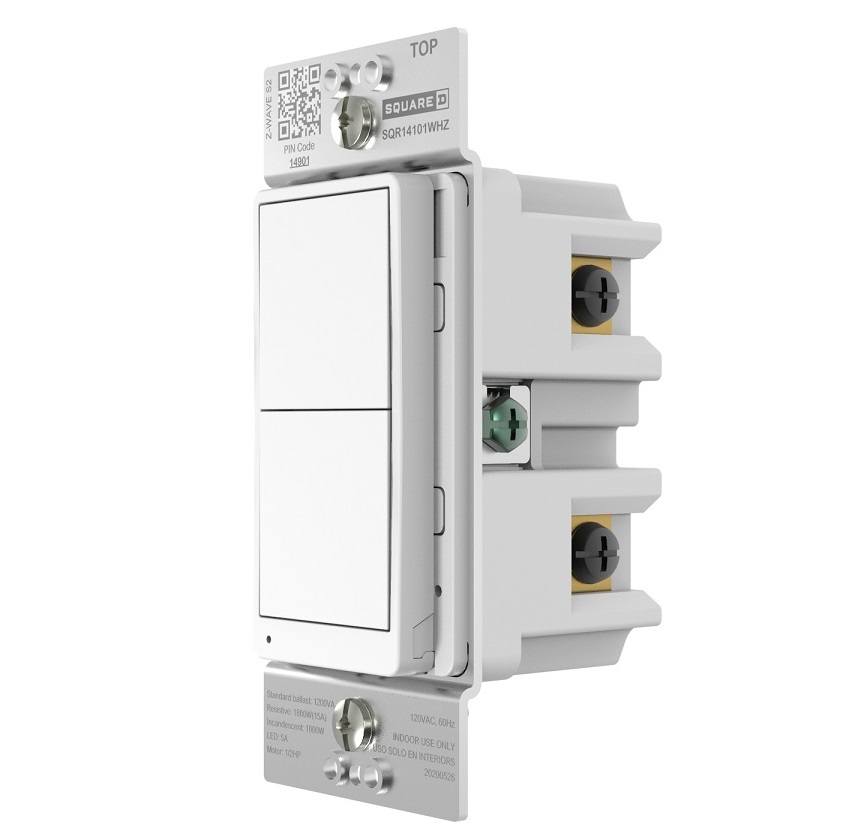

Name | Z-Wave Switch Single Pole |
|---|
Short Description | Z-WAVE SWITCH SINGLE POLE |
|---|
Long Description | The Square D 15 Amp Z-Wave Plus Energy Monitoring Switch is the professionals choice for secure reliable lighting control. Sensitive enough to control the low wattage demands of a single LED yet as well as the demands of bright outdoor lighting. Perfect for monitoring energy usage in bedrooms where the switch controls the receptacles. It works with any Z-Wave hub and can be grouped with up to 5 other Z-Wave Plus devices. |
|---|
Brand | Square D |
|---|
Product Identifier | SQR14101**Z |
|---|
Product Line | Z-Wave Plus Devices |
|---|
OEM Version | HW: 1 FW: 1.14 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.82.01 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0447 |
|---|
Product Type ID | 0x0111 |
|---|
Product ID | 0x1102 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Adv_Manual | Advanced Information Product Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Lifeline: Send device reset locally notification
StatusReport: On/Off status report
PowerReport: Power metering report
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Parameter 1 | Synchronization of load power and LED indicator. | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | Power On, LED Off; Power Off, LED On | 1 | 1 | Power On, LED On;Power Off, LED Off |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | When the gateway is in removing mode (please refer to the instruction of the Z-Wave gateway for the operations on gateway itself):
quick click x3, (within 1.5s/ interval<0.5s), on either top or bottom paddle. | 5 | Factory Reset Procedure | 3x quick click +1 x press> 10 seconds, on either top or bottom paddle. | 8 | Where to find S2 DSK on product | The DSK can be found on the product packaging. | 1 | Classic Inclusion | *Smart Start Inclusion
The feature assumes the gateway has implemented Smart Start. Users could use the APP of the gateway or the gateway camera to scan the QR code on device or on device package even before powering on the device, when the device is powered on, it shall be automatically added to the gateway.
*Manual Inclusion
When the gateway is in adding mode (please refer to the instruction of the Z-Wave gateway for the operations on gateway itself):
quick click x3, (within 1.5s/ interval<0.5s), on either top or bottom paddle. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption | Electric meter | Export | Electric Meter Production | Gas meter | Import | Gas Meter Consumption | Gas meter | Export | Gas Meter Production | Water meter | Import | Water Meter Consumption | Water meter | Export | Water Meter Production | Heating meter | Import | Heating Meter Consumption | Heating meter | Export | Heating Meter Production | Cooling meter | Import | Cooling Meter Consumption | Cooling meter | Export | Cooling Meter Production |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
