Product Recognition | |
|---|
Certification Number | ZC12-20110132 |
|---|

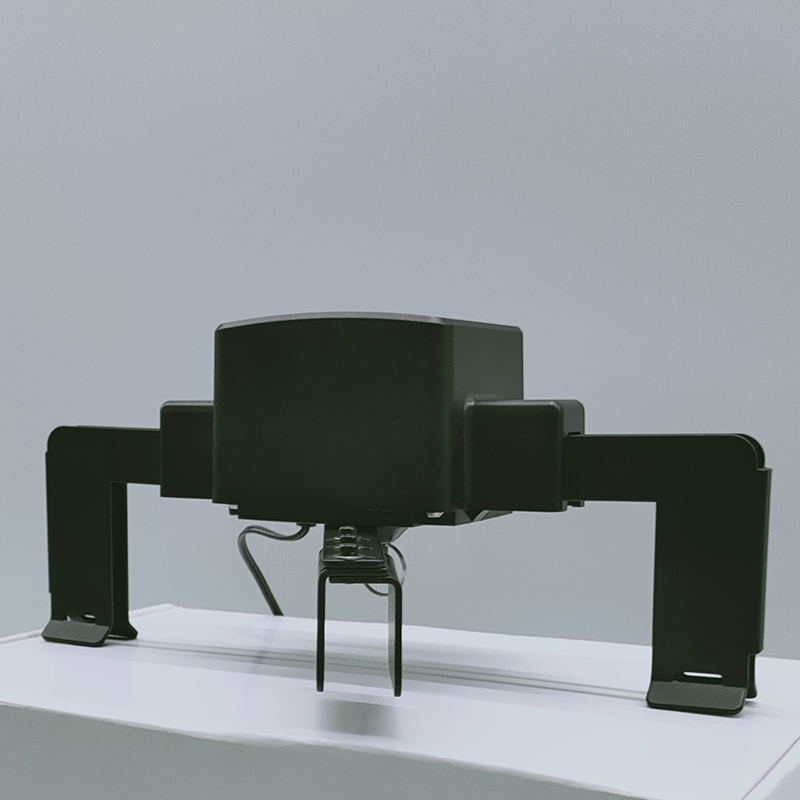

Name | Z-Wave Touchable Smart Valve |
|---|
Short Description | WP-02SF water valve controller focuses on the handle ball valve with remote control and hand operation. |
|---|
Long Description | WP-02SF water valve controller focuses on the handle ball valve with remote control and hand operation. The moving distance of the handle ball valve can be 90 degrees. Without changing the installed control valves of water, steam , and oil lines, just simply install this product on the original handle ball valve. |
|---|
Brand | Dongguan Will Power |
|---|
Product Identifier | WP-02SF |
|---|
Product Line | Intelligent control valve |
|---|
OEM Version | HW: 1 FW: 10.14 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.14.1 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Binary Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x044B |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0002 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Water Valves & Irrigation, Gas Valves |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|

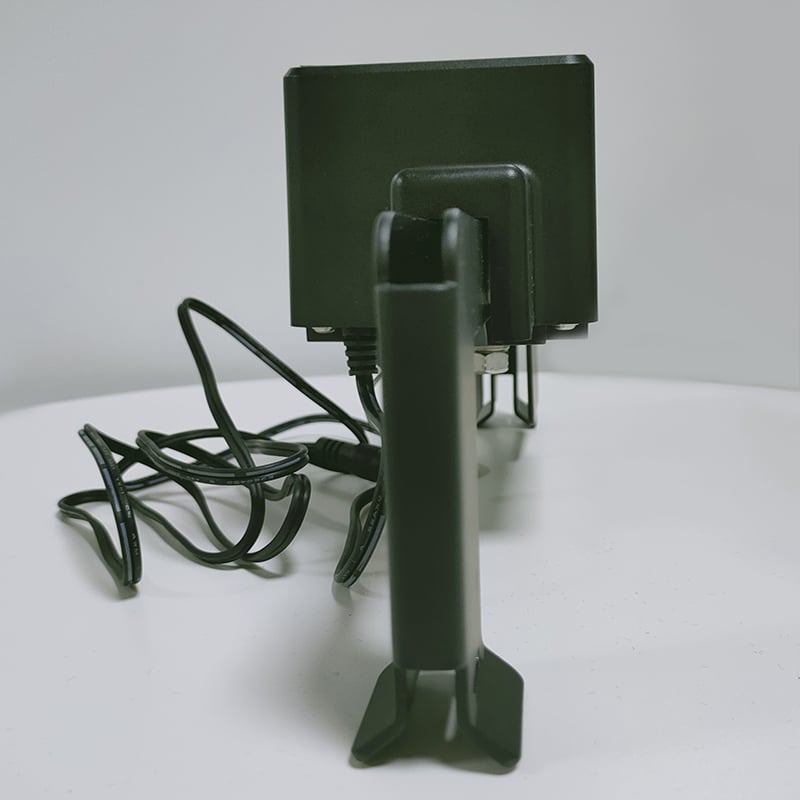

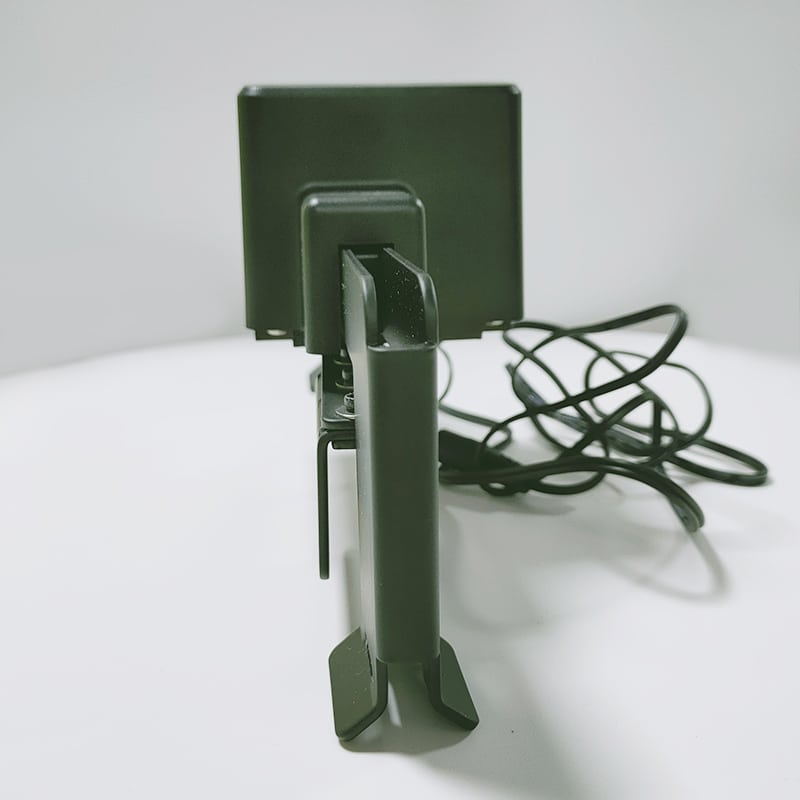

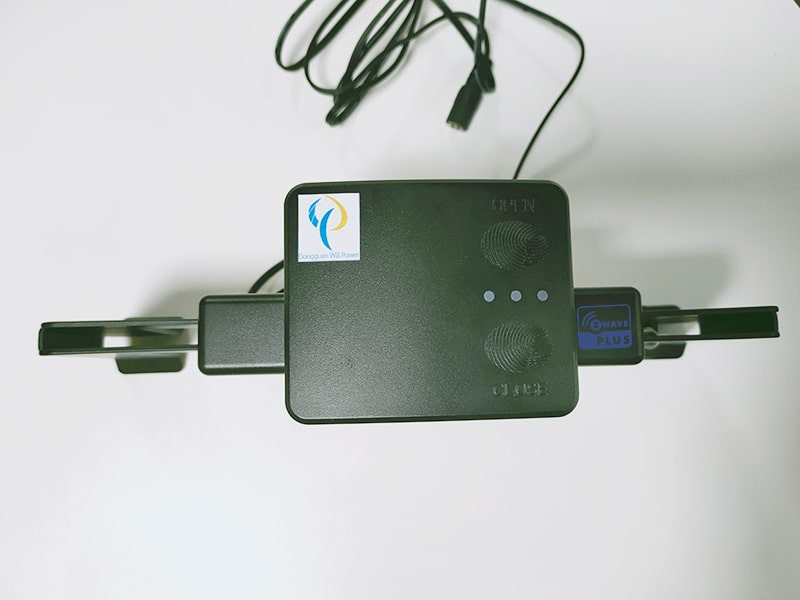

Image_Product_Supplemental_3 | Profile view | | Image_Product_Supplemental_4 | Profile view | | Image_Product_Supplemental_5 | Up view | | Manual_English | Product Manual in English | | Manual_Primary_Lang | Product English Manual | |
|
|---|
Features | Feature | Values |
|---|
Outdoor Use | | Controller Supports Multiple Z-Wave Interfaces | | Z-Wave Scene Type | | Controller Supports Multiple Networks | | Color | | Neutral Wire Required | | Firmware Updatable | Value |
|---|
Updatable by Consumer via Internet |
| IP (Ingress Protection) Rated | | Communications Protocol | | Communications Connections | | Gateway Has Preferred Partners | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 3 | 0 | Lifeline | 0x0004 | Lifeline:
Device Reset Locally: triggered upon reset
Switch Binary Report: triggered upon status change
Indicator Report: after the unit received Indicator Set command will trigger Indicator Report |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | No | 1 | Classic Inclusion | Add：It will trigger ADD/REMOVE after press the OPEN button for more than 5seconds. Try again if failed. Notice: The triggering will be activated after the PRESS stopped. | 2 | Classic Exclusion | B. Remove：It will trigger ADD/REMOVE after press the OPEN button for more than 5 seconds. Try again if failed. Notice: The triggering will be activated after the PRESS stopped. | 5 | Factory Reset Procedure | Support Device Locally Reset
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
