| Product Recognition | |
|---|
| Certification Number | ZC10-15020005 |
|---|

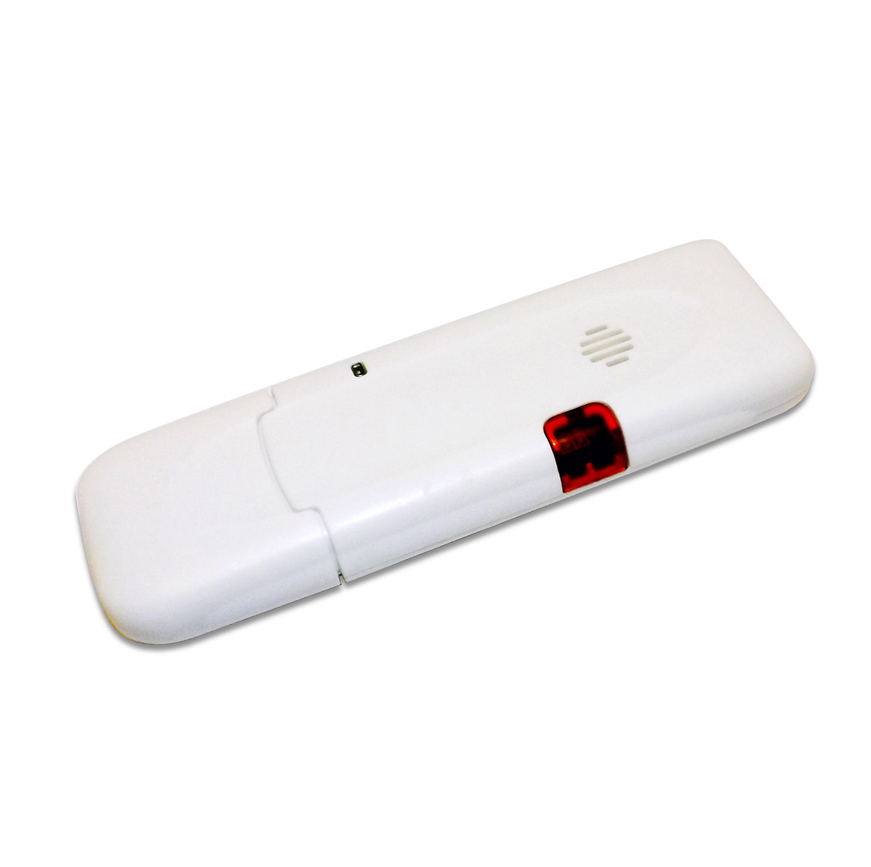

| Name | Z-Wave USB Dongle |
|---|
| Short Description | Use this USB dongle to connect the computer for controlling the Z-Wave devices. |
|---|
| Long Description | Use this USB dongle to connect the computer for controlling the Z-Wave devices. Or you could use the USB dongle to connect with the control box which could be compatible with Z-Wave solution and reserved the USB port then you could control the Z-Wave devices as the gateway does. This Z-Wave+ Certified Hardware, when combined with a Z-Wave+ Application, provides an overall Z-Wave+ end user experience. |
|---|
| Brand | Vision |
|---|
| Product Identifier | ZU1401US-5 |
|---|
| OEM Version | 47771 |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | CONTROLLER_STATIC |
|---|
| Device Type | Central Controller |
|---|
| Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
| Manufacturer ID | 0x0109 |
|---|
| Product Type ID | 0x |
|---|
| Product ID | 0x |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Controllers, Computer Controller Interfaces |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 23 | Controller Inclusion | N/A | | 24 | Controller Exclusion | N/A | | 3 | Learn Mode (adding another controller) | N/A | | 5 | Factory Reset | N/A |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
