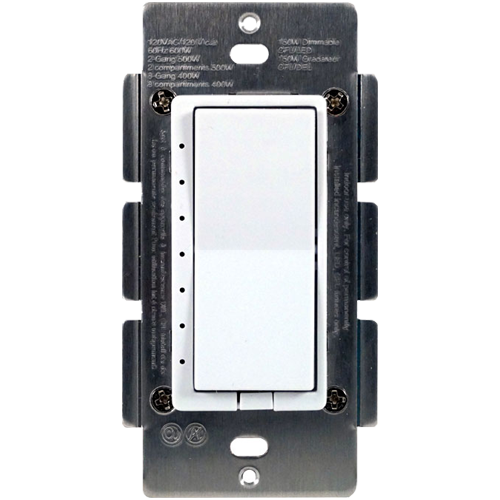

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_SCENE_ACTUATOR_CONF

Scene Actuator Conf

0x2C

1

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_SWITCH_ALL

Switch All

0x27

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_SWITCH_MULTILEVEL_V4

Switch Multilevel V4

0x26

4

COMMAND_CLASS_CONFIGURATION_V3

Configuration V3

0x70

3

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC

Manufacturer Specific

0x72

1

COMMAND_CLASS_CENTRAL_SCENE_V3

Central Scene V3

0x5B

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_SCENE_ACTIVATION

Scene Activation

0x2B

1

COMMAND_CLASS_CENTRAL_SCENE_V3

Central Scene V3

0x5B

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

Manual_Primary_Lang

Product or Owner's Manual

Neutral Wire Required

Outdoor Use

Z-Wave Scene Type

Electric Load Type

Color

Switch Type

Switch Load Capacity Watts

Firmware Updatable

1

5

0

Z-Wave Plus Lifeline

4

the orientation of the ON/OFF on the rocker switch

the orientation of the ON/OFF on the rocker switch can be inverted

0

1

0

0

0

8

turning On or Off the lights via remote control or scheduled program

Turning On or Off the lights via remote control or scheduled program Valid Values: 1-255 (default = 3), indicates the time duration of each level when the light is controlled by remote

0

2

0

0

3

9

indicates the number of levels

The time interval of brightness change between dimming up and down can be adjusted Length: 1 Byte Valid Values: 1-99 (default = 1), indicates the number of levels the lighting will change when the timer runs out.

0

1

0

0

1

10

indicates the time duration of each level

The time interval of brightness change between dimming up and down can be adjusted Valid Values: 1-255 (default = 3), indicates the time duration of each level.

0

2

0

0

3

7

turning On or Off the lights via remote control

Turning On or Off the lights via remote control Valid Values: 1-99 (default = 1), indicates the number of levels when the light is controlled by remote. Lower this number, the finer the control of dimming. Higher the number the faster the dimming

0

1

0

0

1

1

Inclusion

1. Turn the connected lights ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2. Add(Include) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these actions can be done. 3. Normally, the sequence is as follows: when the inclusion process is prompted by your primary controller, single click and release the rocker switch to ON or OFF position. The controller should show that the action was successful. If the controller shows it was a fail, repeat the procedure.

2

Exclusion

1. Turn the connected appliance ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2. Delete(Exclude) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these actions can be done. 3. Normally, the sequence is as follows: when the exclusion process is prompted by your primary controller, single click and release the rocker switch. The controller should show that the action was successful. If the controller shows it was a fail, repeat the procedure.

5

Factory Reset

Please use this procedure only in the event that the network primary controller is lost or otherwise inoperable. All Configuration Parameters can all be restored to their factory default settings by using your primary controller to delete/reset the device. To manually reset, tap the ON button twice quickly and then tap the OFF button twice quickly. Repeat the procedure to restore the settings to the factory default.

6

Additional Special Features

Z-Wave Plus introduces a new process for scene activation – “Central Scene Control”. Press and release the button, it will send a certain command to the central controller via the lifeline association group 1. This allows the controller to react to key pressed, key released and key held down. - Press and release the top button, “Scene 001 Key Pressed” preset by the Gateway will be turned ON. - Press the top button twice, “Scene 001 Key Pressed Twice” preset by the Gateway will be turned ON. - Press the top button 3 times, “Scene 001 Key Pressed 3 Times” preset by the Gateway will be turned ON. - Press and release the bottom button, “Scene 002 Key Pressed” preset by the Gateway will be turned ON. - Press the bottom button twice, “Scene 002 Key Pressed Twice” preset by the Gateway will be turned ON. - Press the bottom button 3 times, “Scene 002 Key Pressed 3 Times” preset by the Gateway will be turned ON.
