Certification Number	ZC10-18026018

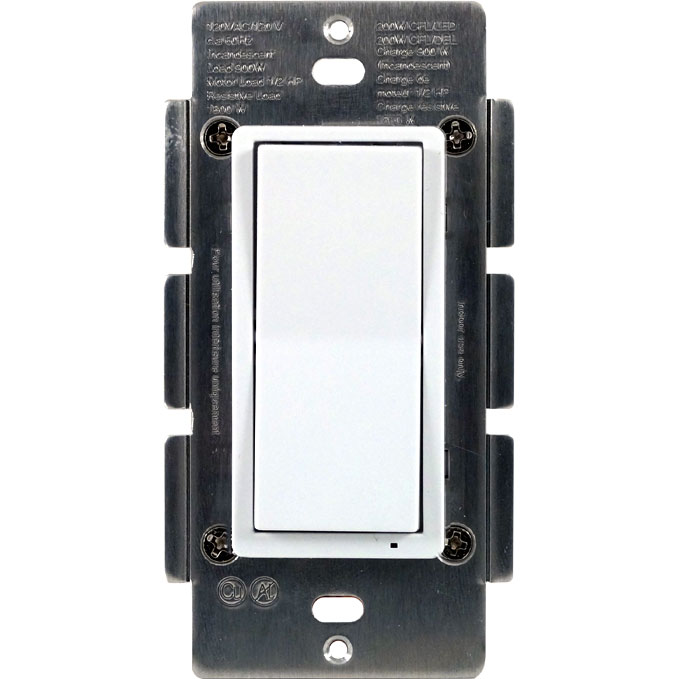

Name	Z-Wave Wall Switch with RGB LED
Short Description	HS-WS200+ In Wall On/Off Switch - Replaces existing wall switch - Remotely or manually turns On or Off lights - Z-Wave Plus certified with 500 series chipset - Support Central Scene - Includes Z-Wave controllable RGB LED indicator - Fits standard wall plates
Long Description	HS-WS200+ In Wall On/Off Switch - Works with incandescent, florescent (CFL), or most LED lighting and appliances - ON/OFF status and location LED indicator - Includes Z-Wave controllable RGB LED indicator - Fits into standard single or multiple gang junction box - Keypad can be replaced manually to match color with other wall switches - Over-The-Air firmware upgrade available with compatible gateway, Z-Wave static controller, or PC and software. - Internal resettable fuse to protect from surge current - Manual reset capability - Support Central Scene
Brand	HomeSeer
Product Identifier	HS-WS200+
OEM Version	HW: 255 FW: 5.06
Hardware Platform	ZM5202
Z-Wave Version	6.71.01
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x000C
Product Type ID	0x4447
Product ID	0x3035
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Firmware Update Meta-Data V4 0x7A 4 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_CONFIGURATION_V3 Configuration V3 0x70 3 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1
S2 Classes	S2_UNAUTHENTICATED, S2_AUTHENTICATED
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual HS-WS200-Manual-v4.pdf
Features	Feature Values Neutral Wire Required Color Value White Z-Wave Scene Type Value Scene & Central Scene Firmware Updatable Value Updatable by Consumer by RF Switch Load Capacity Current Value 15 Amps Switch Load Capacity Watts Value 900 Watts Incandescent Electric Load Type Value Incandescent Fluorescent MLV (Magnetic) ELV (Electronic) LED Inductive (e.g. Motor)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 3 LED indicator the LED indicator will be ON when the connected appliance is ON, and vice versa. 0 1 0 0 0 From To Description 1 1 the LED indicator will be OFF when the connected appliance is OFF, and the LED indicator will be ON when the connected appliance is ON 2 2 the LED indicator will be always Off regardless of the load status 0 0 the LED indicator will be OFF when the connected appliance is ON, and the LED indicator will be ON when the connected appliance is OFF 4 Orientation of the ON/OFF on the rocker switch can be inverted the orientation of the ON/OFF on the rocker switch can be inverted by changing the following configuration with a controller(if supported) 0 1 0 0 0 From To Description 1 1 the connected light will turn OFF by pressing the top side of the rocker switch and turn ON by pressing the bottom side. 0 0 the connected light will turn ON by pressing the top side of the rocker switch and turn OFF by pressing the bottom side. 31 Sets Blink Frequency of LED in Status mode This parameter sets the blink frequency of the LED indicator in status mode. 0 1 0 0 0 From To Description 0 0 No Blink 1 255 1=100 ms
Texts	ID Description Value 5 Factory Reset Please use this procedure only in the event that the network primary controller is lost or otherwise inoperable. All Configuration Parameters can all be restored to their factory default settings by using your primary controller to delete/reset the device. To manually reset, tap the ON button twice quickly and then tap the OFF button twice quickly. Repeat the procedure to restore the settings to the factory default. 1 Inclusion 1. Turn the connected appliance ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2. Add(Include) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these actions can be done. 3. Normally, the sequence is as follows: when the inclusion process is prompted by your primary controller, single click and release the rocker switch to ON or OFF position. The controller should show that the action was successful. If the controller shows it was a fail, repeat the procedure. 2 Exclusion 1. Turn the connected appliance ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2. Delete(Exclude) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these actions can be done. Normally, the sequence is as follows: when the exclusion process is prompted by your primary controller, single click and release the rocker switch. The controller should show that the action was successful. If the controller shows it was a fail, repeat the procedure. 6 Additional Special Features Z-Wave Plus introduces a new process for scene activation – “Central Scene Control”. Press and release the button, it will send a certain command to the central controller via the lifeline association group 1. This allows the controller to react to key pressed, key released and key held down. - Press and release the top button, “Scene 001 Key Pressed” preset by the Gateway will be turned ON. - Press the top button twice, “Scene 001 Key Pressed Twice” preset by the Gateway will be turned ON. - Press the top button 3 times, “Scene 001 Key Pressed 3 Times” preset by the Gateway will be turned ON. - Press and release the bottom button, “Scene 002 Key Pressed” preset by the Gateway will be turned ON. - Press the bottom button twice, “Scene 002 Key Pressed Twice” preset by the Gateway will be turned ON. - Press the bottom button 3 times, “Scene 002 Key Pressed 3 Times” preset by the Gateway will be turned ON.
Supports NWI	Yes
Supports Explorer Frames	Yes
