Product Recognition | |
|---|
Certification Number | ZC10-16105256 |
|---|

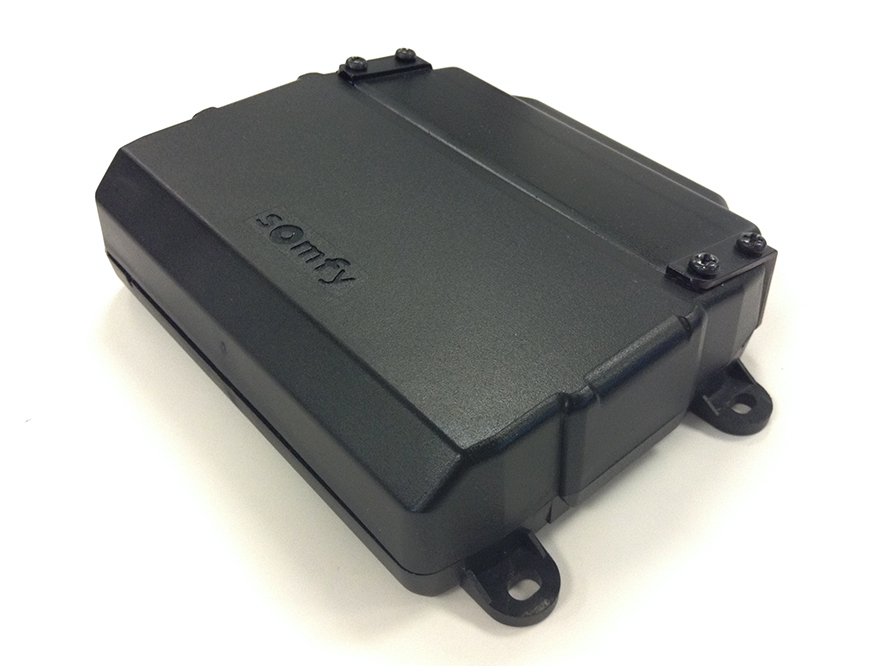

Name | Z-WAVE2RTS Interface |
|---|
Short Description | Z2RTSEU-5 provide the translation from Z-Wave to RTS solution. |
|---|
Long Description | It is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network and it’s security framework. Every mains powered Z-Wave™ enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-spots”.
Z-Wave™ enabled device displaying the Z-Wave™ logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks.
Z-WAVE2RTS interface receives Z-Wave signals and translates them into RTS commands for Somfy’s RTS motor. The Z-Wave2RTS interface supports mulit-channel Command Class for up to 8 devices corresponding to 8 individual or groups of Somfy motorized products. The Z-Wave2RTS requires 12-24Vdc power supply by power adaptor or 5Vdc via micro-USB adaptor. |
|---|
Brand | Somfy |
|---|
Product Identifier | Z2RTSEU-5 |
|---|
OEM Version | HW: 2 FW: 16.09 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Window Covering - No Position/Endpoint |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0047 |
|---|
Product Type ID | 0x3001 |
|---|
Product ID | 0x0B01 |
|---|
User Icon | 0x1800 |
|---|
Installer Icon | 0x1800 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Hospitality, Window Covering |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Communications Connections | Value |
|---|
Manufacturer Proprietary |
| Communications Protocol | | Loads Controlled | | Window Covering Control Features | Value |
|---|
Supports Curtains | Supports Vertical Blinds | Supports Horizontal Blinds/Louvers | Supports Tilt Motion | Supports Up/Down Motion | Supports Left/Right Motion | Supports Open/Close Motion |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | Report DCT status to Hub (node) when DCT port is triggered. The DCT status feedback send to Hub automatically.
If EndPoint is defined, it will be use MultiChannel Command to report the DCT status | 1 | 1 | 0 | Z-Wave Plus Lifeline (Report ZWave2RTS interface address to ZWAVE Hub (node) after reset.) |
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Exclusion:
1. Power ON the Z-Wave2RTS interface.
2. Enable the Z-Wave HUB into exclusion mode.
3. Short press the Z-Wave PROG button for 3 times.
4. The Z-WAVE LED flashes indicating that the Z-Wave2RTS interface has successfully been removed from the Z-Wave network. | 5 | Factory Reset | Reset the Z-Wave module to factory mode:
1. Power OFF the Z-Wave2RTS interface.
2. Press and hold the Z-Wave PROG button.
3. Power ON the Z-Wave2RTS interface and wait for 10 seconds.
4. The Z-Wave LED flashes indicating that the data is cleared and it is open to join Z-Wave network.
Remark: Please use this procedure only in the event that your network primary controller is missing or otherwise inoperable!!! | 1 | Inclusion | Inclusion:
1. Enable the Z-Wave HUB into the Inclusion mode.
2. Short press the Z-Wave PROG button for 3 times. ZWave2RTS interface will be included in the Z-Wave network automatically.
3. The Z-WAVE LED turns OFF indicating that the Z-Wave2RTS interface has successfully joined the Z-Wave network. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
