| Product Recognition | — |
|---|
| Certification Number | ZC08-08090003 |
|---|
| Name | ZDP100 (V3.0)(ZDP100 v3.32 |
|---|

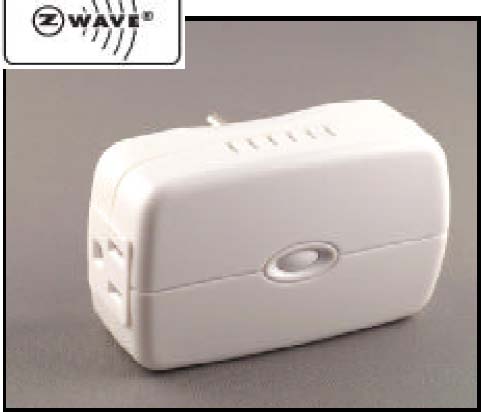

| Long Description | US Plug In Dimmer. Provides remote RF wireless DIMMING and ON/OFF control of lights connected to the Plug-In Lamp Module.
Wall hugging design plugs directly into wall outlet and provides a switched 120 VAC source on the one side PLUS a grounded "always powered" 120 VAC outlet on the other. Programming button on the module is also a manual ON and OFF switch. Controlled outlet also has sense feature that turns it on when load is turned on.
Each Plug-In Lamp Module functions as automatic repeater to other HomePro Modules to ensure full home coverage.
Can request updates from a designated Static Update Controller (SUC). A Static Controller is one that is not moved after its addition to the network. The Static Controller can act as a gateway in the system, since other nodes always know its position. The “always listening” advantage of the Static Controller is that other nodes can transmit information frames to it whenever needed |
|---|
| Brand | Advanced Control Technologies, Inc. |
|---|
| Product Identifier | ZDP100 |
|---|
| OEM Version | v3 |
|---|
| Hardware Platform | ZW0300 |
|---|
| Z-Wave Version | 5.02 (PATCH 3) |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Not Z-Wave Plus |
|---|
| Manufacturer ID | 0x0001 |
|---|
| Product Type ID | 0x4450 |
|---|
| Product ID | 0x3030 |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
