Product Recognition	—
Certification Number	ZC08-09060001

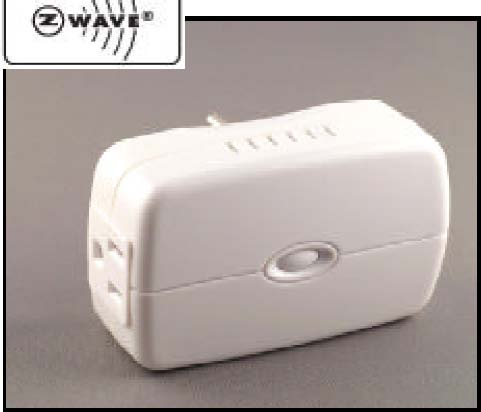

Name	ZDP100 Version 300
Long Description	plug in lamp module.Provides remote RF wireless DIMMING and ON/OFF control of lights connected to the Plug-In Lamp Module. Wall hugging design plugs directly into wall outlet and provides a switched 120 VAC source on the one side PLUS a grounded "always powered" 120 VAC outlet on the other. Programming button on the module is also a manual ON and OFF switch. Controlled outlet also has sense feature that turns it on when load is turned on. Each Plug-In Lamp Module functions as automatic repeater to other HomePro Modules to ensure full home coverage. Can request updates from a designated Static Update Controller (SUC). A Static Controller is one that is not moved after its addition to the network. The Static Controller can act as a gateway in the system, since other nodes always know its position. The “always listening” advantage of the Static Controller is that other nodes can transmit information frames to it whenever needed.
Brand	Advanced Control Technologies, Inc.
Product Identifier	ZDP100 Version 300
OEM Version	4.11
Hardware Platform	ZW0301
Z-Wave Version	5.02 (PATCH 3)
Library Type	SLAVE_ROUTING
Device Type	Not Z-Wave Plus
Manufacturer ID	0x0001
Product Type ID	0x4450
Product ID	0x3030
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1 COMMAND_CLASS_PROTECTION Protection 0x75 1
Documents
