COMMAND_CLASS_NOTIFICATION_V7

Notification V7

0x71

7

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_WAKE_UP_V2

Wake Up V2

0x84

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product or Owner's Manual

Communications Connections

Sensors

Battery Quantity

Battery Type

Supported Notification Types

1

5

0

Z-Wave Plus Lifeline

1

Inclusion

‘ADDING’ YOUR Z-WAVE UNITS Do not attempt to add your Z-Wave Module unless you are familiar with the operation of your Z-Wave Controller. 1. Read the instructions for your Z-Wave Controller regarding adding new devices. Then initiate the inclusion function from your Z-Wave Controller. 2. Triple-press the add button once the Z-Wave Module is on the device. The LED will show a quick blink once per second while the module is being added. This process may take as long as 30 seconds, but typically is much quicker. If you triple-press too quickly or too slowly, inclusion will not start. In this case wait a few seconds and then try again. 3. Upon successful inclusion, the Z-Wave Module LED will flash 3 times. If inclusion fails, the LED will simply stop its blink pattern. 4. If inclusion does not succeed, restart at step 1. 5. If successful, place the alarm on its base and wait at least 30 seconds. 6. Press the alarm’s test button and verify the Z-Wave Controller receives Notification Reports. 7. After the Z-Wave Module is included, you may define association groups or perform other configuration operations from the Z-Wave Controller.

4

Device Wake-Up

Waking the Module If the module has been successfully included, when pressing the button, the LED will flash three times. In addition, the module will communicate with the Z-Wave Controller, accepting any pending commands.

5

Factory Reset

‘FACTORY RESET’ YOUR Z-WAVE UNITS This operation should only be performed if the module is to be excluded from the network and if the Z-Wave Controller is also being reset or removed. 1. Press and hold the button for 10 seconds. The LED will go off. Now release the button. The LED will flash once as the module resets. 2. After resetting, either a) include the module into a different Z-Wave Controller, or b) remove the battery from the module to avoid power draining. * use the reset procedure only when the primary controller is missing or inoperable.

2

Exclusion

‘REMOVING’ YOUR Z-WAVE UNITS 1. Read the instructions on your Z-Wave Controller regarding removing devices. Note that a device can be removed using any Z-Wave Controller, not just the Controller that was used to add the Module. Initiate the removal process at your Controller. 2. Triple-press the button on the Z-Wave Module. The LED will show a quick double-blink once per second while the module is being removed. This process may take up to 30 seconds. If you triple-press too quickly or too slowly the removing function will not start. In this case you must wait a few seconds and then try again. 3. Upon successful removal, the Z-Wave Module LED will flash 5 times. If removal fails, the LED will simply stop its blink pattern. 4. If the removal operation does not succeed, restart at step 1. 5. After removing, either a) add the Z-Wave Module into a different Z-Wave Controller, or b) remove the battery from the Z-Wave Module. NOTE: The effective range of the wireless module may be reduced by walls and other obstructions in the building. It is recommended not to exceed 40m as the maximum distance between smoke alarms and the Controller.

6

Additional Special Features

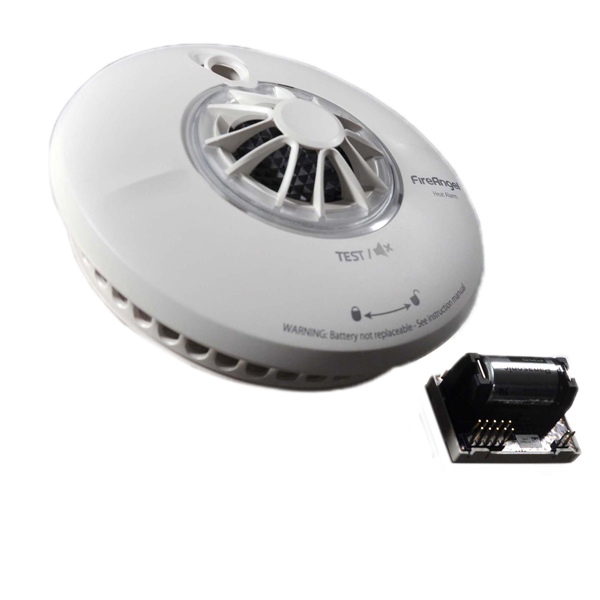

- For use with ST-630 (Smoke Alarm) & HT-630 (Heat Alarm). - 3V removable (CR2) lithium battery. - Z-Wave Plus™ ‘Next Gen’ Z-Wave hardware platform. - Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance the end user experience and make Z-Wave installations even faster and easier to install and set up. 50% improvement in battery life. 67% improvement in range. 250% more bandwidth. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated devices within the network will act as repeaters regardless of vendor to increase reliability of the network.

Heat Alarm

(Refer to parameters): State idle

Air temperature
