Product Recognition
Certification Number	ZC10-15070023

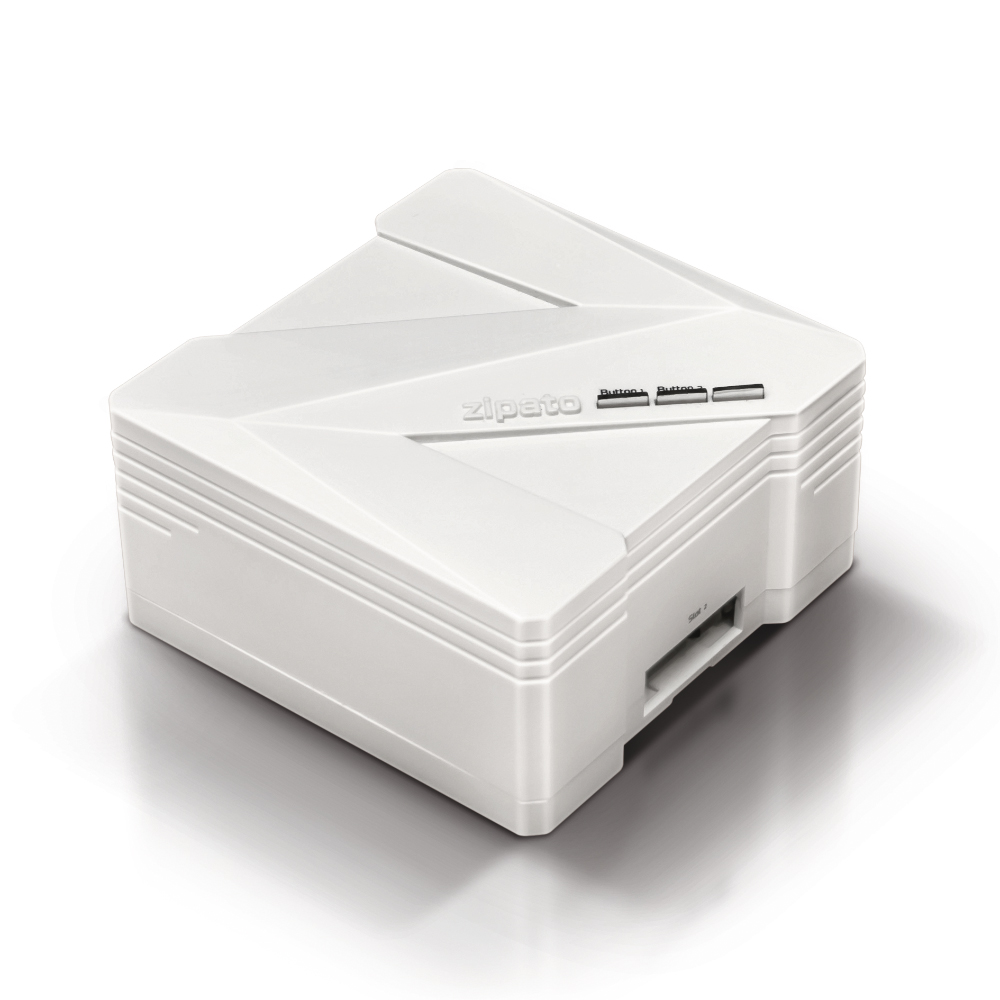

Name	Zipabox
Short Description	Zipabox is a next-generation automation controler that lets you control all your home electronics. Modular design allows functional expansion by just snapping in additional modules.
Long Description	Zipabox is a next-generation automation controler that lets you control all your home electronics. Most often it uses simple, reliable, low-power radio waves that easily travel through walls, floors and cabinets, but it can also use existing powerlines or BUS wires to connect all your home electronics. Throught Zipabox multi-enviroment capabilites, Zipato control can be added to almost any electronic device in your house, such as appliances, window shades, thermostats and home lighting. Modular design allows functional expansion by just snapping in additional modules. A variety of expanding modules are already available for increasing Zipato functionality (i.e. security module, z-wave module, power module, etc...)
Brand	Zipato
Product Identifier	ZB.ZWAU.G
OEM Version	1
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_BRIDGE
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0131
Product Type ID	0x0001
Product ID	0x0003
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	Australia
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_MULTI_COMMAND Multi-Command V1 0x8F 0 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_COLOR_SWITCH_V1 Color Switch V1 0x33 0 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_ZWAVEPLUS_INFO Z-Wave Plus Info 0x5E 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_NOTIFICATION Notification V1 0x71 0 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER Meter 0x32 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1 COMMAND_CLASS_METER_PULSE Meter Pulse 0x35 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Zipato Z-Wave User Manual 21.07.2015 - 144DPI.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion It is recommended to add new devices with the device manager by pressing the “Add New Device” button. Select the Z-Wave logo and follow on-screen instructions. 24 Controller Exclusion * Navigate to Z-Wave network management tools * Click the “Remove node” button and follow onscreen instructions 3 Learn Mode (adding another controller) * Navigate to Z-Wave network management tools * Click the “START LEARN MODE” button and follow onscreen instructions. 5 Factory Reset * Navigate to Z-Wave network management tools * Click the “Z-WAVE RESET” button and follow onscreen instructions.
Supports NWI	Yes
Supports Explorer Frames	Yes
