Product Recognition | |
|---|
Certification Number | ZC10-17115860 |
|---|

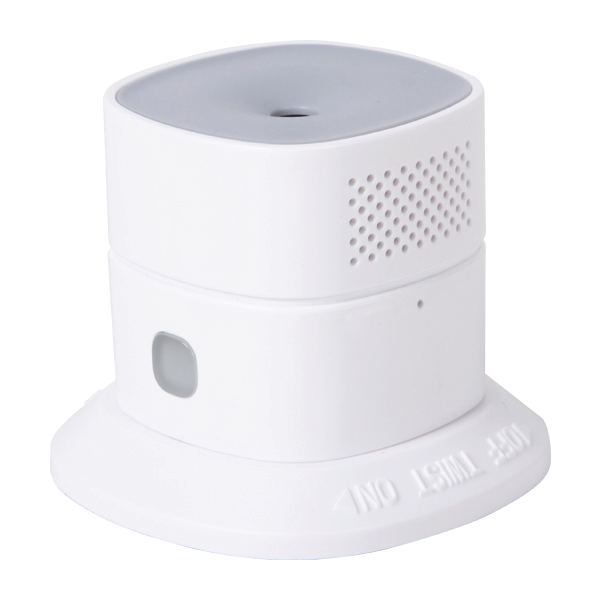

Name | Zipato Carbon Monoxide Sensor |
|---|
Short Description | Zipato Carbon Monoxide Sensor (Z-Wave) is designed to give early warning of higher carbon monoxide level, based on Z-Wave technology. |
|---|
Long Description | Zipato Carbon Monoxide Sensor (Z-Wave) is designed to give early warning of higher carbon monoxide level, based on Z-Wave technology. Z-Wave is a wireless communication protocol designed for remote control of appliances in residential automated homes and light commercial environments. |
|---|
Brand | Zipato |
|---|
Product Identifier | hm-hs1ca-z.eu |
|---|
OEM Version | HW: 255 FW: 1.10 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0131 |
|---|
Product Type ID | 0x8005 |
|---|
Product ID | 0x1000 |
|---|
User Icon | 0x0C02 |
|---|
Installer Icon | 0x0C02 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SENSOR_BINARY_V2 | Sensor Binary V2 | 0x30 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Supported Notification Types | Value |
|---|
CO Alarm | Home Security |
| Battery Quantity | | Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Association group 1: Lifeline association group Include command classes: Battery report, Notification report, and Device Reset Locally notification, Binary report. | 2 | 5 | 0 | Association group 2: Root Device group(Binary Sensor) Binary Sensor Command Class: Compatible with 300 series 1-Binary Sensor reports status of CO or no CO via Lifeline. 2-When the sensor detects status change of CO and no CO, the device will be triggered. | 3 | 5 | 0 | Association group 3: Root Device group(Notification) 1-Notification reports status of detect CO or no CO via Lifeline. 2-When the sensor detects status change of CO and no CO, the device will be triggered. |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Press button on sensor 3 times within 1.5s, Green LED will blink 3 times within 1 second.
If Inclusion Process is successful, Green led will turn off. | 2 | Exclusion | Press button on sensor 3 times within 1.5s, Green LED will blink 3 times within 1 second.
If Inclusion Process is successful, Green led will turn off. | 5 | Factory Reset | Remove battery.
Insert battery while holding button on sensor.
Please use this procedure only when the network primary
controller is missing or otherwise inoperable. | 4 | Device Wake-Up | Wake up Notification is transmitted every 24 hours by default.
Wake up Notification is transmitted after Notification Report is Transmitted |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
CO Alarm | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
