Product Recognition | |
|---|
Certification Number | ZC10-16095232 |
|---|

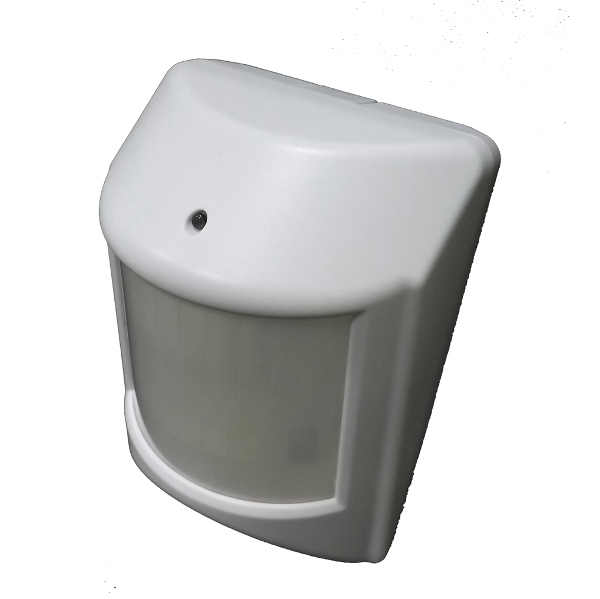

Name | Zipato Multisensor Duo |
|---|
Short Description | Motion and temperature sensor in one device. |
|---|
Long Description | Motion and temperature sensor in one device. Zipato Multisensor Duo offers elaborate security and ambient sensing options. Multi-functional nature of this product allows you to detect motion, and measure room temperature. When used with Zipato home automation controllers it can be part of any automation scenario created using Zipato Rule Creator. Accordingly it can be used to automatically trigger other devices when activated. |
|---|
Brand | Zipato |
|---|
Product Identifier | vs-zp3102+.us |
|---|
OEM Version | HW: 1 FW: 8.02:10.03 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0131 |
|---|
Product Type ID | 0x2002 |
|---|
Product ID | 0x0205 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | Value |
|---|
Motion/No Motion (Binary) | Air Temperature |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Motion retrigger interval | 1 to 255 minutes to setup the re-trigger when there is no movement detected in the period of time. | 0 | 1 | 0 | 0 | 3 | From | To | Description |
|---|
1 | 127 | 1 to 127 minutes | -128 | -1 | 128 to 255 minutes |
| 3 | PIR sensitivity | 7 levels sensitivity, 1 = least sensitive, 7 = most sensitive, | 0 | 1 | 0 | 0 | 4 | From | To | Description |
|---|
1 | 7 | PIR sensitivity |
| 2 | Celsius/Fahrenheit | Select default temperature unit | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Celsius | 1 | 1 | Fahrenheit |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Put your
Z-Wave Controller into “exclusion” mode, and follow the instructions
to remove the Multisensor Duo from you controller network. Press
the program switch of Multisensor Duo once to be excluded. The
LED on the Multisensor Duo should start to flash. | 1 | Inclusion | Put your Z-Wave
Controller into “inclusion” mode, and follow the instructions to add
Multisensor Duo to your controller. To get in the “inclusion” mode,
the distance between sensor and controller should be up to 1 meter.
Press the program switch of Multisensor Duo once. The LED on the
sensor should stop flashing, if not, please try again. | 4 | Device Wake-Up | It will be triggered after opening the front cover.
Red LED will last 10 seconds and Multisensor Duo will send “Wake
Up Notification” after 10 seconds. | 5 | Factory Reset | Remove cover to trigged tamper
switch, LED ON & send out Alarm Report. Press Program Switch
10 times within 10 seconds. Multisensor Duo will send the “Device
Reset Locally Notification” command and reset to the factory
default settings.
(Remark: This is to be done only in case of primary
controller being inoperable or otherwise unavailable.) |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
