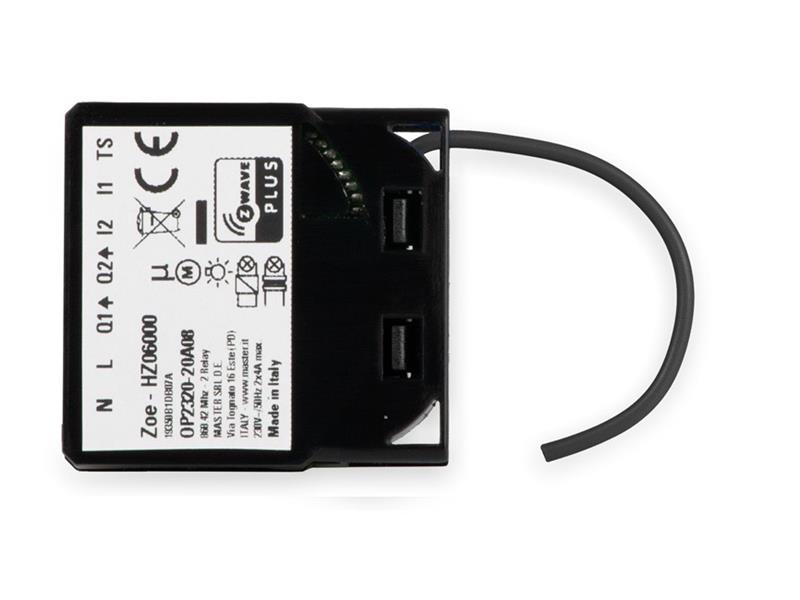

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_SWITCH_ALL

Switch All

0x27

1

COMMAND_CLASS_SWITCH_BINARY

Switch Binary

0x25

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SENSOR_MULTILEVEL_V7

Sensor Multilevel V7

0x31

7

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_MULTI_CHANNEL_V4

Multi-Channel V4

0x60

4

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_METER_V4

Meter V4

0x32

4

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2

Association Group Information V2

0x59

2

COMMAND_CLASS_BASIC

Basic

0x20

1

Manual_Primary_Lang

Product Manual in English

Switch Load Capacity Watts

Color

Firmware Updatable

Loads Controlled

Neutral Wire Required

Switch Load Capacity Current

Switch Type

Z-Wave Scene Type

Electric Load Type

1

1

0

Lifeline

Lifeline group (reserved for communication with the main controller), 1 node allowed.

11

Parameter no. 11 - Automatic turning off output Q1 after set time

When relay Q1 is ON it goes automatically OFF after time defined by this parameter. Timer is reset to zero each time the module receive ON command regardless from where it comes (push button, associated module, controller,..). Available configuration parameters (data type is 2 Byte DEC): • default value 0 • 0 - Auto OFF disabled • 1 - 32535 = 1second (0,01s) - 32535 seconds (325,35s) Auto OFF enabled with define time, step is 1s or 10ms according to parameter nr.15.

1

2

0

32535

0

2

Parameter no. 2 – Input 2 switch type

Available configuration parameters (data type is 1 Byte DEC): • default value 1 • 0 - mono-stable switch type (push button) • 1 - bi-stable switch type

1

1

0

1

1

43

Parameter no. 43 – Power reporting in Watts by time interval for Q2

Set value means time interval (0 – 32535) in seconds, when power report is send. Available configuration parameters (data type is 2 Byte DEC): • default value 300 (power report in Watts is send each 300s) • 0 - reporting disabled • 1 - 32535 = 1 second - 32535 seconds. Reporting enabled, Power report is send with time interval set by entered value.

1

2

0

32535

300

41

Parameter no. 41 – Power reporting in Watts on power change for Q2

Set value means percentage, set value from 0 – 100 = 0% - 100%. Available configuration parameters (data type is 1 Byte DEC): • default value 10 • 0 - Reporting Disabled • 1 - 100 = 1% - 100% Reporting enabled. Power report is send (push) only when actual power in Watts in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1%. NOTE: if power changed is less than 1W, the report is not send (pushed), independent of percentage set.

1

1

0

100

10

42

Parameter no. 42 – Power reporting in Watts by time interval for Q1

Set value means time interval (0 – 32535) in seconds, when power report is send. Available configuration parameters (data type is 2 Byte DEC): • default value 300 (power report in Watts is send each 300s) • 0 - reporting disabled • 1 - 32535 = 1 second - 32535 seconds. Reporting enabled, Power report is send with time interval set by entered value.

1

2

0

32535

300

64

Parameter no. 64 – Output Q2 Switch selection

Set value means the type of the device that is connected to the Q2 output. The device type can be normally open (NO) or normally close (NC). Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - When system is turned off the output is 0V (NC). • 1 - When system is turned off the output is 230V (NO).

1

1

0

1

0

120

Parameter no. 120 – Temperature sensor reporting

Parameter no. 120 – Temperature sensor reporting If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • Default value 5 = 0,5°C • 0 – Reporting disabled • 1- 127 = 0,1°C – 12,7°C, step is 0,1°C

1

1

0

127

5

110

Parameter no. 110 – Temperature sensor offset settings

Set value is added or subtracted to actual measured value by sensor. Available configuration parameters (data type is 2 Byte DEC): • default value 32536 • 32536 - offset is 0.0C • From 1 to 100 - value from 0.1 °C to 10.0 °C is added to actual measured temperature. • From 1001 to 1100 - value from -0.1 °C to -10.0 °C is subtracted to actual measured temperature.

1

2

0

32536

32536

63

Parameter no. 63 – Output Q1 Switch selection

Set value means the type of the device that is connected to the Q1 output. The device type can be normally open (NO) or normally close (NC). Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - When system is turned off the output is 0V (NC). • 1 - When system is turned off the output is 230V (NO).

1

1

0

1

0

1

Parameter 1

Parameter no. 1 – Input 1 switch type Available configuration parameters (data type is 1 Byte DEC): • default value 1 • 0 - mono-stable switch type (push button) • 1 - bi-stable switch type

1

1

0

1

1

10

Parameter no. 10 - Activate / deactivate functions ALL ON/ALL OFF

Available configuration parameters (data type is 2 Byte DEC): • default value 255 • 255 - ALL ON active, ALL OFF active. • 0 - ALL ON is not active ALL OFF is not active • 1 - ALL ON is not active ALL OFF active • 2 - ALL ON active ALL OFF is not active Zoe Power module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system.

1

2

0

255

255

2

Classic Exclusion

• Connect module to power supply • bring module within maximum 1 meter (3feet) of the main controller, • enable add/remove mode on main controller, • press push button I1 5 times within 3s (10 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV

1

Classic Inclusion

• Connect module to power supply (with temperature sensor connected - if purchased), • enable add/remove mode on main controller • auto-inclusion (works for about 5 seconds after connected to power supply) or • press push button I1 three times within 3s (6 times change switch state within 3 seconds) or • press service button S (only applicable for 24 V SELV supply voltage) for more than 2 second.

5

Factory Reset Procedure

1. Connect the device to the power supply 2. Within the first minute (60 seconds) the device is connected to the power supply, toggle the switch connected to the I1 terminal 5 times within 3 seconds (5 times change switch state) OR if the device is powered by 24 V SELV supply, press and hold the S (Service) button for more than 6 seconds. By resetting the device, all custom parameters previously set on the device will return to their default values, and the node ID will be deleted. Use this reset procedure only when the main gateway (hub) is missing or otherwise inoperable.

Electric meter

Import

Electric Meter Consumption

Air temperature
