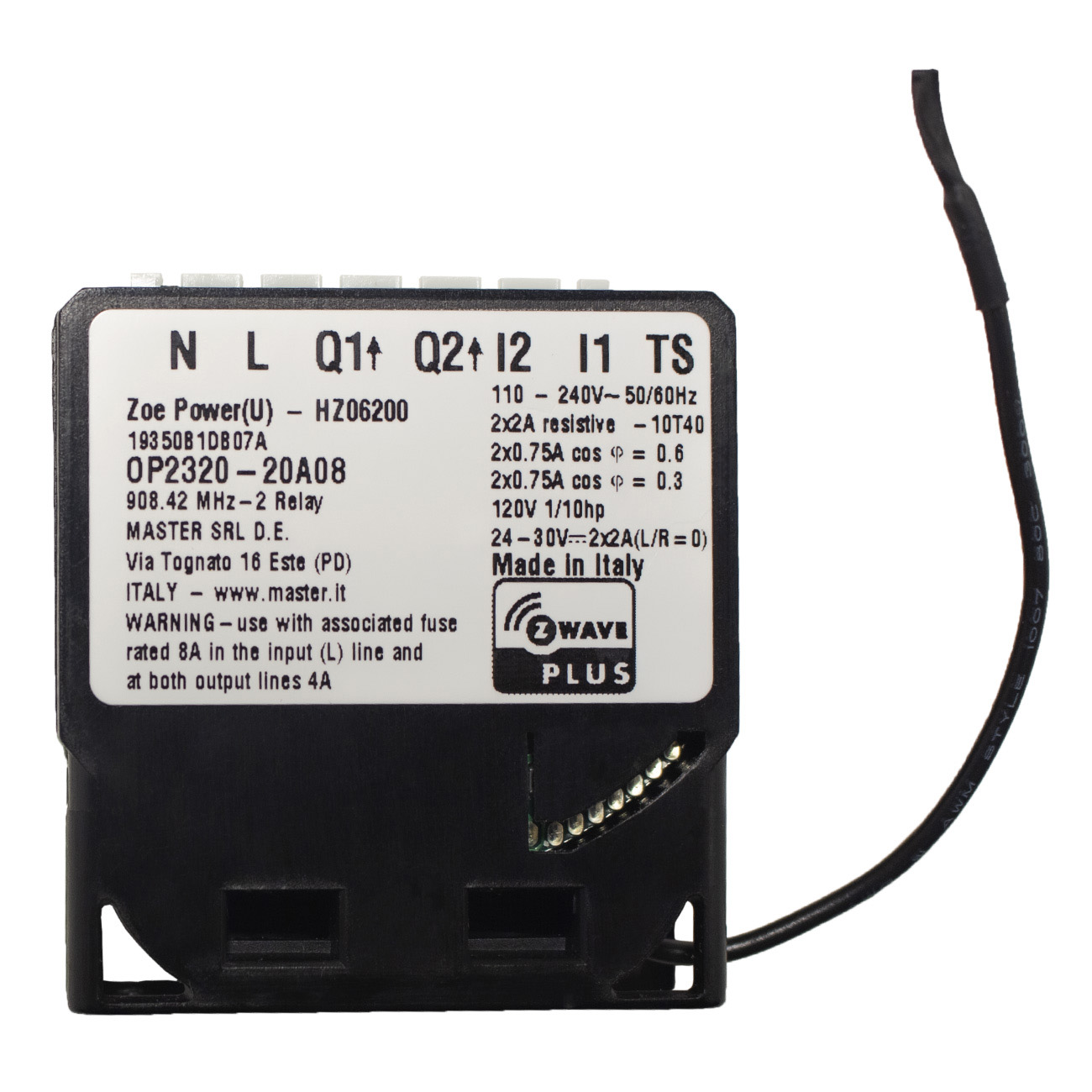

11 | Parameter no. 11 - Automatic turning off output Q1 after set time | When relay Q1 is ON it goes automatically OFF after time defined by this parameter. Timer is reset to zero each time the module receive ON command regardless from where it comes (push button, associated module, controller,..). Available configuration parameters (data type is 2 Byte DEC) • default value 0 • 0 - Auto OFF disabled • 1 - 32535 = 1second (0.01s) - 32535 seconds (325.35s) Auto OFF enabled with define time, step is 1s or 10ms according to parameter nr.15. | 1 | 2 | 0 | 32525 | 0 | From | To | Description |
|---|
0 | 0 | Auto OFF disabled | 1 | 32525 | 1second (0.01s) - 32535 seconds (325.35s) Auto OFF enabled with define time, step is 1s or 10ms according to parameter nr.15. |
|
1 | Parameter no. 1 – Input 1 switch type | Available configuration parameters (data type is 1 Byte DEC): • default value 1 • 0 - mono-stable switch type (push button) • 1 - bi-stable switch type | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
1 | 1 | bi-stable switch type | 0 | 0 | mono-stable switch type (push button) |
|
2 | Parameter no. 2 – Input 2 switch type | Available configuration parameters (data type is 1 Byte DEC): • default value 1 • 0 - mono-stable switch type (push button) • 1 - bi-stable switch type | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 0 | mono-stable switch type (push button) | 1 | 1 | bi-stable switch type |
|
10 | Parameter no. 10 - Activate / deactivate functions ALL ON/ALL OFF | Available configuration parameters (data type is 2 Byte DEC): • default value 255 • 255 - ALL ON active, ALL OFF active. • 0 - ALL ON is not active ALL OFF is not active • 1 - ALL ON is not active ALL OFF active • 2 - ALL ON active ALL OFF is not active Zoe Power module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system. | 1 | 2 | 0 | 255 | 255 | From | To | Description |
|---|
0 | 0 | ALL ON is not active ALL OFF is not active | 1 | 1 | ALL ON is not active ALL OFF active | 2 | 2 | ALL ON active ALL OFF is not active | 255 | 255 | ALL ON active, ALL OFF active |
|
41 | Parameter no. 41 – Power reporting in Watts on power change for Q2 | Set value means percentage, set value from 0 – 100 = 0% - 100%. Available configuration parameters (data type is 1 Byte DEC): • default value 10 • 0 - Reporting Disabled • 1 - 100 = 1% - 100% Reporting enabled. Power report is send (push) only when actual power in Watts in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1%. NOTE: if power changed is less than 1W, the report is not send (pushed), independent of percentage set. | 1 | 1 | 0 | 100 | 10 | From | To | Description |
|---|
0 | 0 | Reporting Disabled | 1 | 100 | 1% - 100% Reporting enabled. Power report is send (push) only when actual power in Watts in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1%. NOTE: if power changed is less than 1W, the report is not send (pushed), independent of percentage set. |
|
110 | Parameter no. 110 – Temperature sensor offset settings | Set value is added or subtracted to actual measured value by sensor. Available configuration parameters (data type is 2 Byte DEC): • default value 32536 • 32536 - offset is 0.0C • From 1 to 100 - value from 0.1 °C to 10.0 °C is added to actual measured temperature. • From 1001 to 1100 - value from -0.1 °C to -10.0 °C is subtracted to actual measured temperature. | 1 | 2 | 0 | 32526 | 32526 | From | To | Description |
|---|
1 | 100 | From 1 to 100 - value from 0.1 °C to 10.0 °C is added to actual measured temperature. | 1001 | 1100 | From 1001 to 1100 - value from -0.1 °C to -10.0 °C is subtracted to actual measured temperature. | 32526 | 32526 | offset is 0.0C |
|
42 | Parameter no. 42 – Power reporting in Watts by time interval for Q1 | Set value means time interval (0 – 32535) in seconds, when power report is send. Available configuration parameters (data type is 2 Byte DEC): • default value 300 (power report in Watts is send each 300s) • 0 - reporting disabled • 1 - 32535 = 1 second - 32535 seconds. Reporting enabled, Power report is send with time interval set by entered value. | 1 | 2 | 0 | 32525 | 300 | From | To | Description |
|---|
0 | 0 | reporting disabled | 1 | 32525 | 1 second - 32535 seconds. Reporting enabled, Power report is send with time interval set by entered value. |
|
63 | Parameter no. 63 – Output Q1 Switch selection | Set value means the type of the device that is connected to the Q1 output. The device type can be normally open (NO) or normally close (NC). Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - When system is turned off the output is 0V (NC). • 1 - When system is turned off the output is 230V (NO). | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | When system is turned off the output is 0V (NC). | 1 | 1 | When system is turned off the output is 230V (NO). |
|
64 | Parameter no. 64 – Output Q2 Switch selection | Set value means the type of the device that is connected to the Q2 output. The device type can be normally open (NO) or normally close (NC). Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - When system is turned off the output is 0V (NC). • 1 - When system is turned off the output is 230V (NO). | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | When system is turned off the output is 0V (NC). | 1 | 1 | When system is turned off the output is 230V (NO). |
|
43 | Parameter no. 43 – Power reporting in Watts by time interval for Q2 | Set value means time interval (0 – 32535) in seconds, when power report is send. Available configuration parameters (data type is 2 Byte DEC): • default value 300 (power report in Watts is send each 300s) • 0 - reporting disabled • 1 - 32535 = 1 second - 32535 seconds. Reporting enabled, Power report is send with time interval set by entered value | 1 | 2 | 0 | 32525 | 300 | From | To | Description |
|---|
0 | 0 | reporting disabled | 1 | 32525 | 1 second - 32535 seconds. Reporting enabled, Power report is send with time interval set by entered value. |
|
120 | Parameter no. 120 – Temperature sensor reporting | If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • Default value 5 = 0.5°C • 0 – Reporting disabled • 1- 127 = 0.1°C – 12.7°C, step is 0.1 | 1 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 0 | Reporting disabled | 1 | 127 | 0.1°C – 12.7°C, step is 0.1°C |
|
