Product Recognition | |
|---|
Certification Number | ZC12-22040336 |
|---|

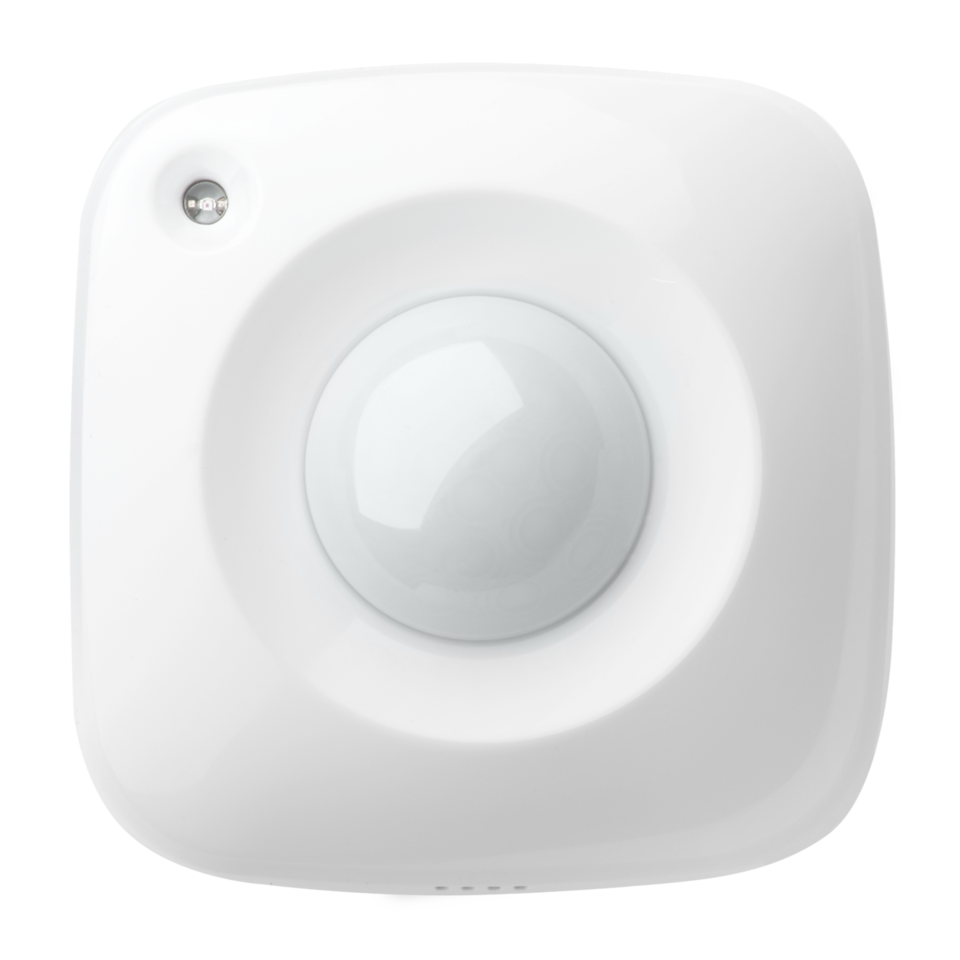

Name | Zooz 4-in-1 Sensor 700 Series |
|---|
Short Description | The new 700 Series of the best selling Zooz 4-in-1 Sensor. |
|---|
Long Description | PRODUCT FEATURES:
- 4 different sensors in 1 smart device: motion, light, temperature, and humidity
- Customize your sensor with adjustable motion and reporting settings
- NEW 700 Series Z-Wave™ Chip
- SmartStart and S2 Security
- Built-in tamper protection
SPECIFICATIONS:
- Power: 1 CR123A battery (included)
- Wireless Range: Up to 300 feet line of sight
- Operating Temperature: 5° - 104°F
- Weight: 2.0 oz
- Dimensions: 2.25" x 2.25" x 1"
- Installation: Indoor Use Only |
|---|
Brand | Zooz |
|---|
Product Identifier | ZSE40EU-700 |
|---|
Product Line | Home Security |
|---|
OEM Version | HW: 2 FW: 32.32 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0x2021 |
|---|
Product ID | 0x2101 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Multilevel Sensor V11 | 0x31 | 11 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Lifeline communication to the hub. | 2 | 5 | 0 | Group 2 | Basic set reports sent when motion is detected. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Temperature Unit | Use this parameter to switch from Fahrenheit to Celsius scale. | 2 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Celsius | 1 | 1 | Fahrenheit |
| 4 | Light Reporting Threshold | Reports light level in percentage (1-100). | 2 | 1 | 5 | 50 | 25 | From | To | Description |
|---|
5 | 50 | percent |
| 5 | Motion Clear Time | Use it to set trigger interval - the time when motion is reported again after initial trigger. | 2 | 1 | 1 | 127 | 3 | From | To | Description |
|---|
1 | 127 | seconds |
| 6 | Motion Sensitivity Level | Use it to adjust PIR sensor sensitivity. | 2 | 1 | 1 | 7 | 3 | From | To | Description |
|---|
1 | 7 | where 1 = very high sensitivity and 7 = very low sensitivity. |
| 7 | LED Indicator Mode | Use it to choose between LED indicator modes. | 2 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
1 | 1 | LED indicator is turned off (no visual notifications). | 2 | 2 | temperature and motion indicated with flashing light. Flashes every 3 minutes for temperature. | 3 | 3 | no indication for temperature, motion indicated with red flashing light. |
| 8 | Retry Count | Set 0~10 Retry Count, default:3 | 2 | 1 | 0 | 10 | 3 | From | To | Description |
|---|
0 | 10 | retry count |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Scan the QR code or enter the PIN located under the back cover if your hub supports SmartStart. | 1 | Classic Inclusion | Initiate inclusion (pairing) in the app (or web interface).
Click the Z-Wave button once.
The LED indicator will blink red to signal communication and green once the PIN is entered, then turn off to confirm inclusion. | 2 | Classic Exclusion | 1. Bring the sensor within direct range of your Z-Wave gateway (hub).
2. Put the Z-Wave hub into exclusion mode (not sure how to do that? ask@getzooz.com).
3. Click the Z-Wave button with a paperclip once (it will blink green).
4. Your hub will confirm exclusion and the device will disappear from your controller's device list. | 4 | Wake-Up Procedure | Press and release the Z-Wave button once to wake the device up. The LED indicator will flash once (blue or orange). | 5 | Factory Reset Procedure | If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete
the reset process manually, remove the back cover to trigger tamper switch. Press and release the Z-Wave button using a paperclip 10 TIMES quickly (within 10 seconds). |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle | Home Security | Cover status: Tampering, product cover removed | Home Security | Motion sensor status: Motion detection |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Illuminance | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
