Certification Number | ZC12-22040335 |
|---|

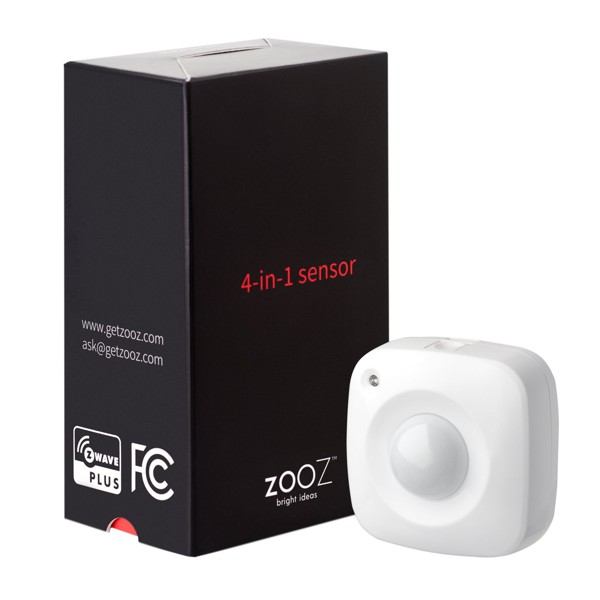

Name | Zooz 4-in-1 Sensor 700 Series |
|---|
Short Description | The new 700 Series of the best selling Zooz 4-in-1 Sensor. |
|---|
Long Description | PRODUCT FEATURES:
- 4 different sensors in 1 smart device: motion, light, temperature, and humidity
- Customize your sensor with adjustable motion and reporting settings
- NEW 700 Series Z-Wave™ Chip
- SmartStart and S2 Security
- Built-in tamper protection
SPECIFICATIONS:
- Power: 1 CR123A battery (included)
- Wireless Range: Up to 300 feet line of sight
- Operating Temperature: 5° - 104°F
- Weight: 2.0 oz
- Dimensions: 2.25" x 2.25" x 1"
- Installation: Indoor Use Only |
|---|
Brand | Zooz |
|---|
Product Identifier | ZSE40AU-700 |
|---|
Product Line | Home Security |
|---|
OEM Version | HW: 3 FW: 32.32 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0x2021 |
|---|
Product ID | 0x2101 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | ANZ: 919.80MHz, 921.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Australia, Brazil, Malaysia, New Zealand |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Multilevel Sensor V11 | 0x31 | 11 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Battery Quantity | | Battery Type | | Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | The 4-in-1 sensor supports Group 1 with up to five devices for Lifeline communication. | 2 | 5 | 0 | Group 2 | The 4-in-1 sensor supports Group 2 with up to five devices for basic set reports. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
7 | LED Mode | Use it to choose between LED indicator modes. | 2 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
1 | 1 | LED indicator is turned off (no visual notifications). | 2 | 2 | temperature and motion indicated with flashing light. Flashes every 3 minutes for temperature. | 3 | 3 | no indication for temperature, motion indicated with red flashing light. |
| 8 | Retry Count | Set 0~10 Retry Count, default:3 | 2 | 1 | 0 | 10 | 3 | From | To | Description |
|---|
0 | 10 | retry count |
| 1 | Temperature Unit | Use this parameter to switch from Fahrenheit to Celsius scale. | 2 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Celsius | 1 | 1 | Fahrenheit |
| 4 | Light Reporting Threshold | Use it to set brightness change to be reported by the sensor.
| 2 | 1 | 5 | 50 | 25 | From | To | Description |
|---|
5 | 50 | where 5 stands for 5% and 50 stands for 50% |
| 5 | Motion Clear Time | Use it to set trigger interval - the time when motion is reported again after initial trigger. | 2 | 1 | 1 | 127 | 3 | From | To | Description |
|---|
1 | 127 | minutes |
| 6 | Motion Sensitivity | Use it to adjust PIR sensor sensitivity. | 2 | 1 | 1 | 7 | 4 | From | To | Description |
|---|
1 | 7 | 1 = very high sensitivity and 7 = very low sensitivity |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Under Z-Wave Control | 1 | Classic Inclusion | 1. Insert the battery.
2. Place the sensor near the location where it will be mounted.
3. Initiate inclusion in the Z-Wave hub.
4. Click the Z-Wave button on the sensor with a paperclip once.
5. The LED indicator will blink red to signal communication and green once the PIN is entered, then turn off to confirm inclusion. | 2 | Classic Exclusion | 1. Initiate EXCLUSION and click the Z-Wave button on the sensor once.
2. Make sure the battery cover is closed tightly when adding the sensor.
3. Click the Z-Wave button once every 15 seconds for 2 minutes after the sensor joins the network to keep it
awake so it can fully configure.
4. Click the Z-Wave button on the sensor 6-7 times quickly when adding it. | 4 | Wake-Up Procedure | Press and release the Z-Wave button once to wake the device up. The LED indicator will flash once (blue or orange). | 5 | Factory Reset Procedure | If your primary controller is missing or
inoperable, you may need to reset the
device to factory settings. To complete
the reset process manually, remove the
back cover to trigger tamper switch.
Press and release the Z-Wave button
using a paperclip 10 TIMES quickly
(within 10 seconds). |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | (Refer to parameters): State idle | Home Security | Cover status: Tampering, product cover removed | Home Security | Motion sensor status: Motion detection |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Illuminance | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
