| Product Recognition | |
|---|
| Certification Number | ZC12-21070270 |
|---|

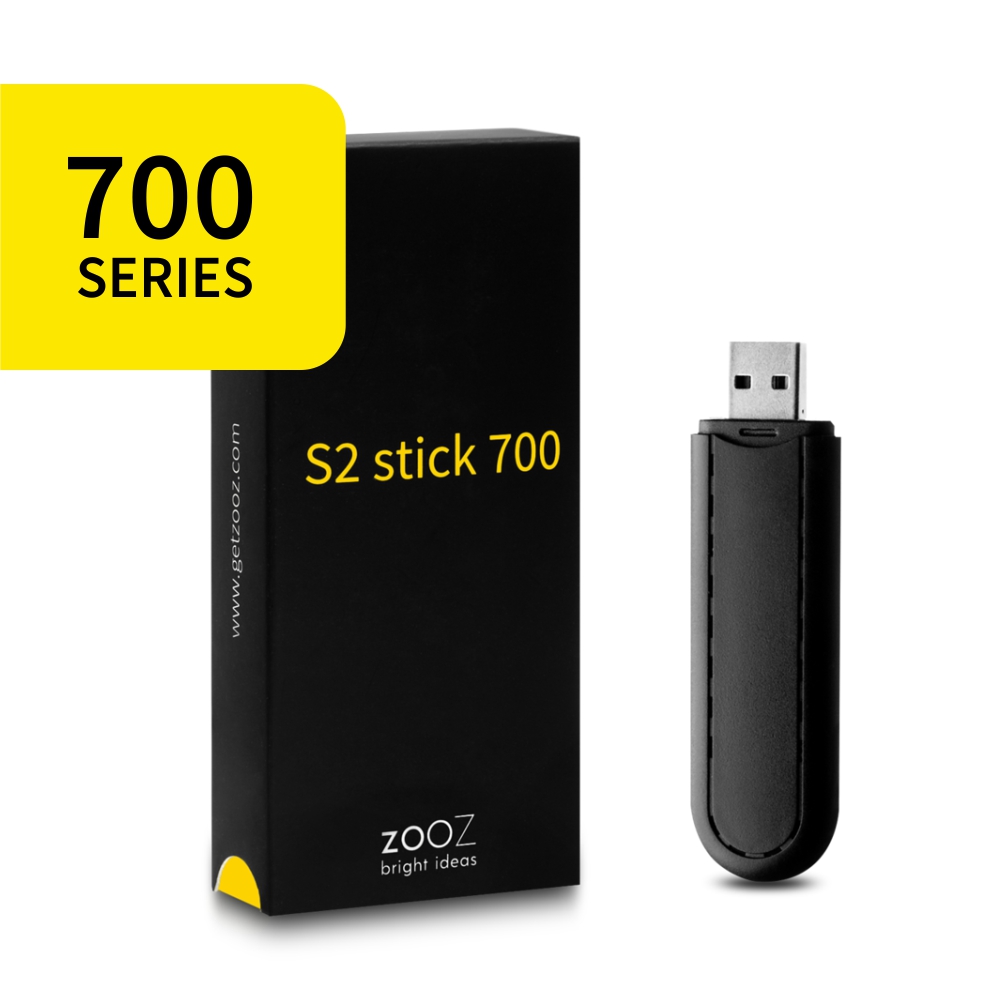

| Name | ZOOZ USB 700 SERIES Z-WAVE PLUS S2 STICK ZST10 700 |
|---|
| Short Description | The ZST10 700 series is a Z-Wave™ USB dongle that allows you to add Z-Wave™ to a DIY smart home set-up. |
|---|
| Long Description | FEATURES:
- Z-Wave Plus™ Static USB Controller
- Latest S2 security protocol for a truly private network
- Works with SmartStart Z-Wave™ devices
- NEW 700 chip for better performance than ever
- Extended range up to 2500 feet in open space
- Faster, more secure, and lower power than 500 series
- LED indicator signals wireless communication in progress for efficient troubleshooting
- No drivers needed: works out of the box on Windows, Linux, and MAC OS
SPECS:
- Model Number: ZST10 700
- Z-Wave™ Frequency: 908.42 MHz
- Power: 4.75-5.25 VDC
- SDK: 7.13
- Range: Up to 400 feet indoors
- Operating Temperature: 14-104° F
- Installation and Use: Indoor only
- Dimensions: 3.5” x 1” x 0.4” |
|---|
| Brand | Zooz |
|---|
| Product Identifier | ZST10 700 |
|---|
| Product Line | 5P |
|---|
| OEM Version | HW: 0 FW: ERROR |
|---|
| Hardware Platform | ZGM130 |
|---|
| Z-Wave Version | 7.15.1 |
|---|
| Library Type | CONTROLLER_BRIDGE |
|---|
| Device Type | Hardware Device |
|---|
| Role Type | ROLE_TYPE_N/A_--_USB_STICK |
|---|
| Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
| Categories | All Controllers, Gateway Controller |
|---|
| Countries / Regions | United States of America |
|---|
| Documents | |
|---|
| Texts | | ID | Description | Value |
|---|
| 5 | Factory Reset Procedure | The S2 stick can only be reset by the host software while it’s in SerialAPI mode. The device is reset once an appropriate command from the host software is sent to reset the Z-Wave network.
There is no way to manually reset the S2 stick if it’s not controlled by host software. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
